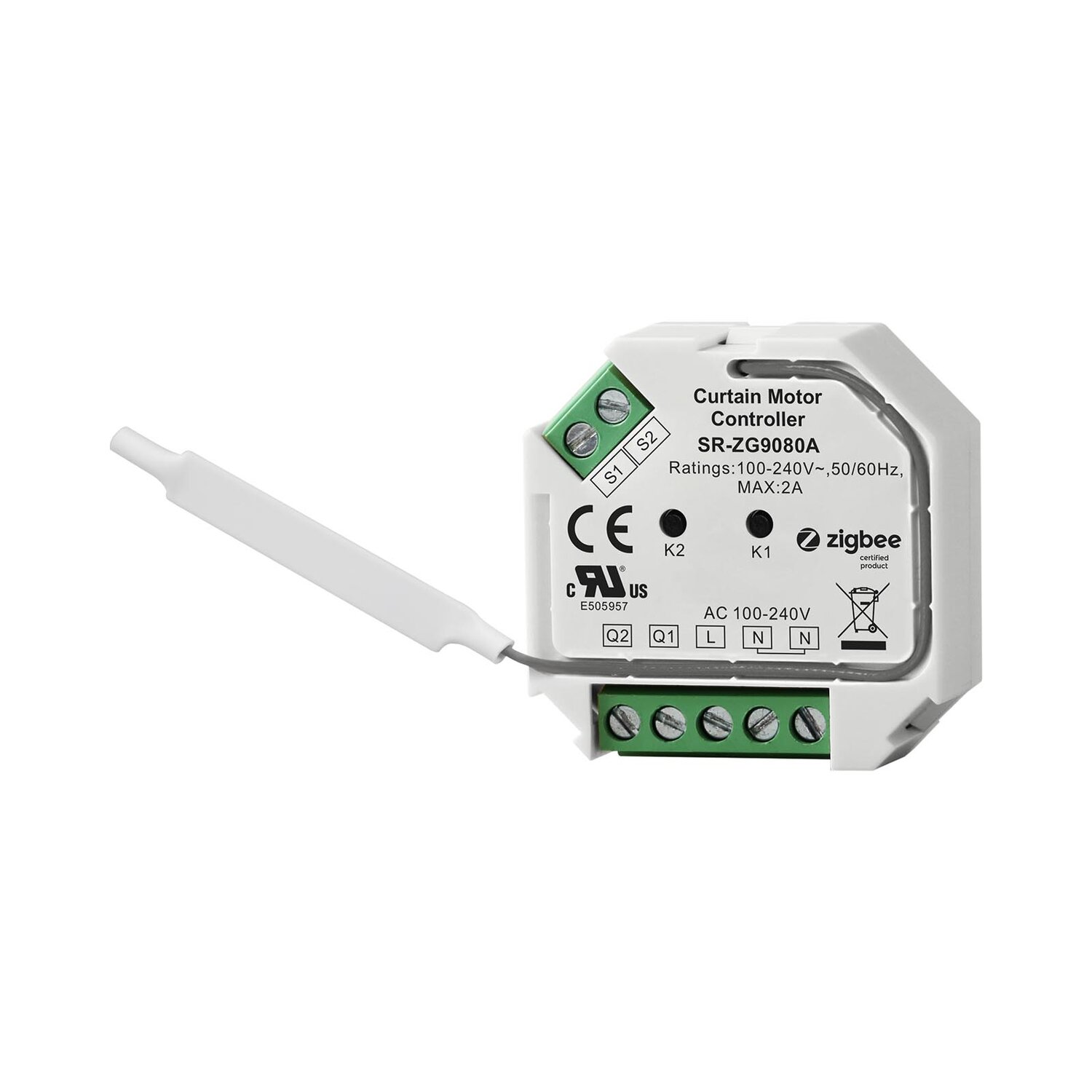

Product Description. Based on latest ZigBee 3.0 protocol, this Zigbee curtain motor controller supports various curtain types: roller blinds, shutter blinds, drapes, etc.
, and is controlled by smart app or directly by Zigbee remote. Even it is not added to a Zigbee network, it can control external switches locally.
With accurate control, this controller supports both ON/OFF and level control. Besides, this ZigBee end device can support Touchlink commissioning, support self-forming Zigbee network without coordinator, support find and bind mode to bind a Zigbee remote, and support Zigbee green power feature and can bind max. 20 Zigbee green power remotes.
| Zigbee Protocol | Zigbee 3.0 |
|---|---|
| Input Voltage | AC100-240V |
| Output Voltage | AC100-240V |
| Operating Max. Load Current Temperature | 2A |
| Operating Max. Load Current Temperature | 0 to 40℃ |
| Relative Humidity | 8% to 80% |
| Dimension (LxWxH) | 45.5x45x20.3mm |
