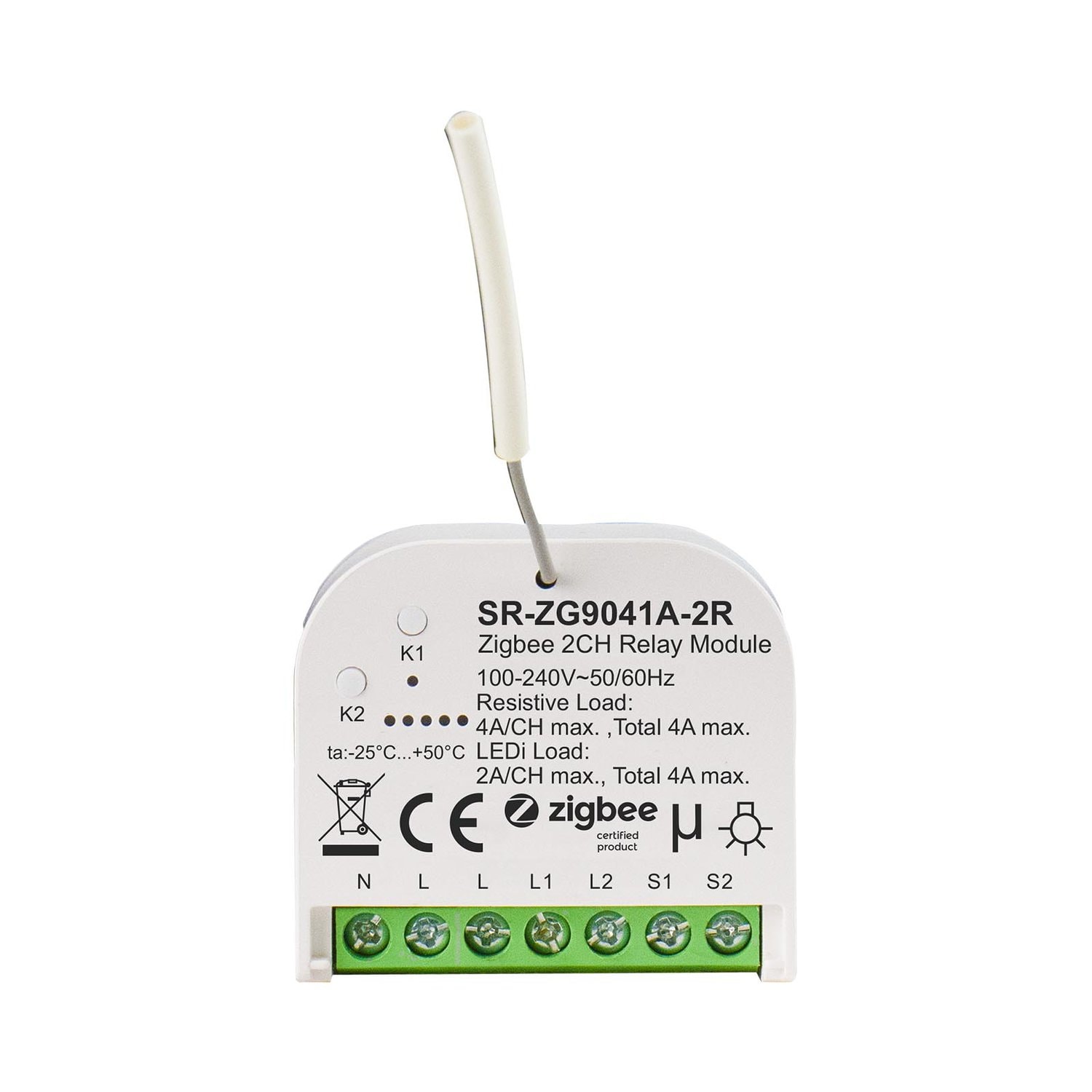

ZigBee 2CH Smart Relay and Curtain Control Module

SR-ZG9041A-2R

Product description

2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol
Device type can change between 2 channels relay and curtain controller by manual way or Azoula APP
Enables to control ON/OFF of connected load
ZigBee device with 2 endpoints which can be controlled separately
ZigBee end device that supports Touchlink commissioning
Supports zigbee green power and can bind max. 20 zigbee green power switches
Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
Compatible with different push button types, such as momentary switches and rocker
Active power and energy metering functionality
Mini Size, Easy to be installed into a standard wall box
Over load protection

This 2-gang ZigBee in-wall switch (ZigBee 3.0) offers dual-function mode—relay or curtain controller—configurable via manual setup or Azoula app. It supports independent control of two channels, Touchlink pairing, and binding with up to 20 ZigBee Green Power switches. Compatible with various push button types, it features energy metering, overload protection, and a compact design for easy installation in standard wall boxes.

Operation Voltage	100-240VAC
Max. Load Current	L1/L2: Inductive load: 2A max. Capacitive load: 2A max. Resistive load: 4A max. L1+L2: 4A max.
Overcurrent Protection	Max. 5A
Standby Power Consumption	<=0.5W
Size(LxWxH)	42x38x16mm
