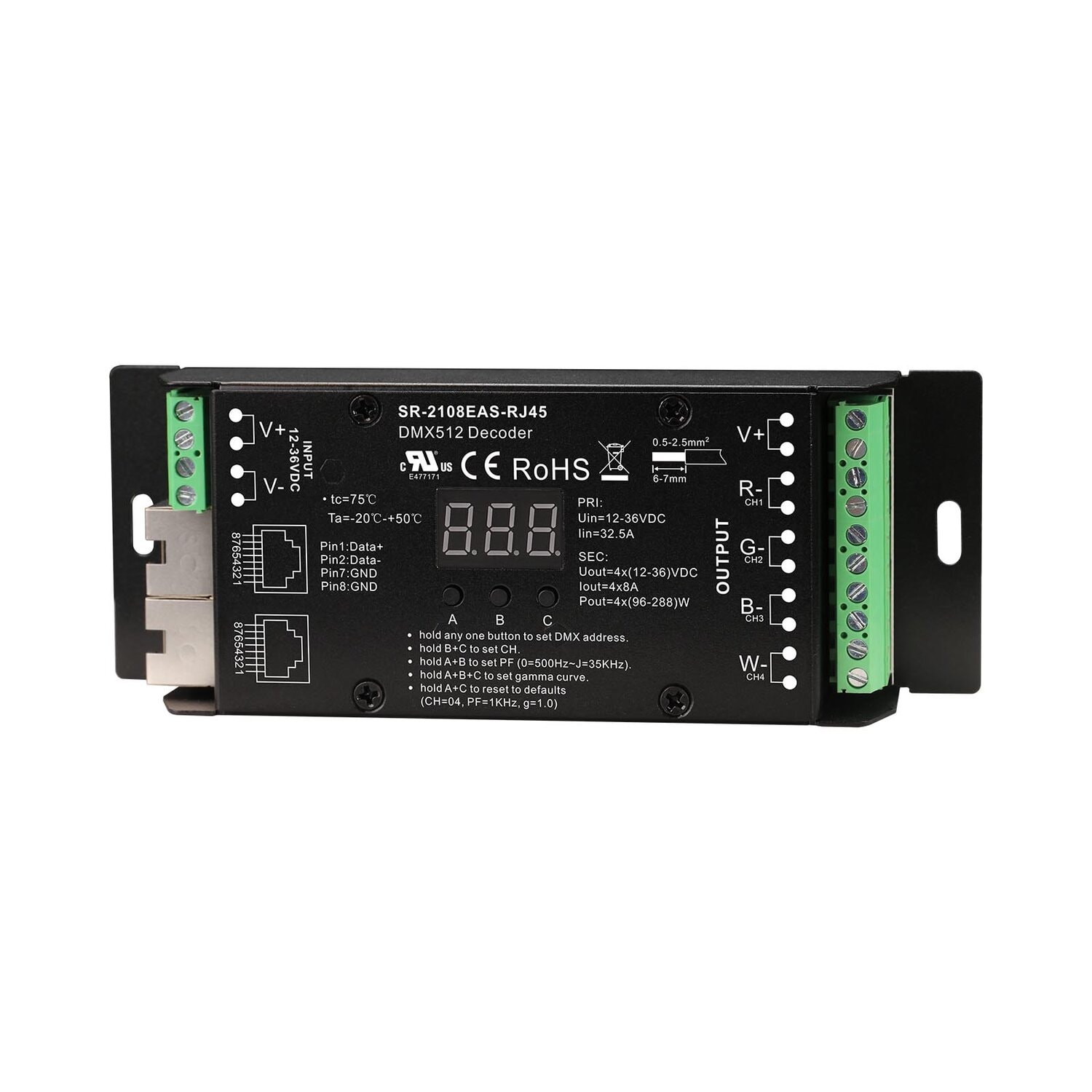

SR-2108EAS-RJ45 is a 4 channels constant voltage DMX & RDM controller that supports real 16 bit PWM resolution. The DMX controller is designed with both master mode and slave mode which are easy to switch.
It features full support to the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols. The DMX decoder is designed with 4 channels, 8A per channel constant voltage output and available in 12VDC, 24VDC and 36VDC.
The DMX controller is designed with easy wiring terminals that do not require screws.
| No | 1 |
|---|---|
| Input Voltage | 12-36VDC |
| Output Current | 4x8A |
| Output Power | 4x(96-288)W |
| Remarks | Constant voltage |
| Size(LxWxH) | 165x60x32mm |
