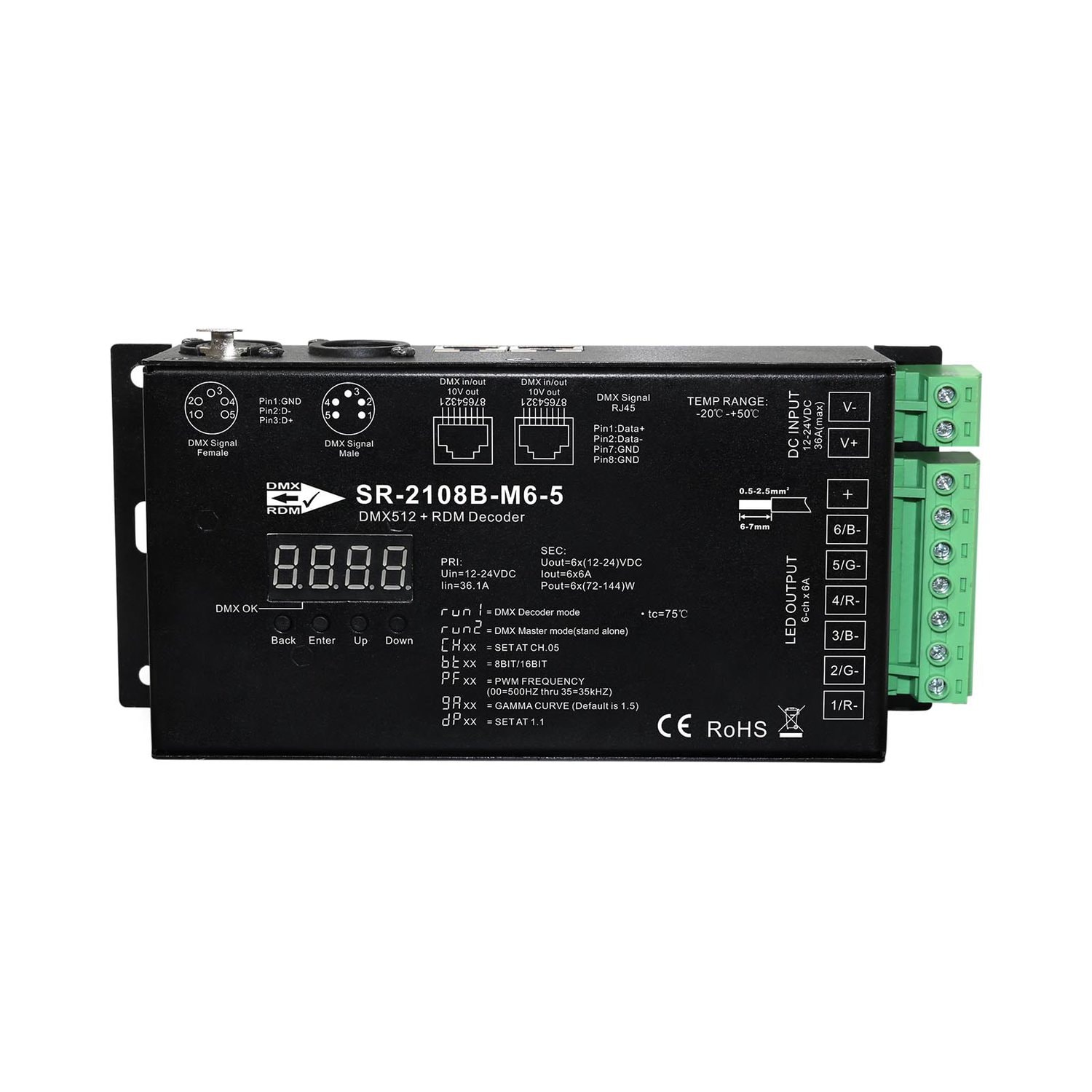

Product Description. This Ultra-Pro 6CH RDM DMX512 Decoder is with master & decoder mode and RDM function. By virtue of metal housing and digital display, it can show data directly, and set and show DMX address easily. This deice is with multiple kinds of DMX in/out ports: RJ 45, XLR , normal screws. It has a total of 6 PWM output channels, and common anode. DMX channel quantity can be set as 1CH or 6CH. PWM output resolution ratio can be set as 8bit , 16 bit. With settable decoding mode, its output PWM frequency can be set from 500Hz to 35KHz, and the output dimming curve gamma value can be set from 0.1 to 9.9.
| Input Voltage | 12-24VDC | 12-48VDC | 12-48VDC |
|---|---|---|---|
| Output Current | 6x6A | 6x350mA | 6x700mA |
| Output Power | 6x(72-144)W | 6x(4.2-16.8)W | 6x(8.4-33.6)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 187.7×85.3x41mm | 187.7×85.3x41mm | 187.7×85.3x41mm |
