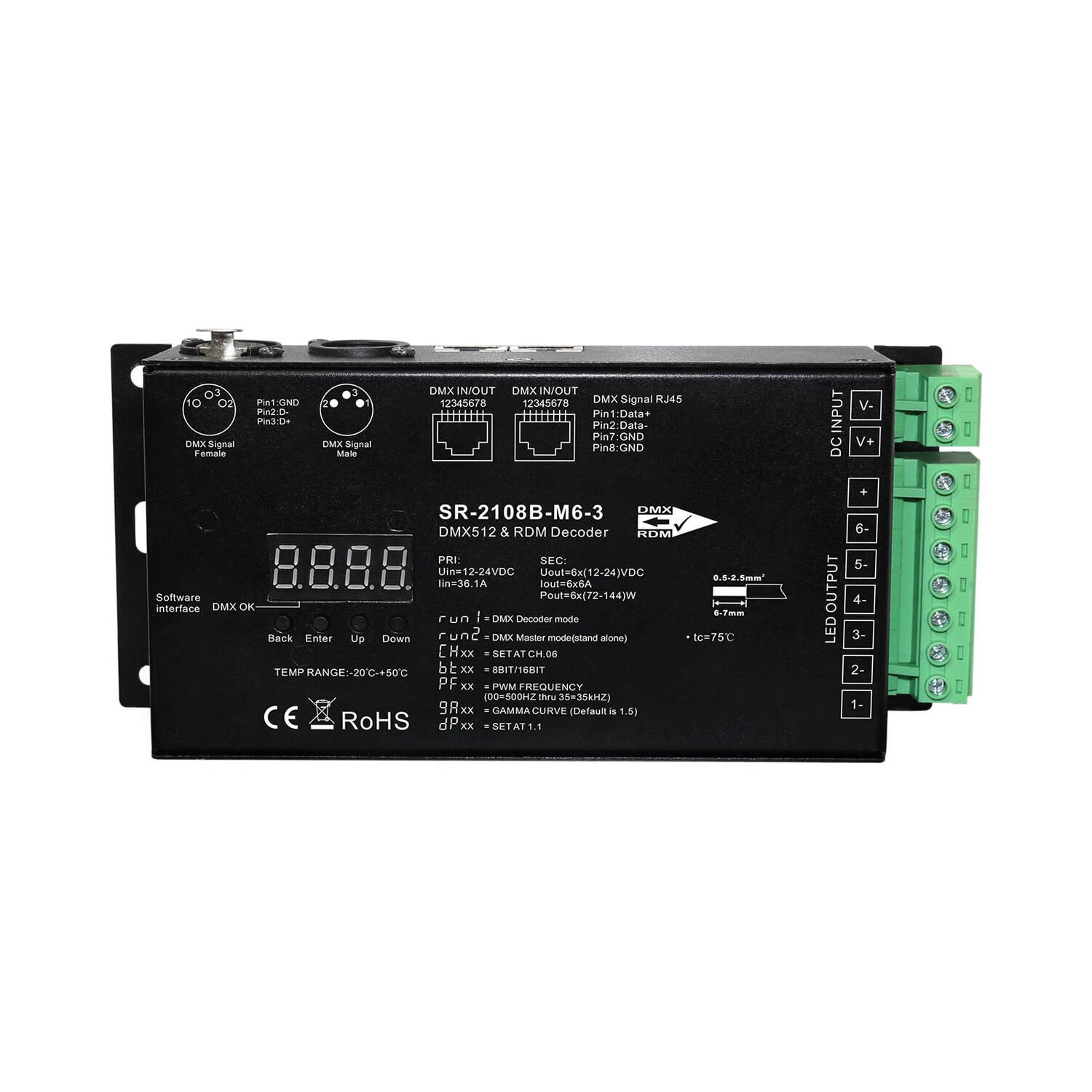

Ultra-Pro 6CH RDM DMX512 Decoder

SR-2108B-M6-3

Product description

Master & decoder mode, RDM function
Metal housing, digital display to show data directly, easily to set and show DMX address.
With multiple kinds of DMX in/out ports: RJ 45, XLR, normal screws.
Total 6 PWM output channels, common anode. DMX channel quantity 1CH or 6CH settable
PWM output resolution ratio 8bit, 16bit settable.
Output PWM frequency from 500Hz ~ 35KHz settable.
Output dimming curve gamma value from 0.1 ~ 9.9 settable.
Decoding mode settable.
Galvanic isolation

The Ultra-Pro 6CH RDM DMX512 Decoder supports both master and decoder modes with RDM functionality, housed in a metal enclosure with a digital display for direct data viewing and easy DMX address configuration. It includes multiple DMX input/output options such as RJ45, XLR, and screw terminals, and offers six common anode PWM output channels with selectable DMX channel modes of 1CH or 6CH. Users can configure the PWM resolution to 8-bit or 16-bit, set the output frequency between 500Hz and 35kHz, adjust the gamma dimming curve from 0.1 to 9.9, and define the decoding mode, with galvanic isolation ensuring signal integrity.

Input Voltage	12-24VDC	12-48VDC	12-48VDC
Output Current	6x6A	6x350mA	6x700mA
Output Power	6x(72-144)W	6x(4.2-16.8)W	6x(8.4-33.6)W
Remarks	Constant voltage	Constant current	Constant current
Size(LxWxH)	187.7×85.3x41mm	187.7×85.3x41mm	187.7×85.3x41mm
