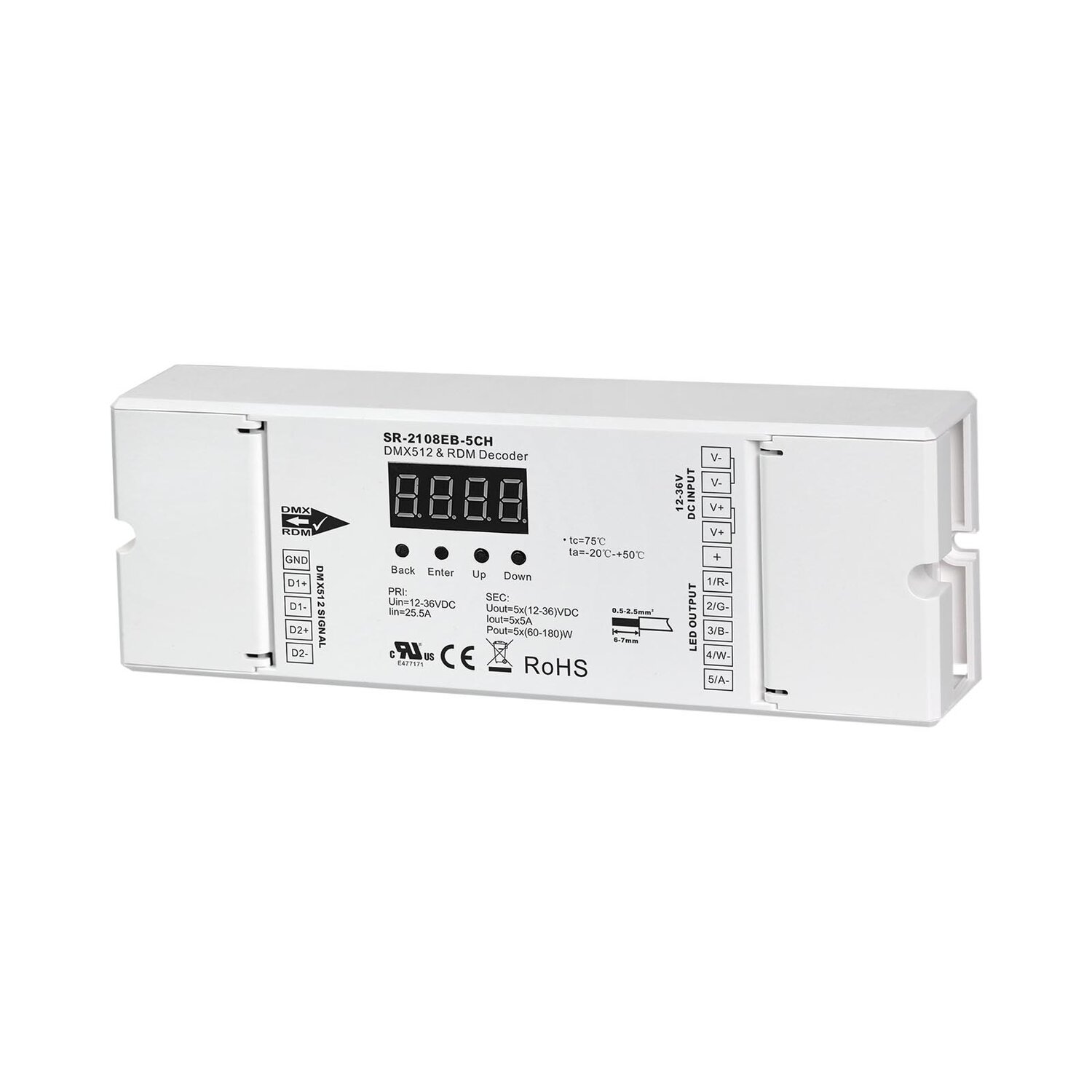

Ultra-Pro 5CH RDM DMX512 Decoder

SR-2108EB-5CH

Product description

DMX512 RDM decoder, RDM function can realize intercommunication between DMX master and decoder.
Total 5 PWM output channels, common anode. DMX channel quantity from 1CH~5CH settable
PWM output resolution ratio 8bit, 16bit settable.
Output PWM frequency from 500HZ ~ 35K HZ settable.
Output dimming curve gamma value from 0.1 ~ 9.9 settable.
Decoding mode settable.
Galvanic isolation

SR-2108EB-5CH is a 5 channels constant voltage DMX & RDM controller that supports real 16 bit PWM resolution. The DMX controller is designed with both master mode and slave mode which are easy to switch.
It features full support to the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols. The DMX decoder is designed with 4 channels, 8A per channel constant voltage output and available in 12VDC, 24VDC and 36VDC.
The DMX controller is designed with easy wiring terminals that do not require screws.

Input Voltage	12-36VDC
Output Current	5x5A
Output Power	5x(60-180)W
Remarks	Constant voltage
Size(LxWxH)	170x59x29mm
