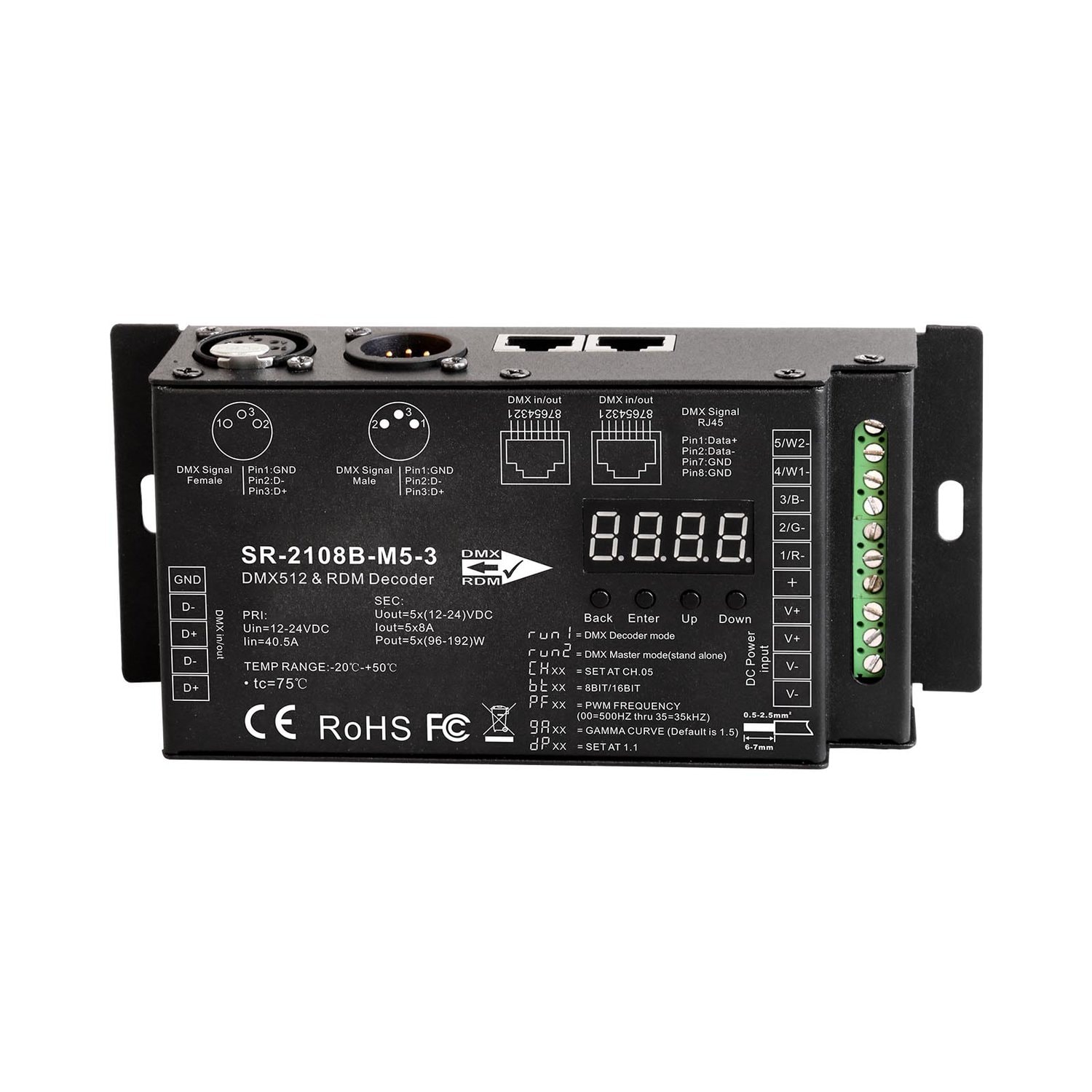

Ultra-Pro 5CH RDM DMX512 Decoder

SR-2108B-M5-3

Product description

Master & decoder mode, RDM function
Metal housing, digital display to show data directly, easily to set and show DMX address.
With multiple kinds of DMX in/out ports: RJ 45, XLR, normal screws.
Total 5 PWM output channels, common anode. DMX channel quantity from 1CH~5CH settable
PWM output resolution ratio 8bit, 16bit settable.
Output PWM frequency from 500HZ ~ 35K HZ settable.
Output dimming curve gamma value from 0.1 ~ 9.9 settable.
Decoding mode settable.
Galvanic isolation

The Ultra-Pro 5CH RDM DMX512 Decoder features both master and decoder modes with RDM functionality, housed in a metal casing with a digital display for direct data viewing and DMX address configuration.
It supports multiple DMX input/output interfaces including RJ45, XLR, and screw terminals, and provides five common anode PWM output channels with selectable DMX channel modes from 1CH to 5CH.
The device allows setting PWM resolution to 8-bit or 16-bit, output frequency from 500Hz to 35kHz, gamma dimming curve from 0.1 to 9.9, and decoding modes, with galvanic isolation for signal separation.

Input Voltage	12-24VDC	12-48VDC	12-48VDC
Output Current	5x8A	5x350mA	5x700mA
Output Power	5x(96-192)W	5x(4.2-16.8)W	5x(8.4-33.6)W
Remarks	Constant voltage	Constant current	Constant current
Size(LxWxH)	164x73x38mm	164x73x38mm	164x73x38mm
Protection	Short circuit	Short circuit	Short circuit
