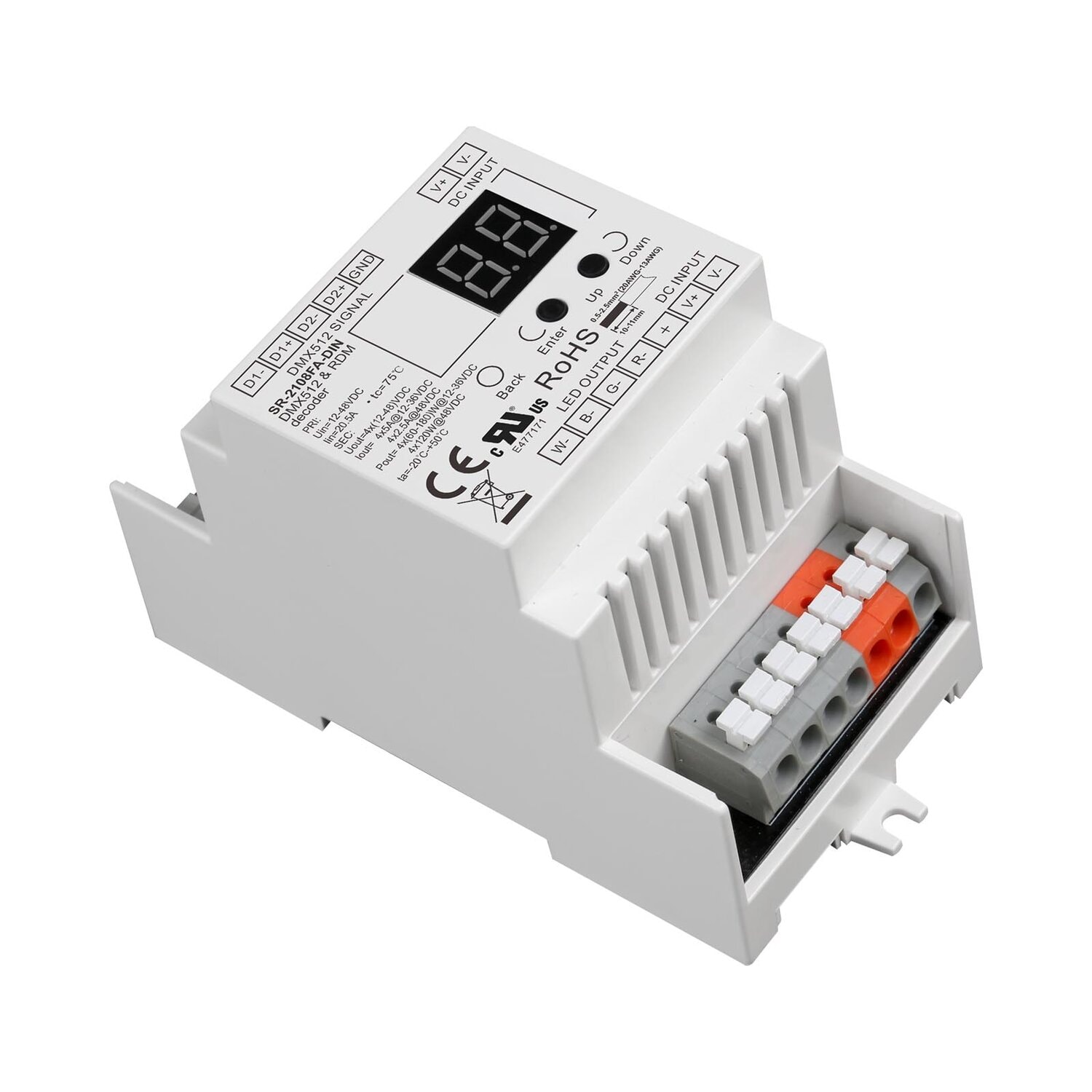

The Ultra-Pro 4CH RDM DMX512 Decoder features RDM functionality that enables communication between the DMX master and the decoder. It has a digital display for easy viewing and setting of the DMX address. The device provides a total of 4 PWM output channels with a common anode configuration, and the DMX channel quantity can be set from 1CH to 4CH. The PWM output resolution can be adjusted between 8bit and 16bit, and the output PWM frequency is configurable from 500Hz to 35kHz. Additionally, the output dimming curve gamma value can be set between 0.1 and 9.9, with a settable decoding mode. The decoder is designed for DIN rail installation, making it convenient for use in various setups.
| No. | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Input Voltage | 12-36VDC | 48VDC | 12-48VDC | 12-48VDC |
| Output Current | 4x5A | 4×2.5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x120W | 4x(4.2-16.8)W | 4x(8.4-33.6)W |
| Remarks | Constant voltage | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 110x53x65mm | 110x53x65mm | 110x53x65mm | 110x53x65mm |
