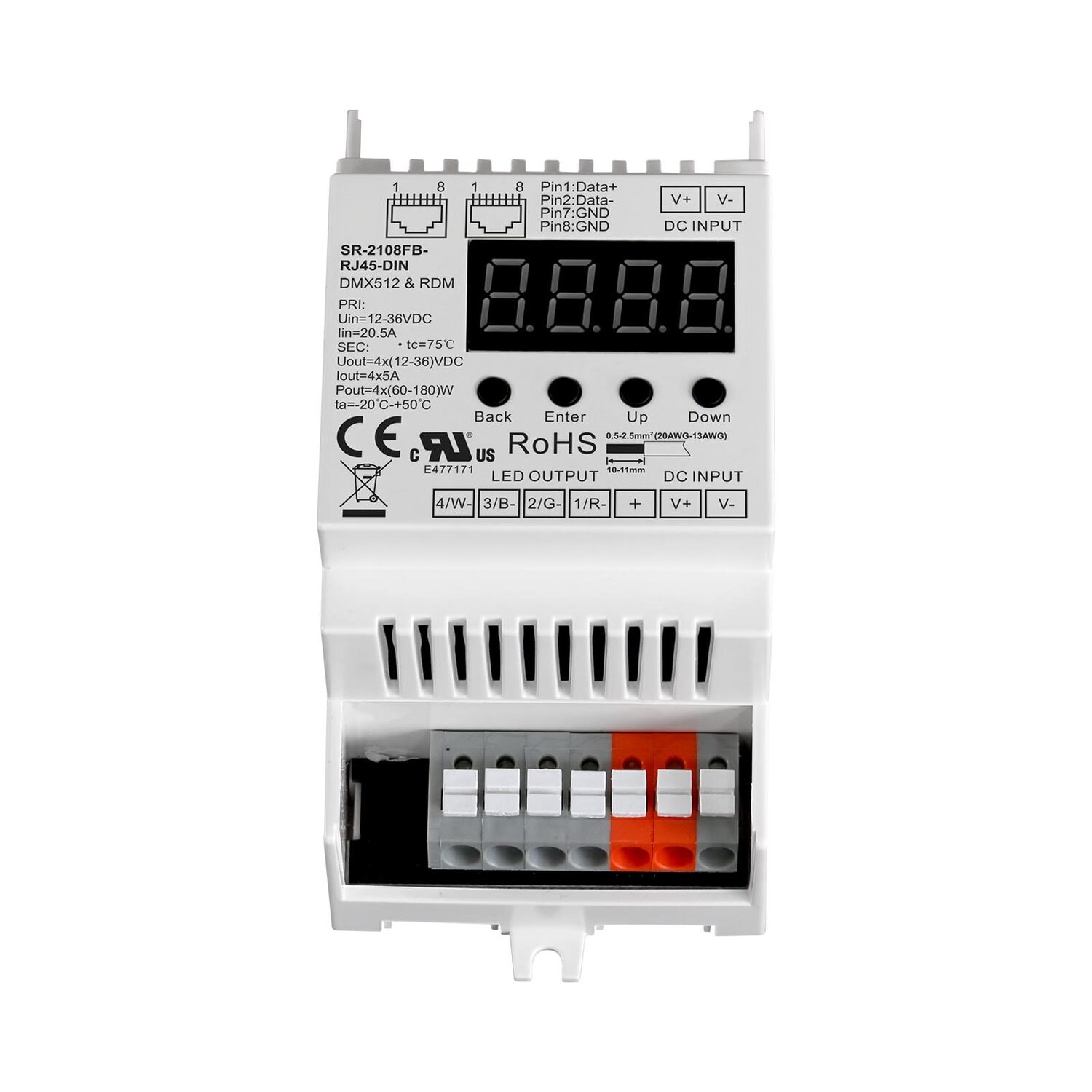

The Ultra-Pro 4CH RDM DMX512 Decoder operates in both DMX decoder and master modes, featuring RDM functionality for communication between DMX master and decoder, a digital display for easy setting and viewing of DMX addresses, four common anode PWM output channels with selectable DMX channels from 1CH to 4CH, adjustable PWM output resolution of 8bit or 16bit, PWM frequency from 500Hz to 35KHz, configurable dimming curve gamma values between 0.1 and 9.9, settable decoding modes, and includes two RJ45 ports for DMX signal input and output to ensure easy wiring and stable data transmission, designed for DIN rail installation.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-48VDC | 12-48VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-16.8)W | 4x(8.4-33.6)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 110x53x65mm | 110x53x65mm | 110x53x65mm |
