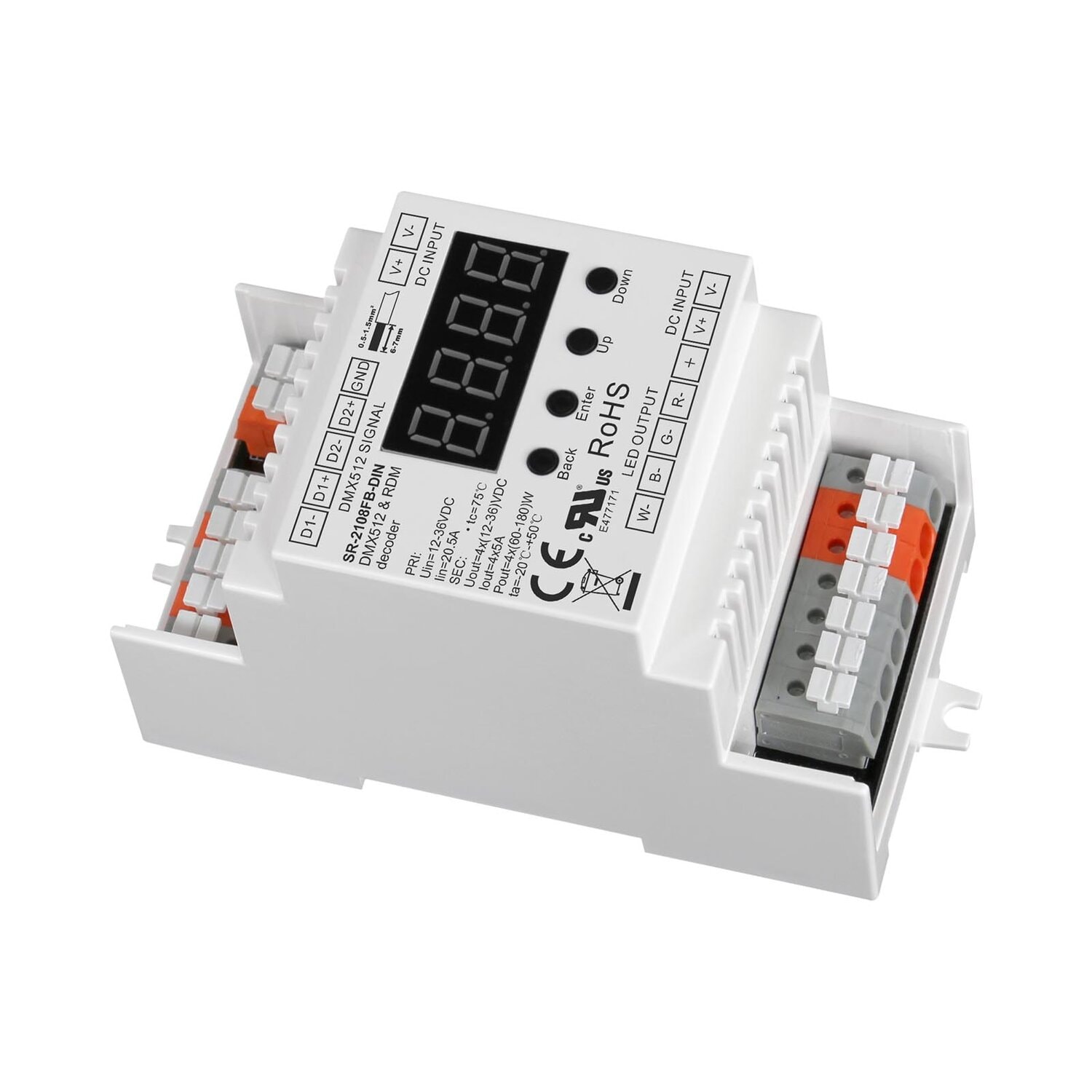

The Ultra-Pro 4CH RDM DMX512 Decoder supports both DMX decoder and master modes, with RDM functionality enabling communication between the DMX master and decoder.
It features a digital display for direct data viewing and easy DMX address configuration, and offers four common anode PWM output channels with selectable DMX channel modes from 1CH to 4CH.
The output resolution can be set to 8-bit or 16-bit, PWM frequency is adjustable from 500Hz to 35KHz, and the dimming curve gamma value can be set from 0.1 to 9.9. The decoding mode is also configurable, and it is designed for DIN rail mounting.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-48VDC | 12-48VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-16.8)W | 4x(8.4-33.6)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 110x53x65mm | 110x53x65mm | 110x53x65mm |
