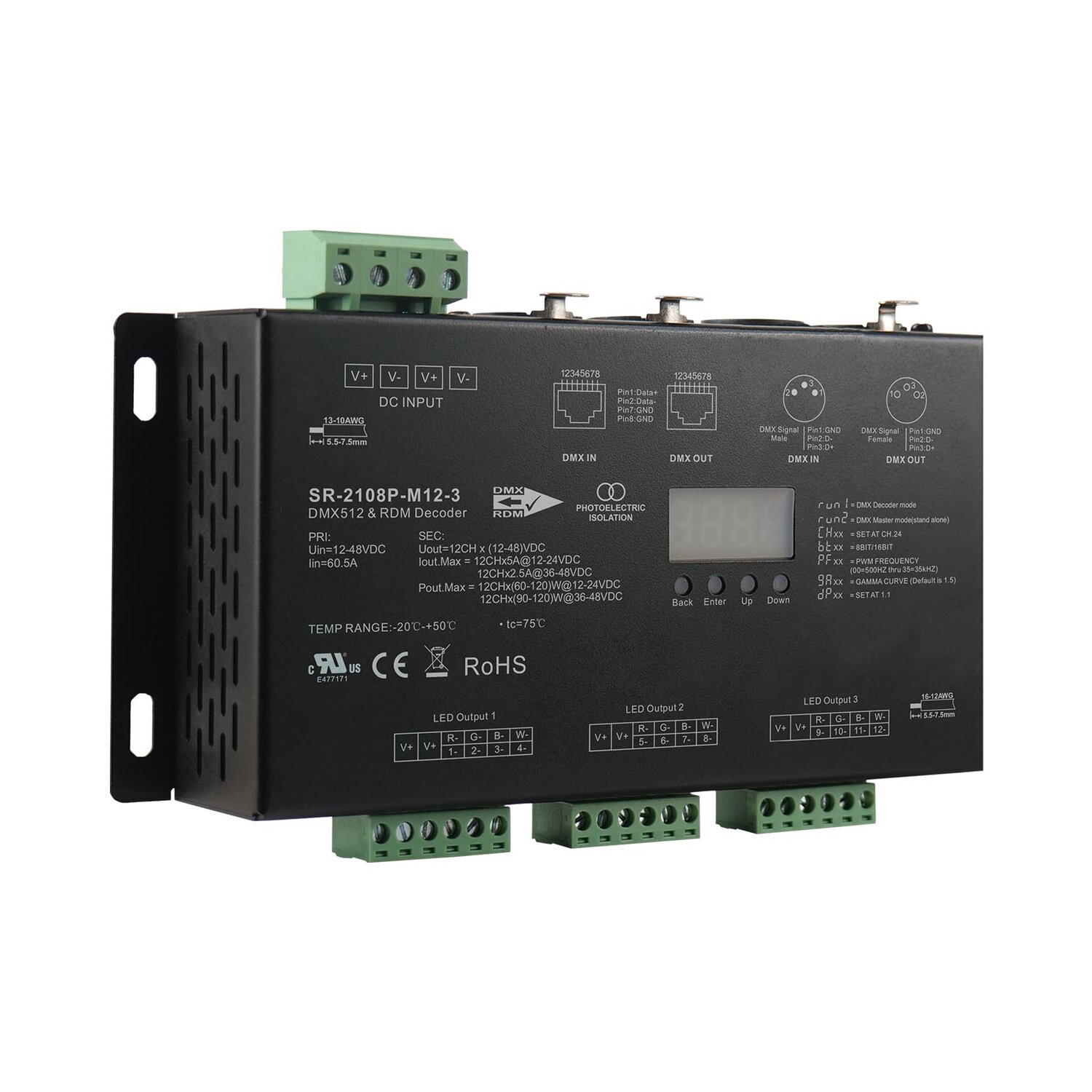

The Ultra-Pro 12CH RDM DMX512 Decoder operates in both master and decoder modes, featuring RDM functionality for enhanced control. It has a durable metal housing and a digital display that allows for easy viewing and setting of the DMX address. The device offers multiple DMX input and output ports, including RJ45 and XLR3/5 connectors. With a total of 12 PWM output channels configured in a common anode setup, users can set the DMX channel quantity to 1CH, 4CH, 6CH, or 12CH. The PWM output resolution is adjustable between 8bit and 16bit, while the output PWM frequency can be set between 500Hz and 35kHz. Additionally, the dimming curve gamma value is adjustable from 0.1 to 9.9, and the decoding mode is also settable. The unit features galvanic isolation for improved performance and safety.
| Input Voltage | 12-48VDC |
|---|---|
| Output Current | 12CHx5A@12-24VDC 12CHx2.5A@36-48VDC |
| Output Power | 12CHx(60-120)W@12-24VDC 12CHx(90-120)W@36-48VDC |
| Remarks | Constant voltage |
| Size(LxWxH) | 197.2×92.2xmm |
| Protection | Short circuit |
