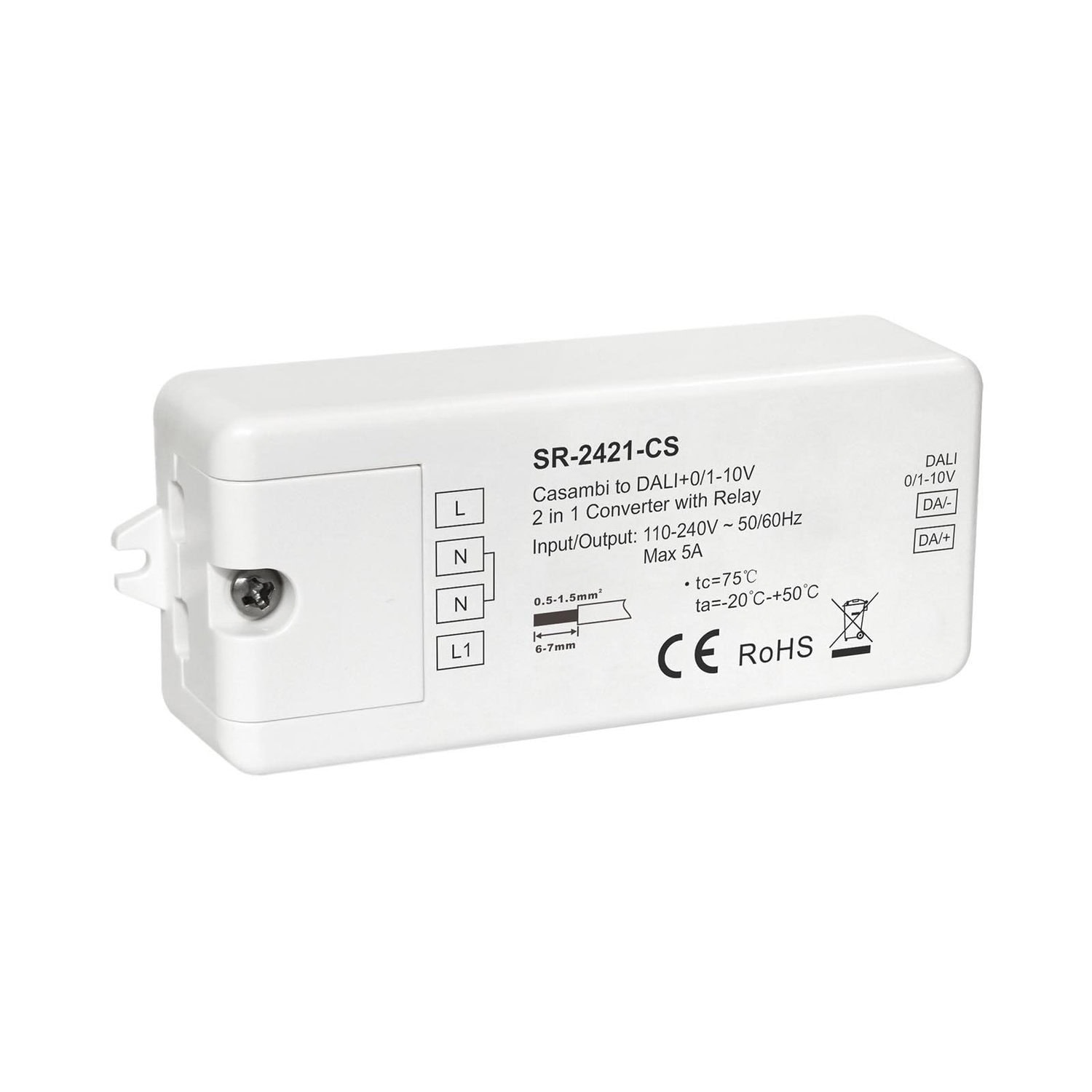

Standalone Casambi to DALI + 0/1-10V Controller

SR-2421-CS

Product description

Casambi to DALI+0/1-10V controller, works with Casambi network
Casambi signal input, DALI output to DALI line or 0/1-10V signal output, 110-240VAC power input
With relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load
Can be controlled by both Casambi App and Casambi wall switches
DALI signal or 1-10V signal output selectable by Casambi App
DALI DT6, DALI DT8 TW, DALI DT8 XY, DALI DT8 RGBW, 0-10V control modes configurable by Casambi App
Built-in DALI bus power supply, no extra DALI bus PS required
With max. 50mA DALI bus power current output
To supply control current to up to 25 DALI control gears
Easy commissioning with Casambi App

SR-2421-CS is a BLE DALI interface & BLE 0-10V/1-10V interface that receives Casambi BLE signal and converts the Casambi wireless signal to DALI and 0-10V/1-10V.

Input	Power	110-240VAC
	Signal	Casambi 2.4GHz
Output, DALI	DALI PS current	Max.50mA
	DALI current consumption	Max. 4mA
Output, 0/1-10V	Current	Max. 20mA
Output, relay	Switching voltage	110-240VAC
	Max. Current	Incandescent: 5A LED: 1.6A
Environment	Operating temperature	-20℃-+50℃
	Relative humidity	8% to 80%
Others	Dimensions	95x37x20mm
