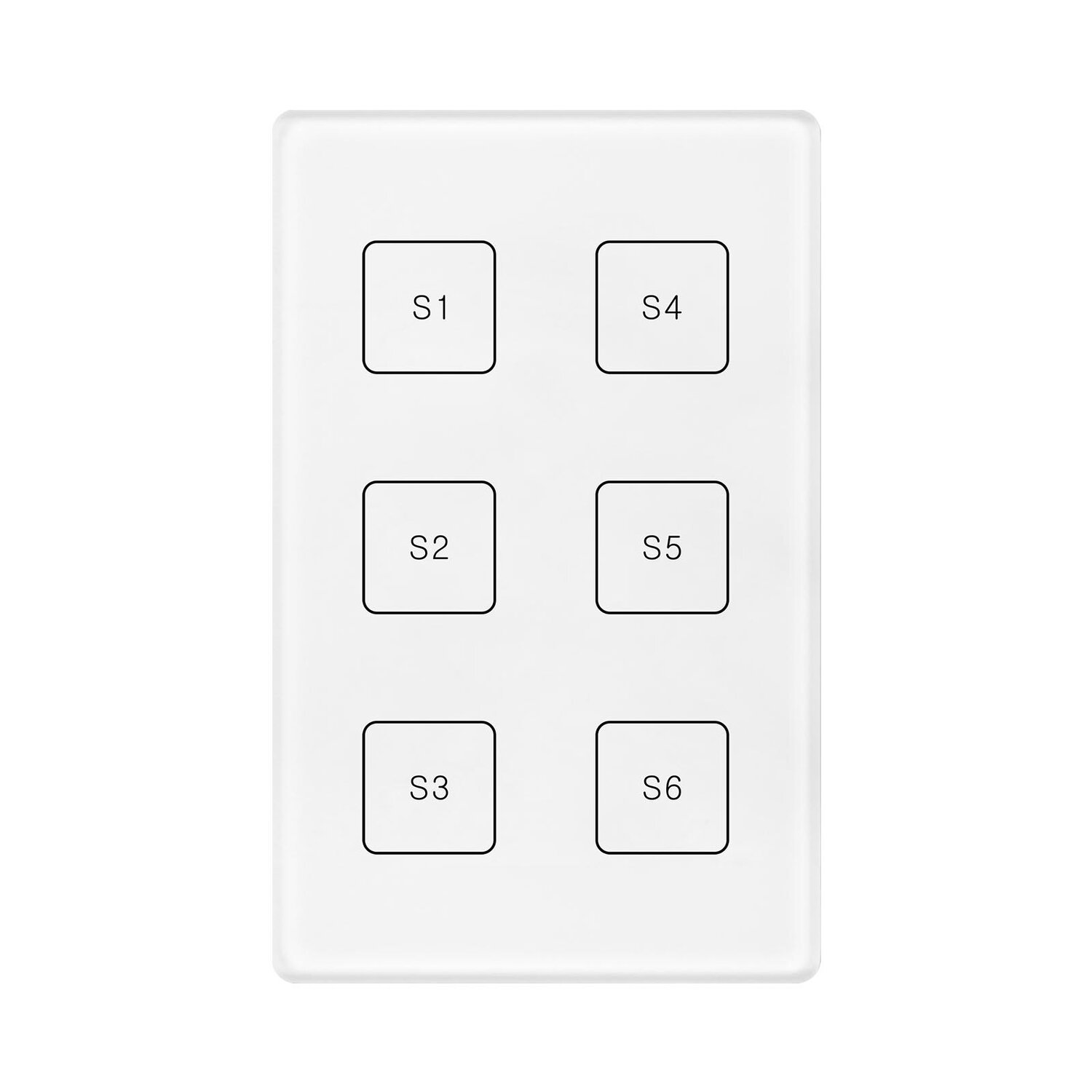

This DALI touch panel controller enables Group selection commands to be sent to One Group of devices on the DALI circuit for Scene control. A rotary switch on the back is used to select Group you would like to control and set the starting Group number, and total 16 Groups (0-15) can be selected
| Output | DALI signal |
|---|---|
| Power Supply | Supply By DALI Bus |
| Operation Current | 4mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 75x120x29.1mm |
| Waterproof grade | Ip20 |
