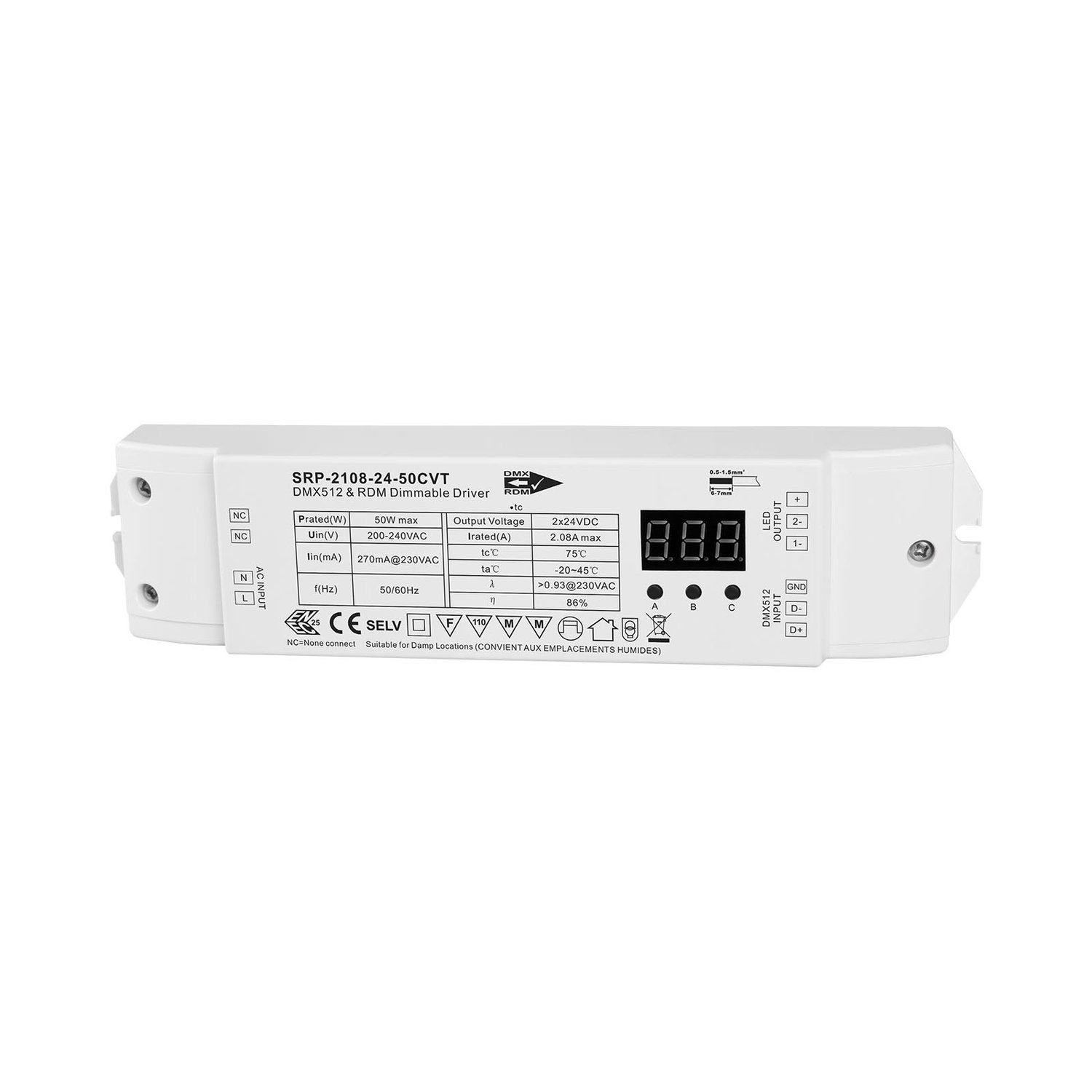

The RDM Enabled 50W CV DMX LED Driver is a dimmable LED driver with a maximum output power of 50W, featuring a standard DMX512 compliant control interface and RDM functionality for intercommunication between the DMX master and decoder, allowing DMX address assignment via the master console, with 2 PWM output channels, common anode, 12/24V constant voltage output, a Class II fully isolated plastic case, high power factor and efficiency, suitable for controlling tunable white and single color LED lighting, equipped with a digital display for easy setting and viewing of DMX addresses, supporting 1 to 2 DMX channels, adjustable PWM output frequency from 500Hz to 35kHz, and customizable dimming curve gamma values from 0.1 to 9.9.
| Output | DC Voltage | 12V DC | 24V DC |
|---|---|---|---|
| Output | Max. Current | Max. 4.16A/ch, ch1+ch2=4.16A | Max. 2.08A/ch, ch1+ch2=2.08A |
| Output | Rated Power | max. 50W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency | 50/60Hz | |
| Input | Power Factor (Typ.) | >0.93 | |
| Input | Efficiency (Typ.) | 86% @ 230VAC | |
| Input | Input Current (Typ.) | 0.27A @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START Max. 2A at 230VAC | |
| Control | Dimming Interface | DMX512 (RDM enabled) | |
| Control | Dimming Range | 0.1%-100% | |
| Control | Dimming Method | Pulse Width Modulation | |
| Control | Dimming Curve | Linear, Logarithmic | |
| Protection | Over Voltage | Yes, auto recovery after fault removed | |
| Protection | Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 75℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 190100H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature | |
| Others | Dimension | 210*50*32mm (L*W*H) |
