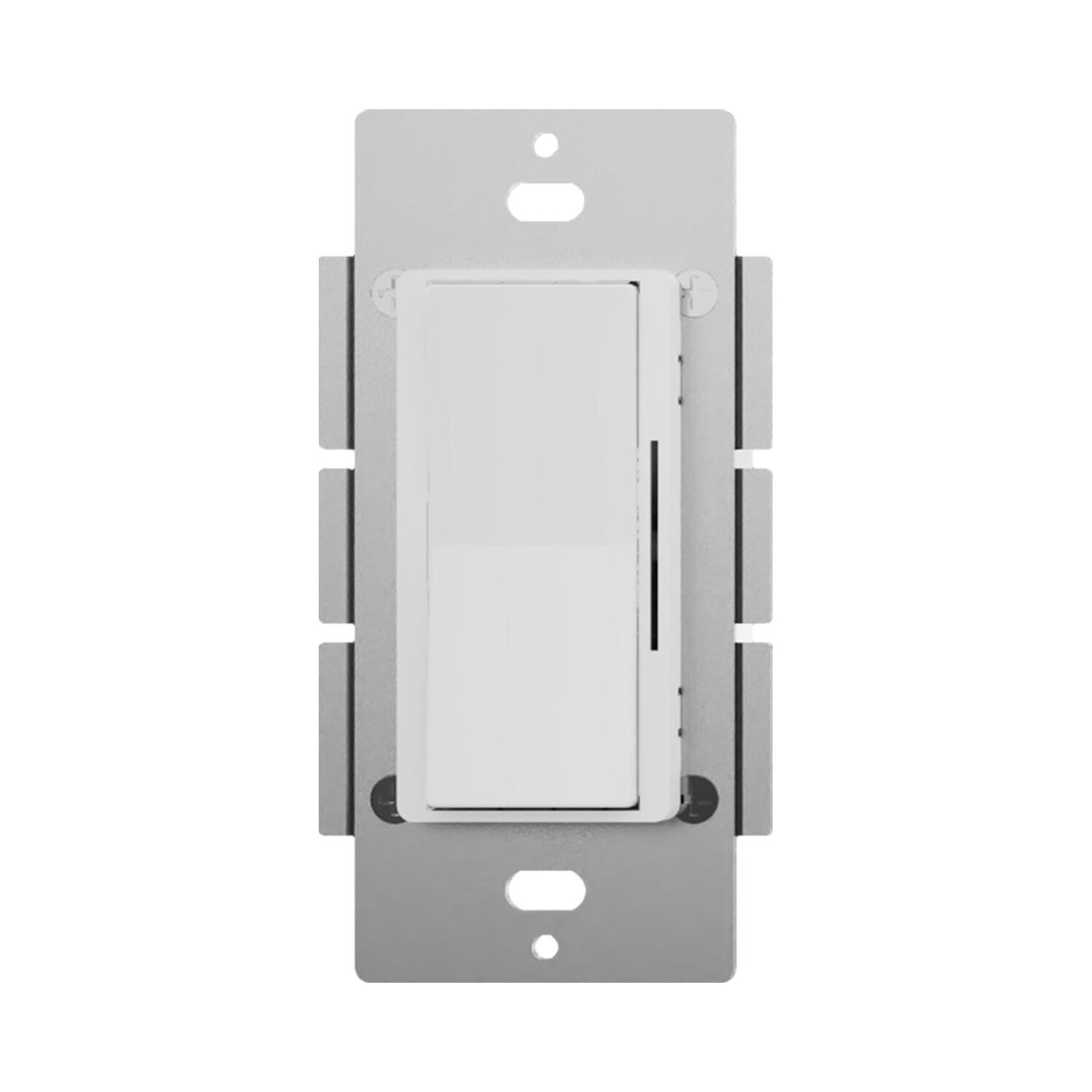

The Push Compatible ZigBee Keypad Smart Dimmer is a ZigBee 3.0-based smart dimmer that works with or without neutral wiring, automatically adapting to the installation type. It supports resistive, capacitive, and inductive loads and allows users to set the minimum brightness and startup brightness. With a single channel output of up to 300W, it offers both leading-edge and trailing-edge versions, preset by the factory. The dimmer enables control of ON/OFF and light intensity of connected light sources and can be controlled via a ZigBee gateway, remote, or a local rotary knob. It supports Touchlink commissioning for direct pairing with a compatible ZigBee remote and can form a self-organizing ZigBee network without a coordinator. The device also supports ZigBee Green Power, allowing binding with up to 20 green power switches. It features a push switch input for control with universal AC push switches and is compatible with existing US standard frames and junction boxes for easy installation. With a radio frequency of 2.4GHz, this smart dimmer ensures versatile integration with ZigBee networks.
| Input Voltage | 120VAC |
|---|---|
| Output Voltage | 120VAC |
| Output Current | 2.5Amax |
| Size(LxWxH) | 105.5×54.7×40.03mm |
| Ambient Temperature | -20°C~+50°C |
