Push Button Single Color DALI Controller

SR-2422K4-G1-S4

Product description

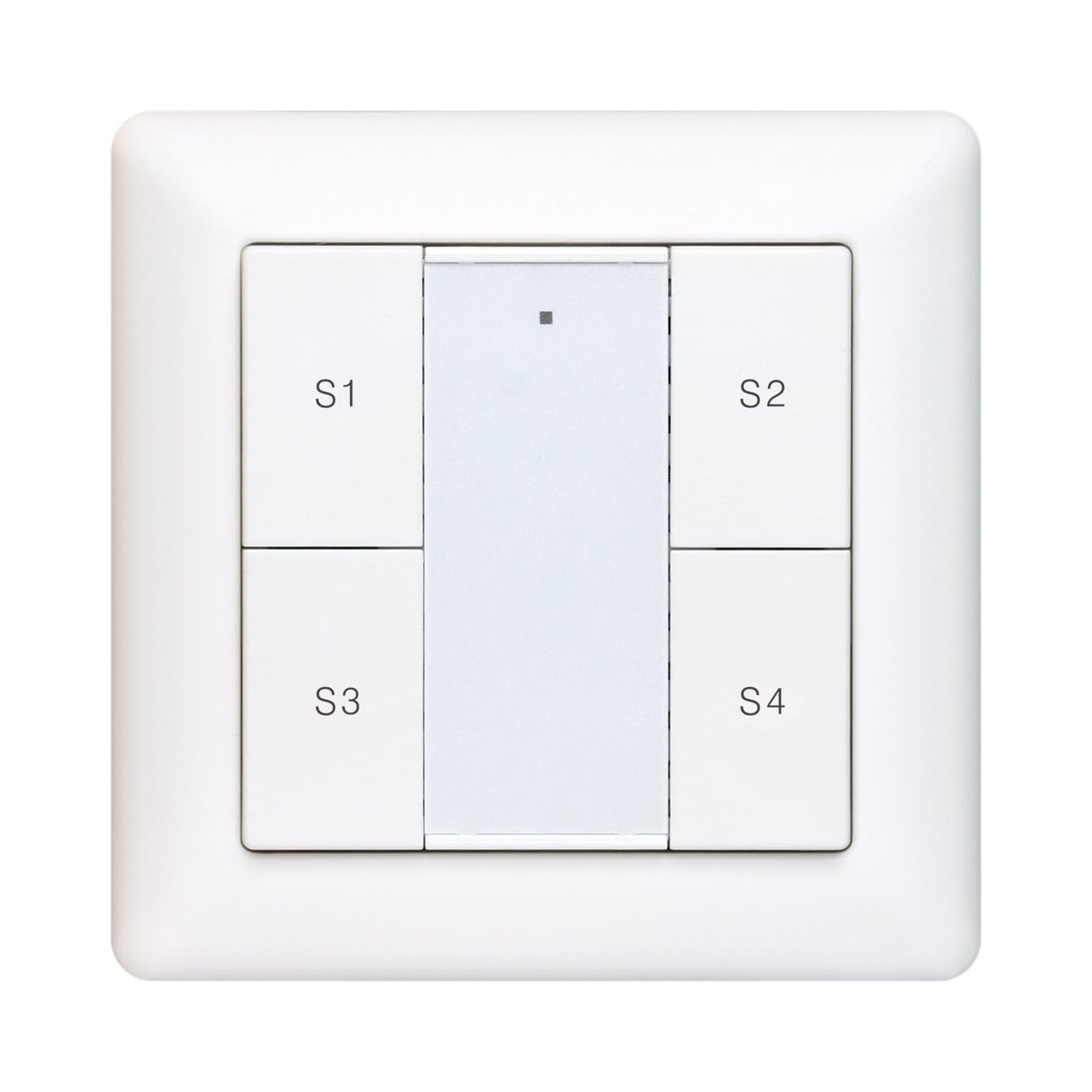

Single Color Push Button DALI Control Panel
4 Button Design with Scene Control
Control 4 Scene Addresses
Control of All DALI Devices on the circuit through Broadcast
Enable to Set Start Group Number and Scene Number Manually by 2 Rotary Switches on the back
4 predefined scenes can be assigned and recalled to the selected group
Easy to Use, No Configuration by Computer Required
Compatible with All Universal DALI Masters
Easy Installation, Compatible with Existing Standard Size Frames

The Push Button Single Color DALI Controller is a DALI push button scene controller powered by the DALI bus without the need for an external power supply, allowing multiple controllers on each DALI bus channel, enables selection and control of one DALI group from 16 groups and four DALI scenes from 16 scenes, and is compatible with universal 55mm frames.

Output	DALI signal
Power Supply	Supply By DALI Bus
Operation Current	4mA
Operating temperature	0-40°C
Relative humidity	8% to 80%
Dimensions	71.2×71.2×13.6mm
