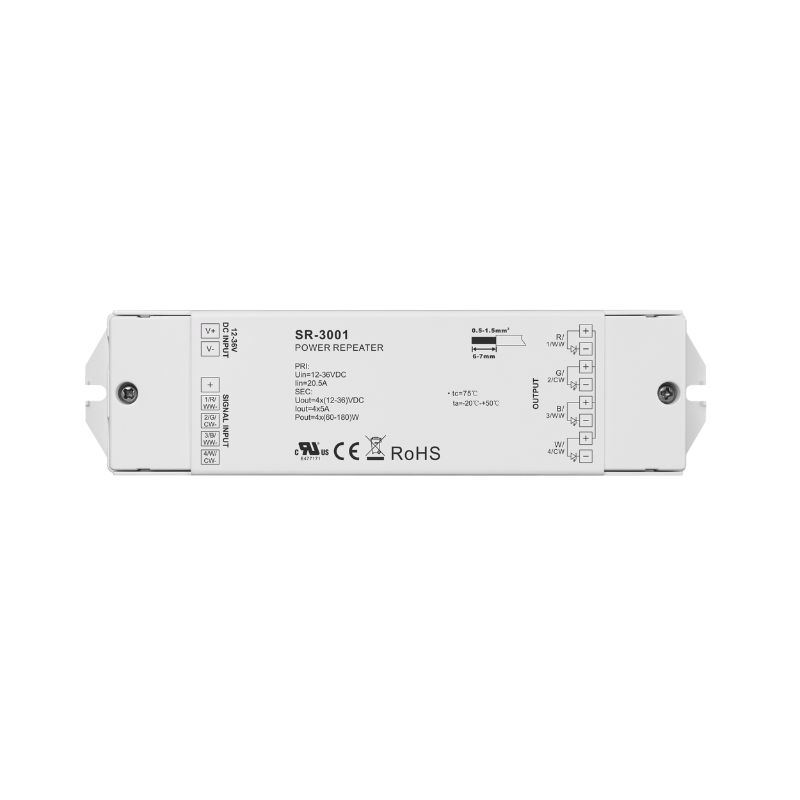

The Power Repeater / Amplifier is designed to repeat dimming signals, available in one channel, three channels, or four channels as options, supporting both constant voltage and constant current. It can be connected in series to expand output power without limitation.
| No | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x300mA | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(3.6-10.8)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current | Constant current |
| Size(LxWxH) | 178x46x22mm | 178x46x22mm | 178x46x22mm | 178x46x22mm |
