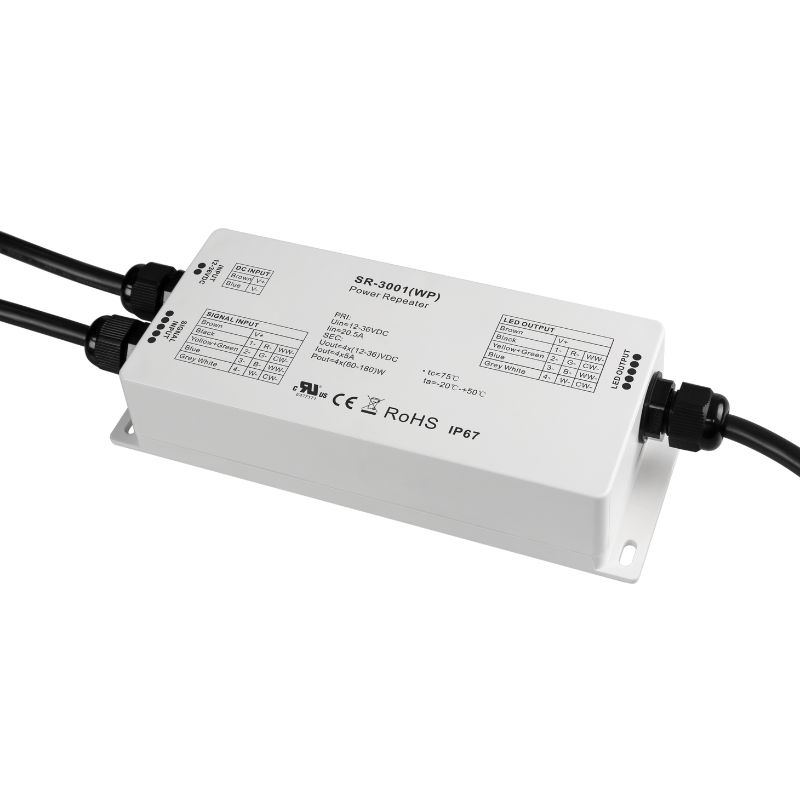

The Power Repeater/Amplifier repeats dimming signals and is available in one, three, or four channel options, supporting both constant voltage and constant current outputs, and can be connected in series to expand output capacity without limitation.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 180.5×73.6x38mm | 180.5×73.6x38mm | 180.5×73.6x38mm |
