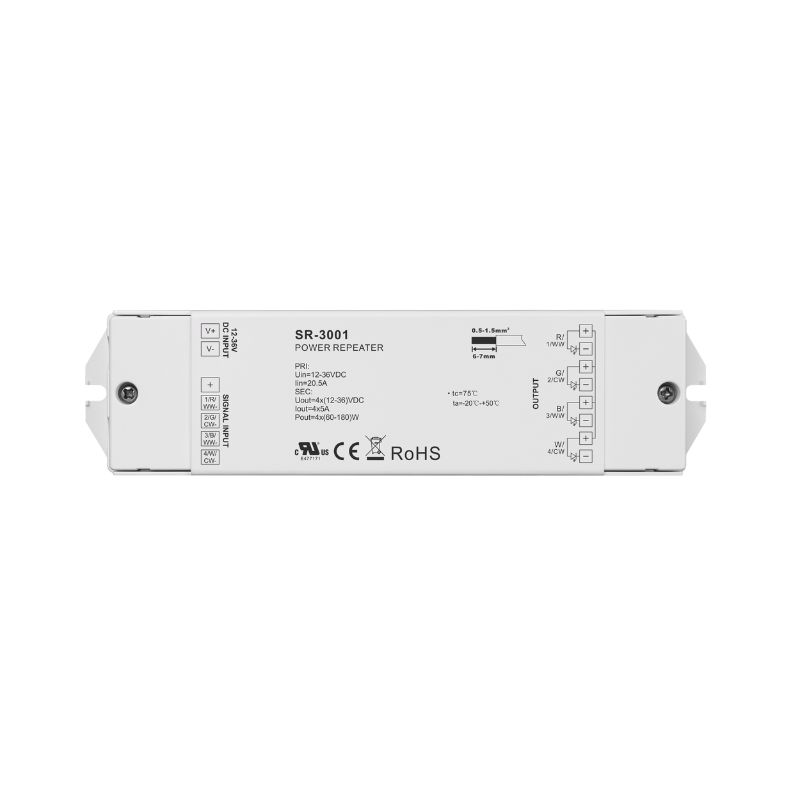

The Power Repeater/Amplifier extends dimming signals with options for one, three, or four channels, supporting both constant voltage and constant current outputs, and can be connected in series to expand output capacity without limit.
| No | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x300mA | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(3.6-10.8)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current | Constant current |
| Size(LxWxH) | 178x46x22mm | 178x46x22mm | 178x46x22mm | 178x46x22mm |
