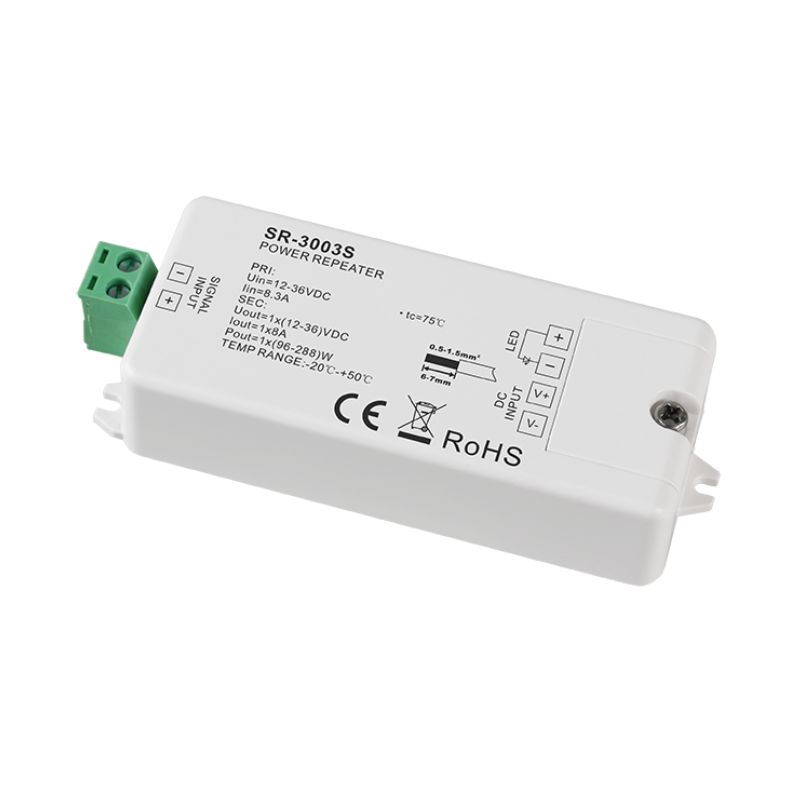

The Power Repeater is designed to repeat dimming signals with one channel input and one channel output. It can be connected in series to expand output power without limitation.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 1x8A | 1x350mA | 1x700mA |
| Output Power | 1x(96-288)W | 1x(4.2-12.6)W | 1x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 95x37x20mm | 95x37x20mm | 95x37x20mm |
