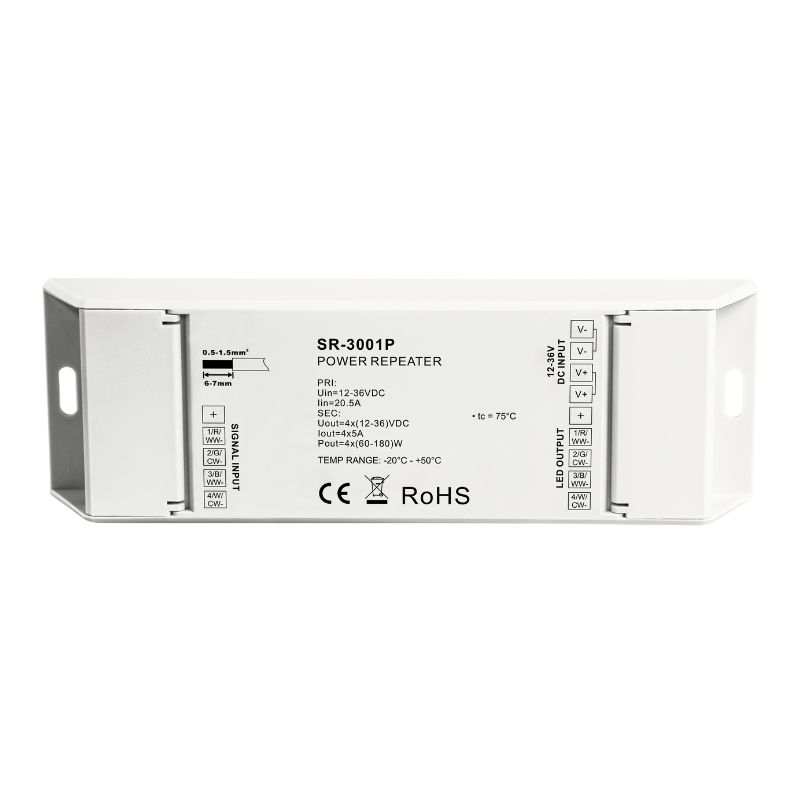

The Power Repeater is designed to repeat dimming signals and is available in one channel, three channel, and four channel options. It supports both constant voltage and constant current outputs, allowing for flexible usage. This power repeater can be connected in series to expand output power without limitation.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 170×53.4x28mm | 170×53.4x28mm | 170×53.4x28mm |
