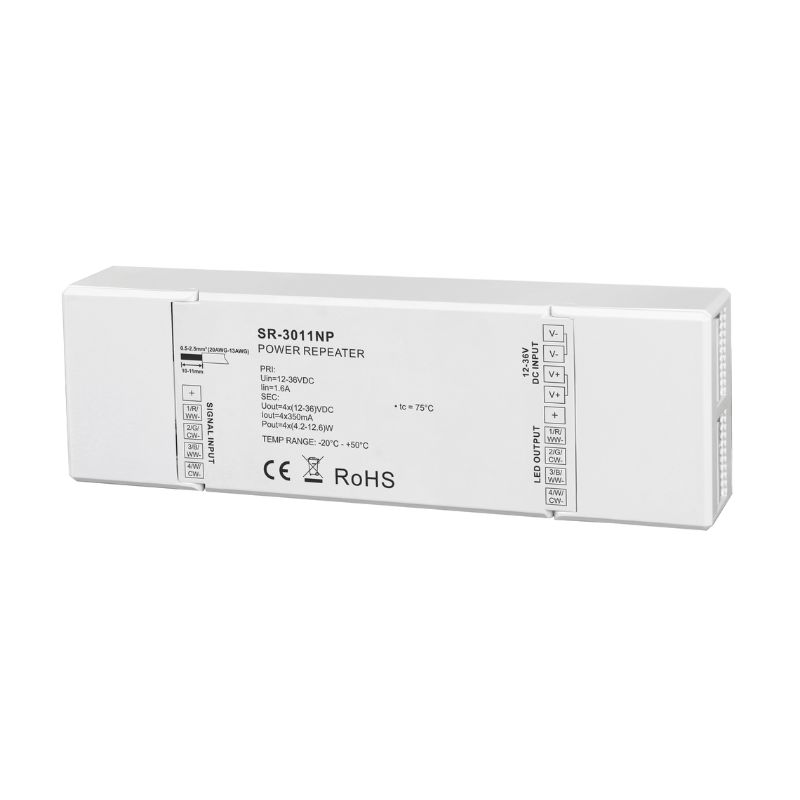

The Power Repeater repeats dimming signals with options for one, three, or four channels and supports both constant voltage and constant current outputs, allowing multiple units to be connected in series to expand output capacity unlimitedly.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 170×53.4x28mm | 170×53.4x28mm | 170×53.4x28mm |
