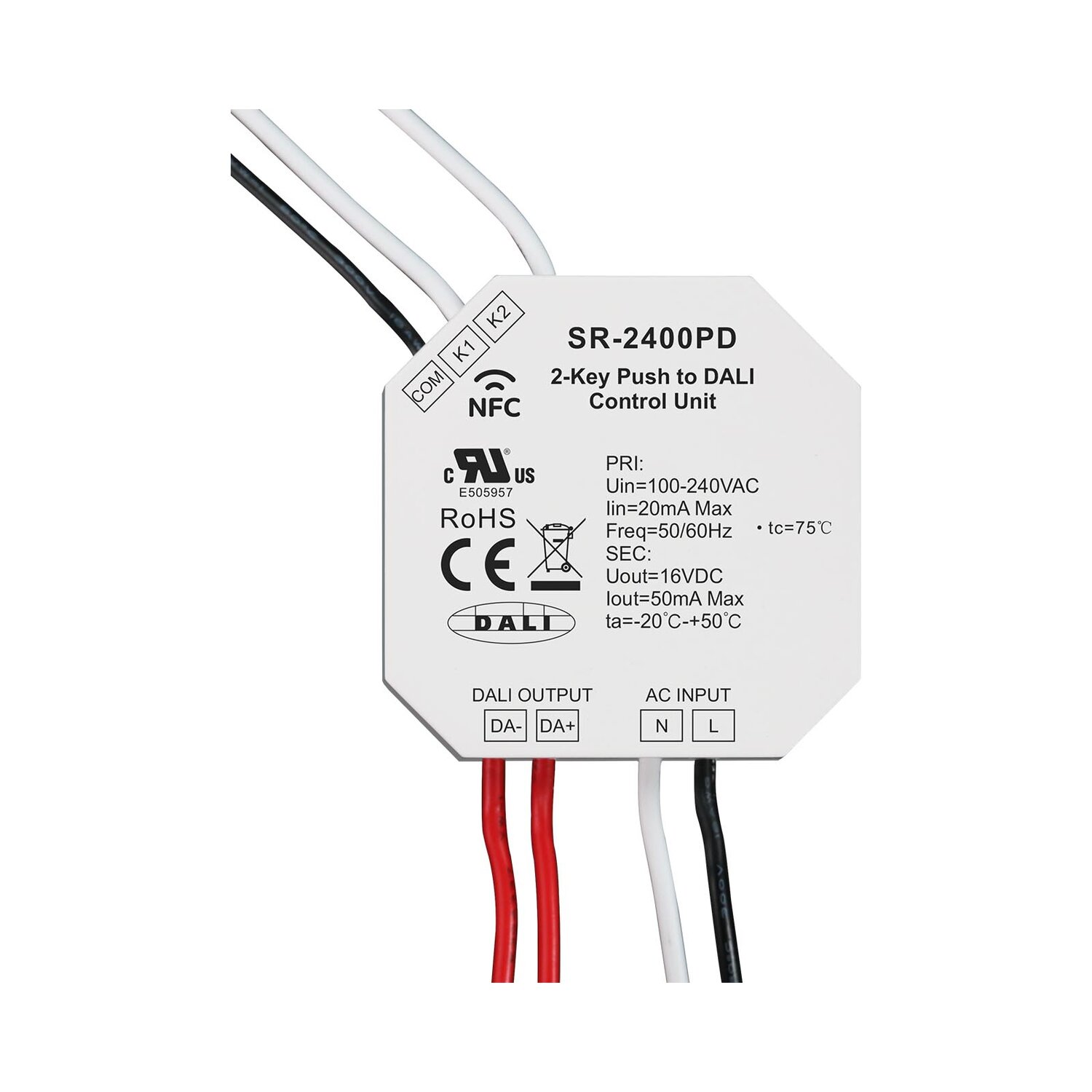

The NFC Programmable 2-Key Push to DALI Control is a versatile unit that supports two-channel push switch input or dry contact motion sensor input, operating in PD (Push Dim) or CD (Corridor Dim) modes selectable via NFC. It functions either with 100–240VAC power supply in active mode or as a DALI bus-powered device in passive mode, with an integrated 50mA DALI bus power supply capable of controlling up to 25 DALI DT6/DT8 control gears, and up to 100 when four units are connected to AC mains. The DALI current consumption is under 4mA, and the controlled device type, as well as control targets such as broadcast, single address, or group, can be freely configured via the NFC App. Each push switch supports short press, long press, and double-click actions, with the triggered DALI commands fully customizable, allowing multiple control units on the same DALI line for multi-point control.
| Input Signal | 2 channels push switch/dry contact motion sensor |
|---|---|
| Power Supply | 100-240VAC(active)/DALI bus(passive) |
| Output | DALI signal |
| Output Current | 50mA |
| DALI Current Consumption | <4mA |
| Controlled DALI Device Type | DT6, DT8 Tc, DT8 xY, DT8 RGBWAF NFC configurable |
| Operation Mode | Push Dim or Corridor Dim NFC configurable |
| Push Switch Function | NFC configurable |
| Motion Sensor Parameters | NFC configurable |
| Operating Temperature | -20℃-50℃ |
| Relative Humidity | 8% to 80% |
| Dimensions(LxWxH) | 45.5x45x20.3mm |
