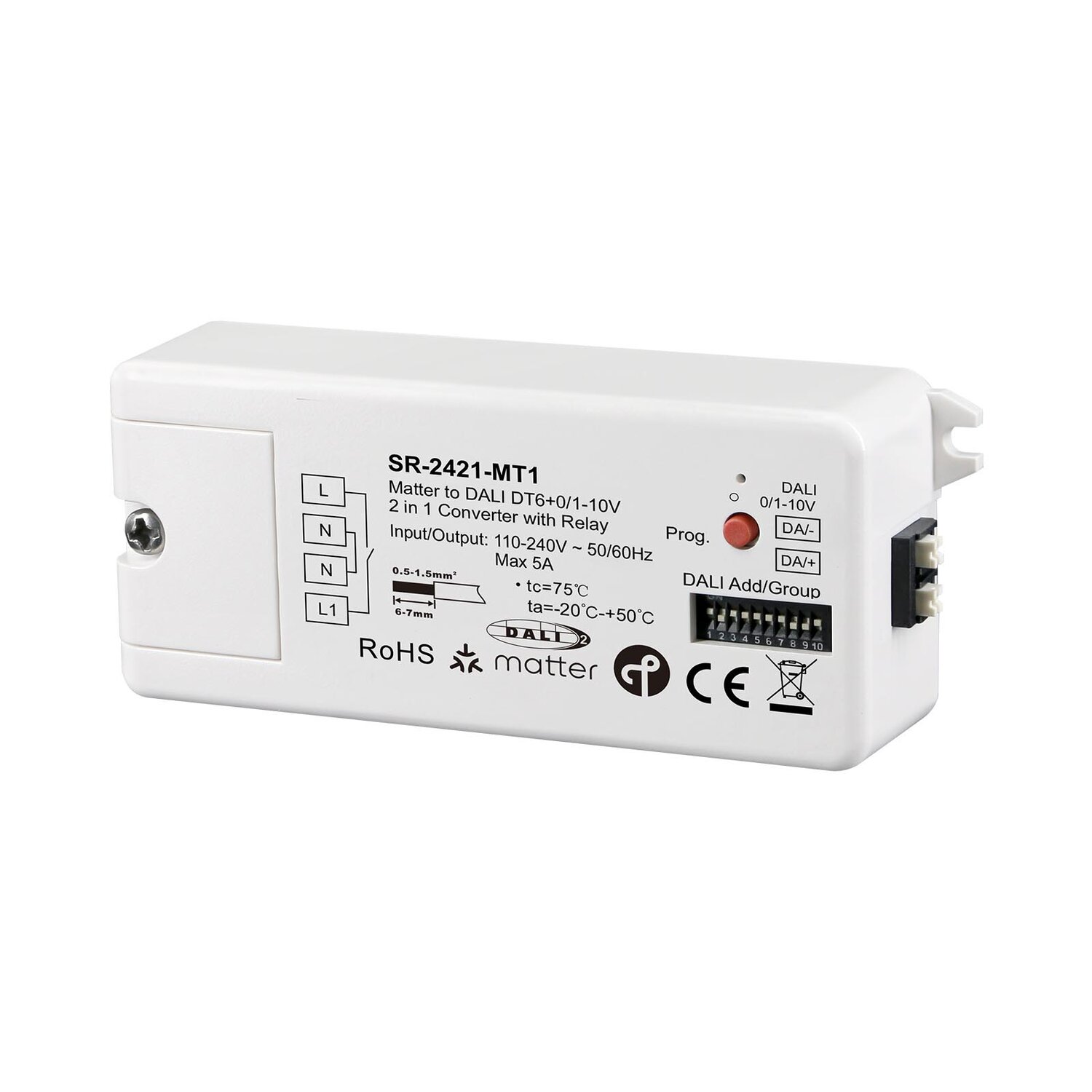

The Matter to DALI DT6 DIM+0/1-10V 2-in-1 Converter SR-2421-MT1 based on Thread provides seamless integration between Matter and DALI systems. It features a Matter signal input and outputs either DALI or 0/1-10V signals to control devices. The converter supports a wide power input range of 110-240VAC and includes a relay output, handling up to 5A for incandescent and halogen lamps, and 1.6A for LED loads. It is compatible with the universal Matter over Thread platform and offers convenient control via DIP switches for selecting DALI address or group, and choosing between DALI or 0/1-10V output. With built-in DALI bus power, it powers up to 25 DALI control gears and supports both DALI address and group control modes. The converter also allows broadcast control of all DALI devices on the line.
| Input | Power | 110-240VAC |
|---|---|---|
| Input | Signal | Matter |
| Output, DALI | DALI PS current | Max. 50mA |
| Output, DALI | DALI current consumption | Max. 4mA |
| Output, 0/1-10V | Current | Max. 20mA |
| Output, relay | Switching voltage | 110-240VAC |
| Output, relay | Max. Current | Incandescent: 5A LED: 1.6A |
| Environment | Operating temperature | -20℃-+50℃ |
| Environment | Relative humidity | 8% to 80% |
| Others | Dimensions | 95x37x20mm |
