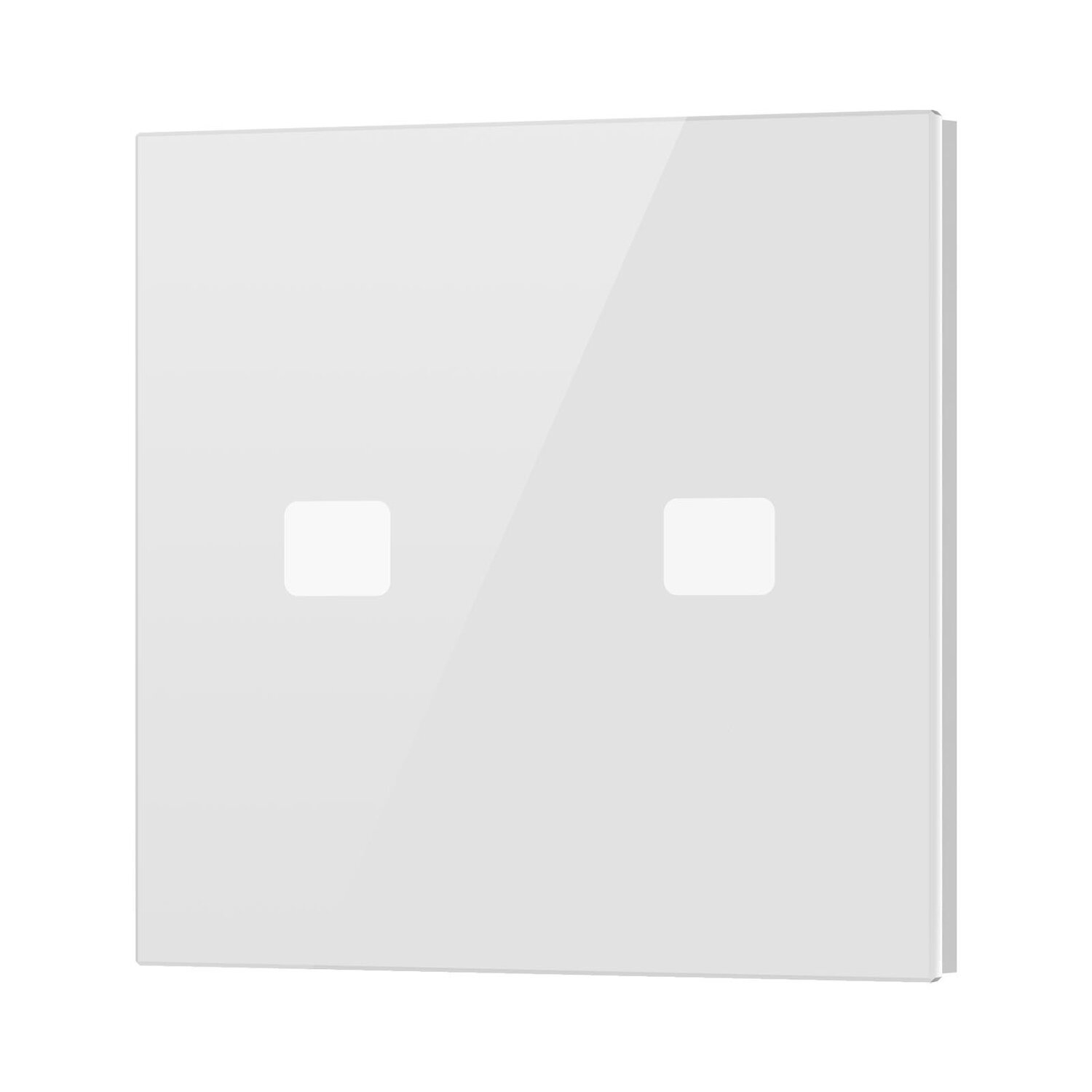

The KNX Touch Panel is available in 2-key, 4-key, 6-key, and 8-key versions featuring an ultra-slim design with a tempered glass front plate and high touch sensitivity, customizable labels printed on included PVC paper, extensive operating functions including configurable bicolored LED indicators for each button, switching and dimming, scene recall and storage, roller blinds and shutter control, adjustable touch keys for one or two button operation, powered by the KNX bus power supply without needing an extra power source, and designed for easy installation with a mounting bracket.
| 2-Key | 4-Key | 6-Key | 8-Key | |
| Number of Keys | 2 | 4 | 6 | 8 |
| Number of bicolored LED | 2 | 4 | 6 | 8 |
| Orientation LED | 1 | 1 | 1 | 1 |
| KNX bus connection terminal | 0.8mmΦ,single core | 0.8mmΦ,single core | 0.8mmΦ,single core | 0.8mmΦ,single core |
| Power Supply | KNX Bus | KNX Bus | KNX Bus | KNX Bus |
| Power Consumption KNX bus typ. | <0.3W | <0.3W | <0.3W | <0.3W |
| Operation temperature range | 0 to + 45℃ | 0 to + 45℃ | 0 to + 45℃ | 0 to + 45℃ |
| Waterproof Grade | IP 20 | IP 20 | IP 20 | IP 20 |
| Dimensions(W x H x D) | 86x86x21.4 mm | 86x86x21.4mm | 86x86x21.4mm | 86×86×21.4mm |
