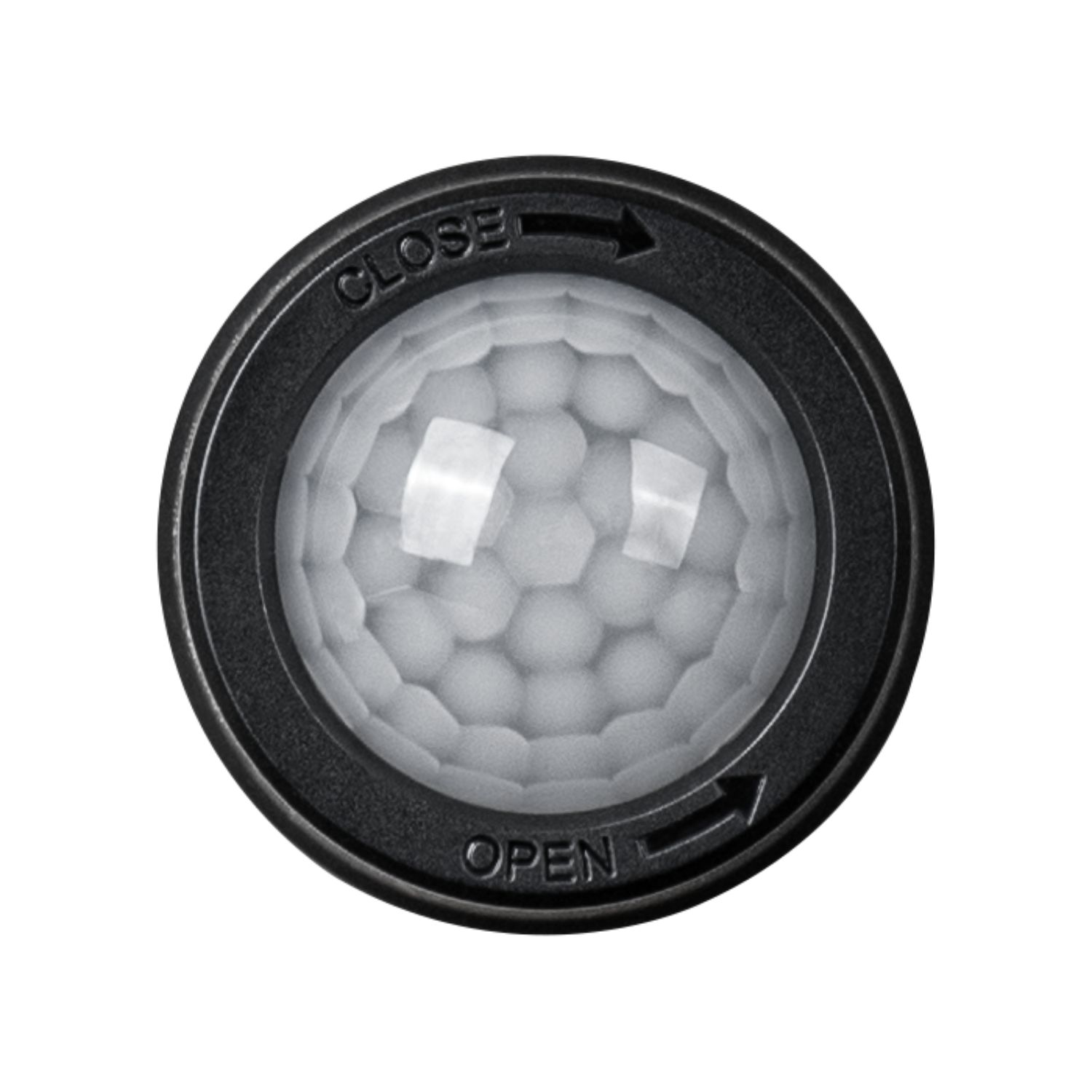

The Bluetooth to DALI sensor controller is Bluetooth® NLC Certified and operates on a Mesh network that extends control range by transmitting signals between neighboring devices. It enables broadcast control of all devices on the DALI line via a mobile application and supports our kinetic energy switches as well as EnOcean switches EWSSB and EWSDB. With autonomous sensor-based control, adjustable sensitivity, and a ZHAGA Book 18 socket, it also features a magnetic reset function by touching “OPEN” on the sensor top for 5 seconds, an on-board antenna, and comes with a 5-year warranty.
| Electrical Information | |
|---|---|
| Power Supply | DALI BUS |
| Power Consumption | Max. 30mA |
| Control | DALI-2 |
| Marking Terminals | DA, DA+ |
| Status Indicators | Green(commissioning), Red(motion detection) |
| Sensing | |
| Motion Detection | PIR |
| Daylight Harvesting | YES |
| Mounting Height | Up to 14m, recommended height: 6-12m |
| Detection Angle/Range | 360° (ceiling)/16m(Diameter) |
| Environment | |
| Operating Temperature Range | 0℃ to 45℃ |
| Operating Humidity | 0-95%(non-condensing) |
| Safety Certification | cULus Listed, CE |
