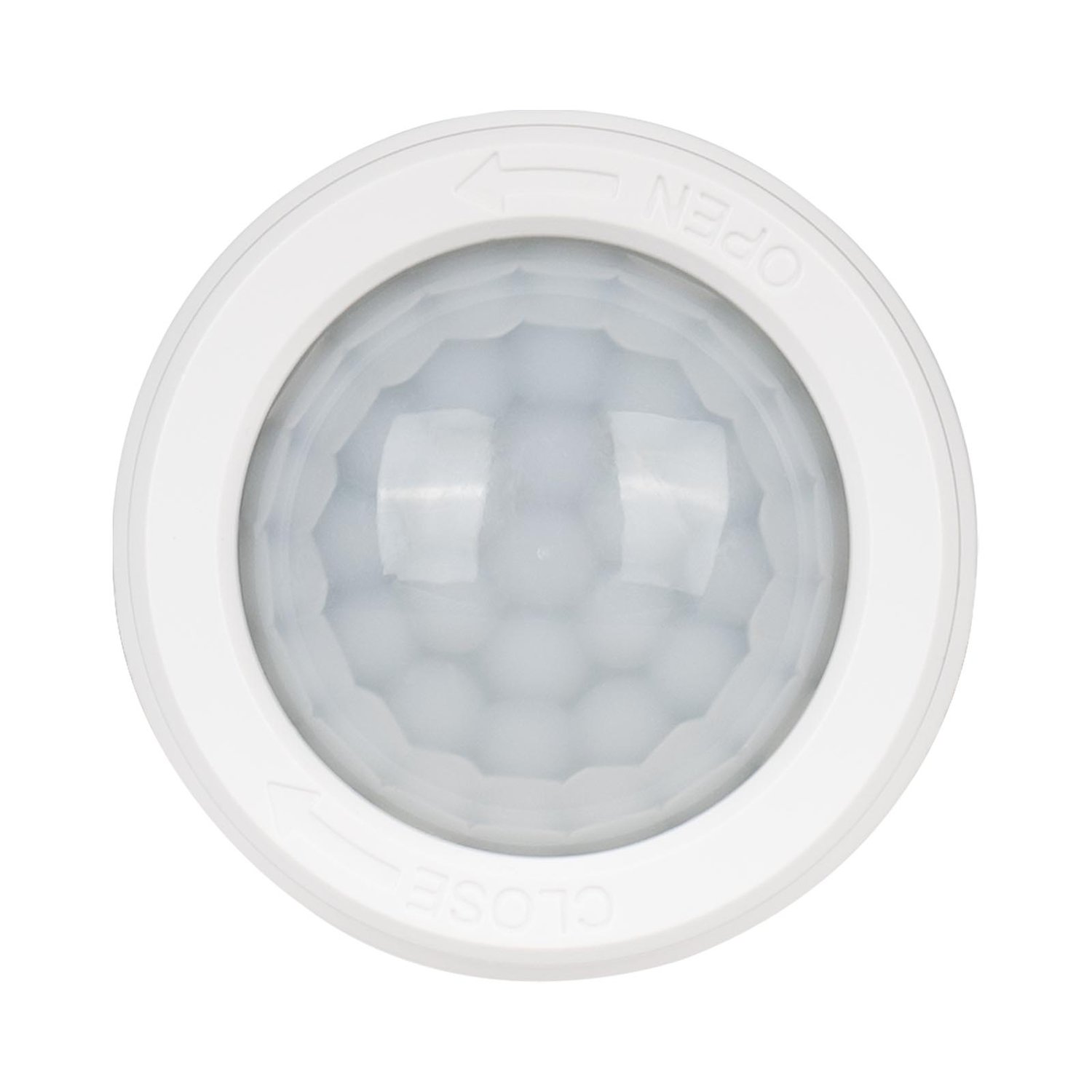

The Bluetooth to 0-10V Sensor Controller utilizes a Bluetooth mesh network to extend control distance by transmitting signals to neighboring devices, allowing all devices on the 0-10V line to be controlled via a mobile application. It supports kinetic energy switches and EnOcean switches EWSSB and EWSDB, offering autonomous sensor-based control with sensitivity adjustment to effectively manage false triggers. This controller features a 3-pin interface for Plug & Play installation and includes a magnetic reset option, activated by touching the top part of the sensor for five seconds, along with an on-board antenna for improved connectivity. With an IP65 waterproof rating, it is suitable for outdoor luminaires and comes with a five-year warranty.
| Electrical Information | |
|---|---|
| Power Supply | 12-24 VDC |
| 0-10V Signal Output | 20mA |
| Control | 0-10V |
| Marking Terminals | V+,GND(DIM-), NC, DIM+ |
| Status Indicators | Red(commissioning), Green(motion detection) |
| Sensing | |
| Motion Detection | PIR |
| Daylight Harvesting | YES |
| Mounting Height | Max. 12m |
| Detection Angle/Range | 360°(ceiling)/16m(Diameter) |
| Environment | |
| Operating Temperature Range | -25℃ to 55℃ |
| Operating Humidity | 0-95%(non-condensing) |
| Safety Certification | cULus Listed, CE |
