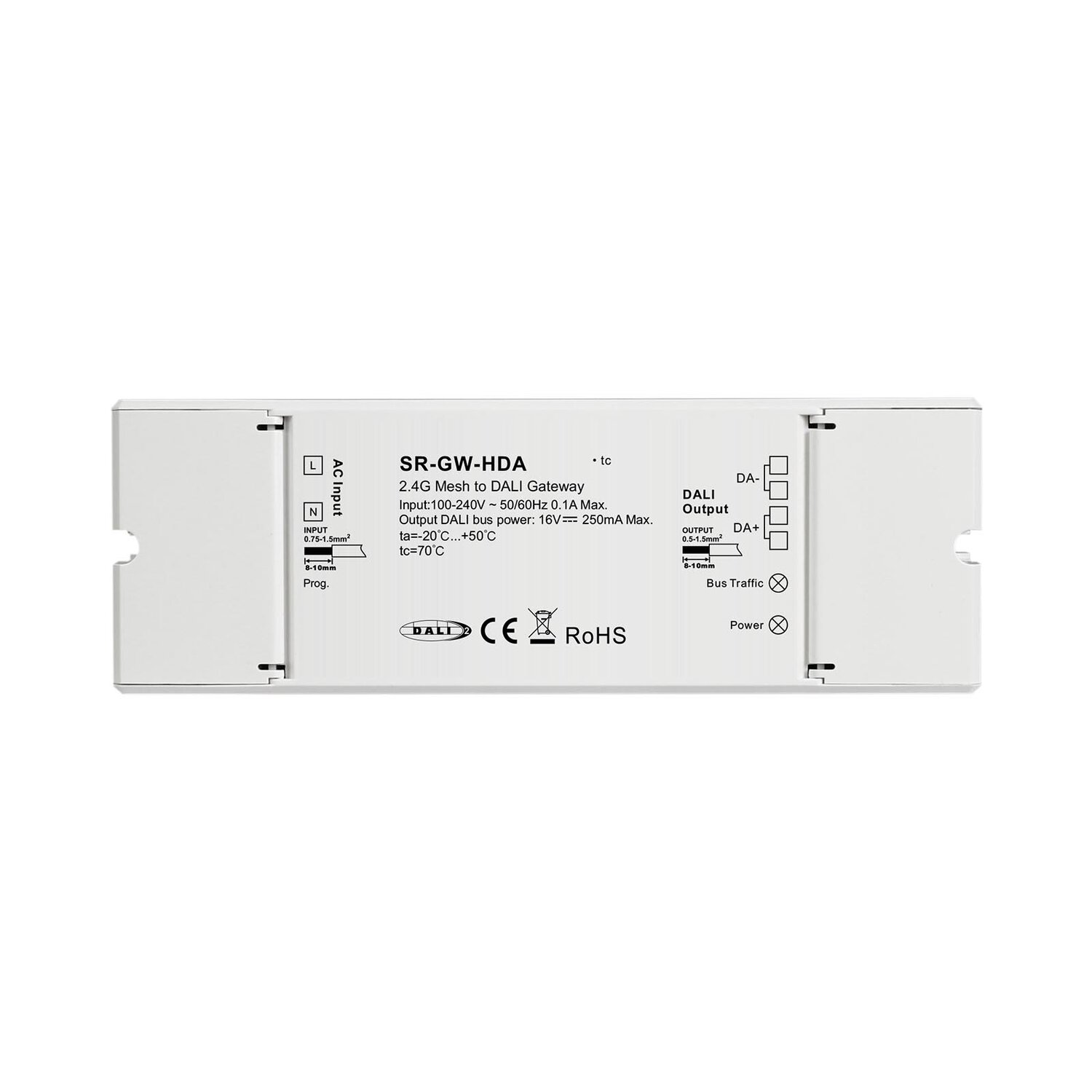

Homeelife 2.4G Mesh to DALI Gateway

SR-GW-HDA
Product description
  • Supports addressing, grouping and scene configuration for max. 64 DALI addresses
  • Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types
  • Built-in 250mA DALI PS, no extra wiring required
  • Easy & quick configuration through Homeelife APP
  • Supports independent control of DALI devices through wireless devices.
  • > A single network supports a maximum of 80-100 homeelife to DALI gateways.

This Homeelife to DALI gateway supports addressing, grouping, and scene configuration for up to 64 DALI devices, including DT6 and DT8 types (Tc, XY, RGBWA). With a built-in 250mA DALI power supply, it eliminates the need for extra wiring. Easily configured via the Homeelife App, it enables wireless independent control and supports up to 80–100 gateways per network.

Power Supply 100-240Vac
Output Voltage 16Vdc
Output DALI bus power 250mA max.
Radio protocol Bluetooth
Operation Frequency 2.4GHz
Operating temperature -20℃~50℃
Relative humidity 8% to 80%
Dimensions 170x59x29mm
