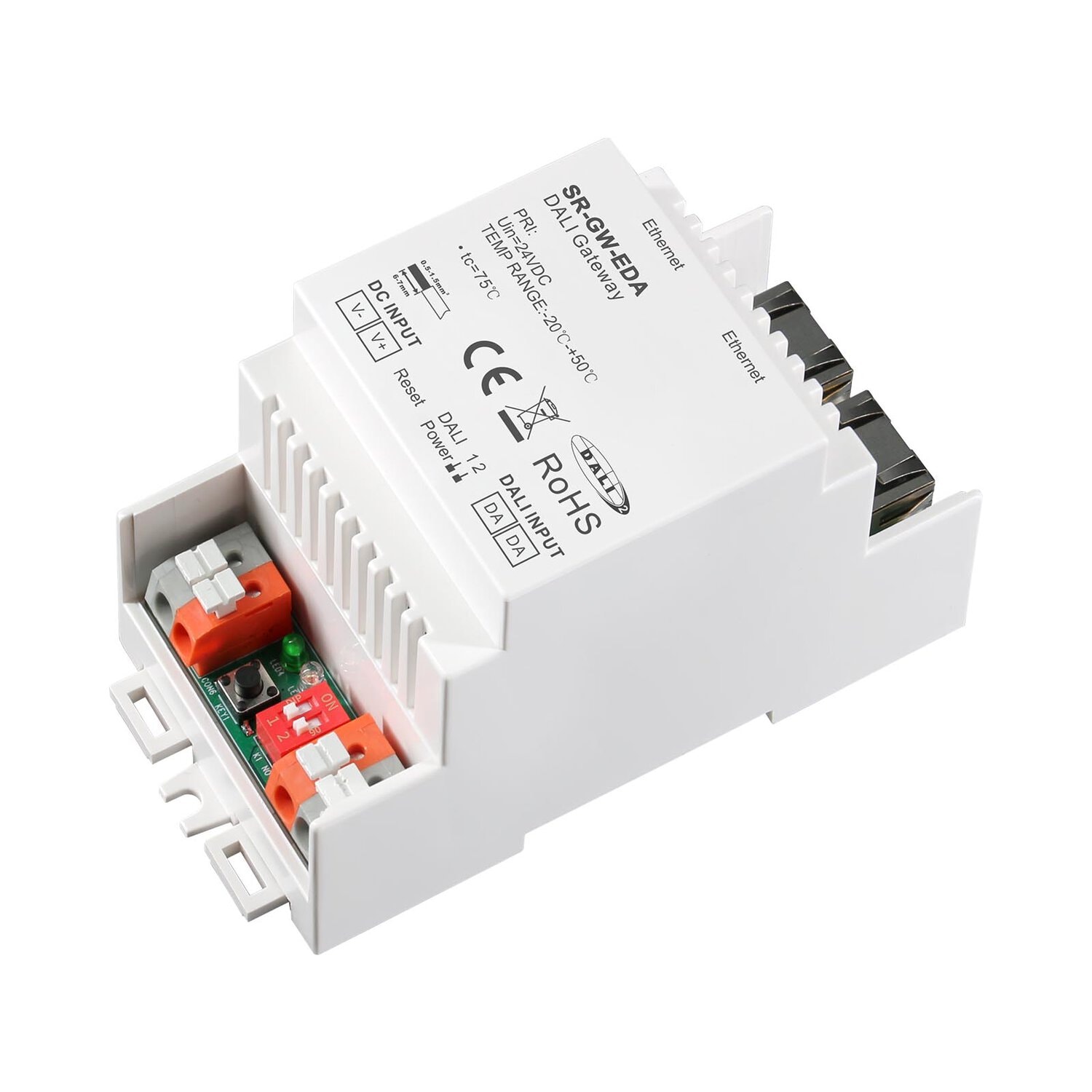

The DIN Rail Ethernet (IP) DALI Gateway supports DT6, DT8 Tc, DT8 XY, and DT8 RGBWA device types, enabling addressing, grouping, and scene configuration for up to 64 DALI-1 or DALI-2 control gears, with a built-in 250mA DALI power supply requiring no additional wiring, Ethernet connectivity for network integration, convenient configuration via the DALI Center PC application, and built-in battery and real-time clock for timer task scheduling.
| Input Voltage | 24VDC | Input Voltage | 24VDC |
|---|---|---|---|
| Number of DALI Channel | 1 | Number of DALI Channel | 1 |
| Output Voltage | 12-22.5VDC | DALI Current Consumption | Max. 2mA |
| Output Current | 250mA max | Size(LxWxH) | 110x53x65mm |
| Size(LxWxH) | 110x53x65mm | Ambient Temperature | -20℃ +50℃ |
| Ambient Temperature | -20℃ +50℃ |
