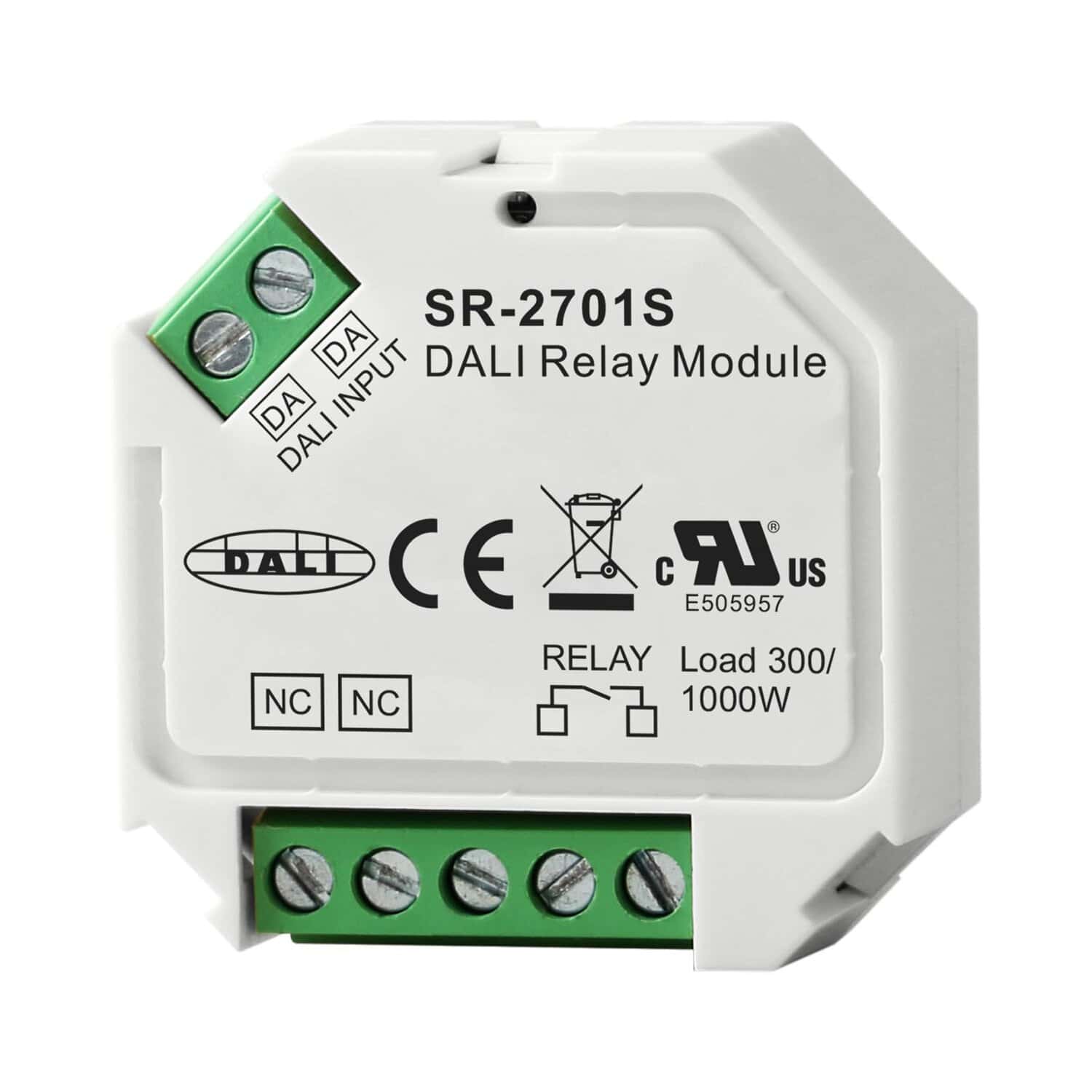

The DALI Relay Module is a compact, bus-powered relay module designed to control one standard contactor via a single DALI address assigned by the DALI master controller, allowing loads without DALI input to be integrated and switched on or off within the DALI circuit, compatible with universal DALI systems and master controllers, and sized for easy installation into a standard wall box.
| Input | DALI control input | 1 |
|---|---|---|
| Input | DALI consumption | < 3mA |
| Input | Number of DALI addresses | 1 |
| Output, relay | Switching voltage AC | Max. 250V |
| Output, relay | Switching voltage DC | Max. 30V |
| Output, relay | Current | Resistive load: max. 4.3A Capacitive load: max. 1.3A Inductive load: max. 4.3A |
| Output, relay | Type of contact | 1 normally closed |
