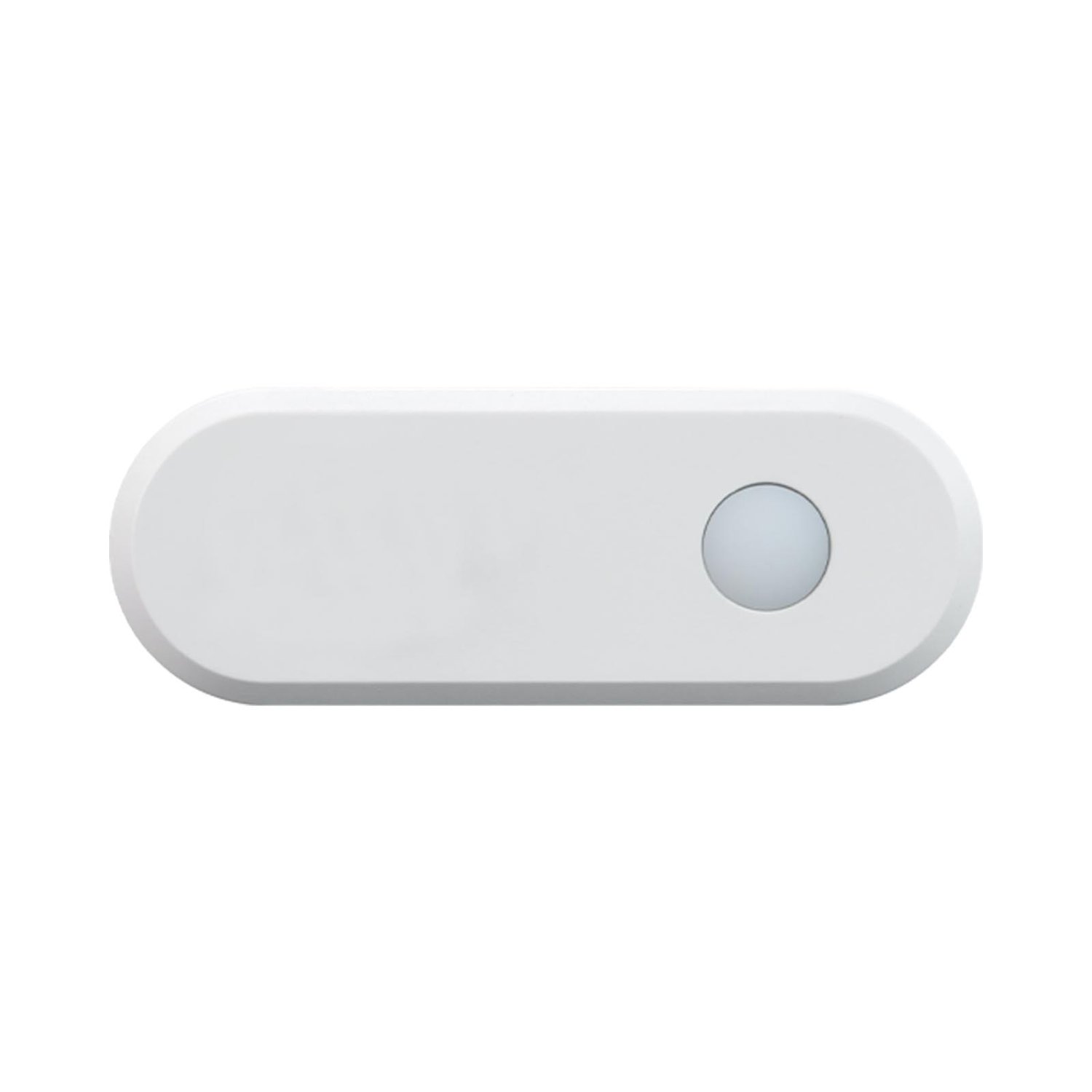

DALI BLE Fixture-integrated Sensorless Controller

SR-SV9035A-D

Product description

Bluetooth to DALI signal converter, Bluetooth® mesh network
Powered by DALI BUS, extremely ease of use with DALI system, especially with D4i driver.
Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
All devices on DALI line are broadcast controlled by mobile application
Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation
Available with Magnetic reset (Touch the top part of sensor for 5 seconds)
On-board antenna
Waterproof grade: IP20
5 years warranty

This Bluetooth® to DALI signal converter enables wireless broadcast control via Bluetooth mesh, ideal for D4i drivers with DALI BUS power. It extends range through device-to-device relay and supports kinetic and EnOcean switches (EWSSB/EWSDB). Features magnetic reset and seamless mobile app integration.

Input	Power	DALI BUS
Input	Signal	Bluetooth
DALI Consumption	Current	Max.20mA
Control	Dimming Curve	Logarithmic
Control	Dimming Method	PWM
Environment	Operating Temperature	0℃~+45℃
Environment	Relative Humidity	8% to 80%
Others	Size	See dimensions
