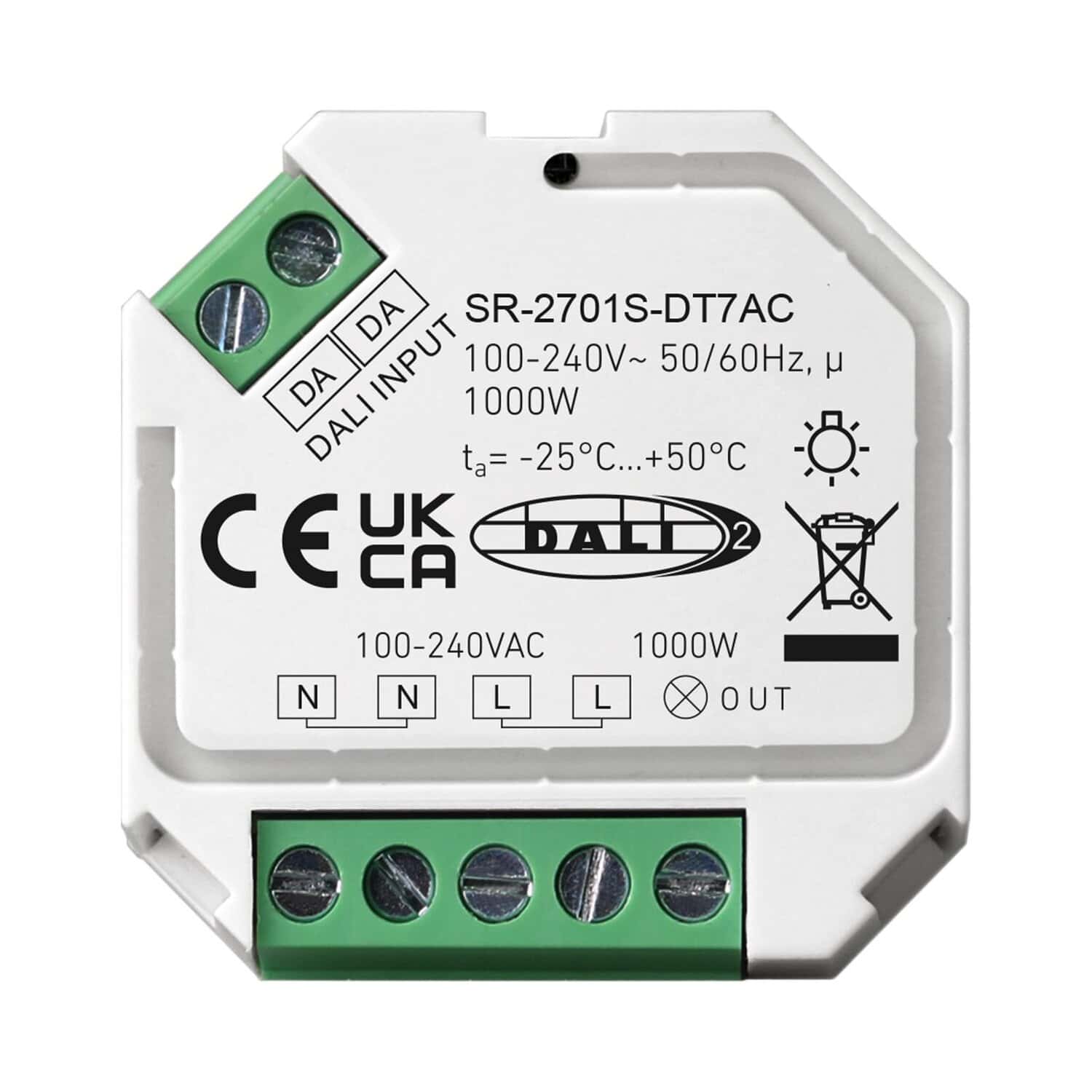

The DALI-2 Relay Module is a mini-sized actuator with a 100-240VAC power input that supports one DALI address assigned by the master controller, is compatible with both DALI and DALI-2 versions, compliant with IEC 62386-208 and DALI device type 7, enables integration of loads without DALI input into the DALI circuit for switching, and is designed for easy installation into a standard wall box.
| Input | DALI control input |
1 |
|---|---|---|
| DALI Number of DALI consumption addresses |
< 3mA | |
| DALI Number of DALI consumption addresses |
1 | |
| Power input | 100-240VAC, 50/60Hz | |
| Output, relay | Switching voltage |
100-240VAC |
| Current | Resistive load: max. 4.3A Capacitive load: max. 1.3A Inductive load: max. 4.3A |
|
| Type of contact |
1 normally closed |
