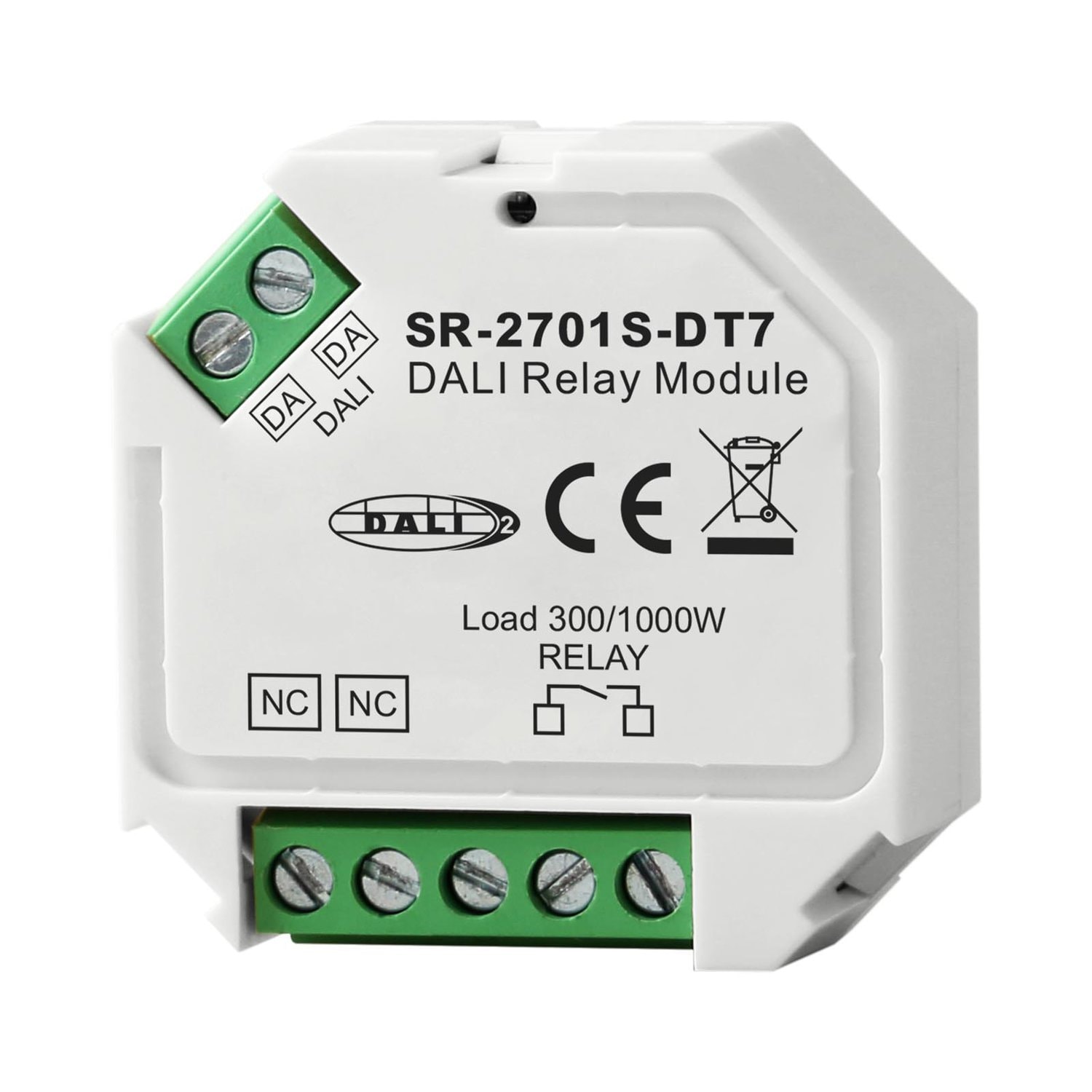

DALI-2 Relay Module

SR-2701S-DT7

Product description

DALI-2 relay module, DALI-2 certified, complies to DALI standards IEC 62386-101, IEC 62386-102, IEC 62386-208
DALI bus powered, no extra power supply required
1 DALI address can be assigned by DALI master controller
Control of one standard contactor
Compact relay module for controlling a standard contactor via DALI
Loads that do not have a DALI input can therefore be integrated in the DALI circuit
The loads can be switched on and off via DALI
Compatible with universal DALI systems and master controllers in the market
Mini Size, easy to be installed into a standard wall box
5 years warranty
Waterproof grade: IP20

The SR-2701S-DT7 is a DALI-2 relay module which is capable of switching both AC and DC loads. The DALI RM enables to integrate existing loads which do not have DALI input into DALI circuit and switch on/off the loads.

Input	DALI control input	1
Input	DALI consumption	< 3mA
Input	Number of DALI addresses	1
Output, relay	Switching voltage AC	Max. 250V
Output, relay	Switching voltage DC	Max. 30V
Output, relay	Current	Resistive load: max. 4.3A Capacitive load: max. 1.3A Inductive load: max. 4.3A
Output, relay	Type of contact	1 normally closed
