DALI 0-10V/PWM Dimmer

SR-2303(0-10V-PWM)

Product description

DALI signal input, 2 channels 0-10V signal output
1 DALI address for 2 channels 0-10V output, 2 channels controlled synchronously
Compatible with different DALI controllers
To dim and switch Single color LED lighting
Waterproof grade: IP20

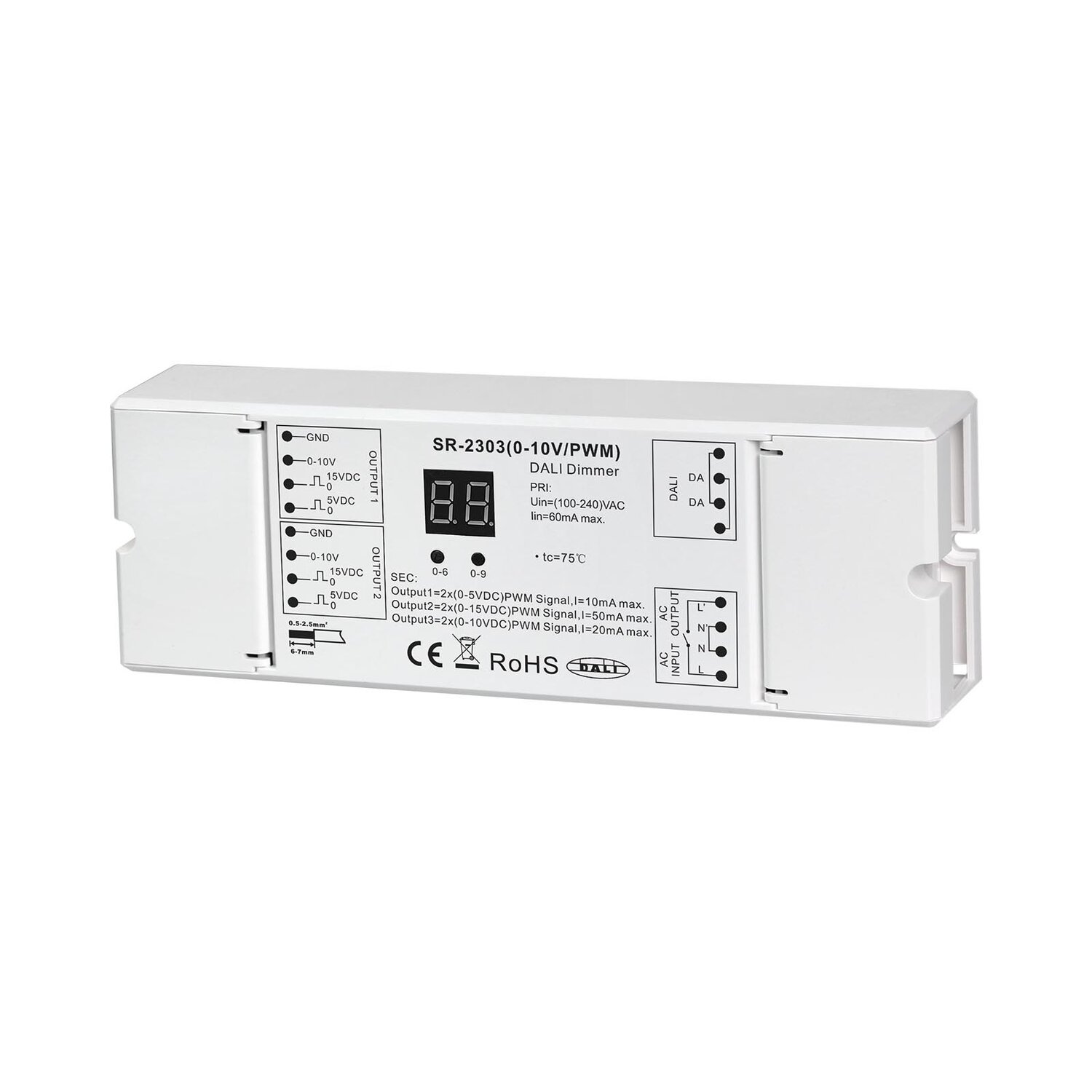

The SR-2303 (0-10V/PWM) is a 0-10V LED driver which receives and converts DALI signal to 0-10V/PWM signal to dim and switch single color LED lighting. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. The 0-10V driver can be compatible with a variety of DALI masters.

Input Voltage	100-240VAC
Input Current	60mA max
Output Power	2x(0-5VDC)/2x(0-10VDC)/2x(0-15VDC)
Output Current
Size(LxWxH)
