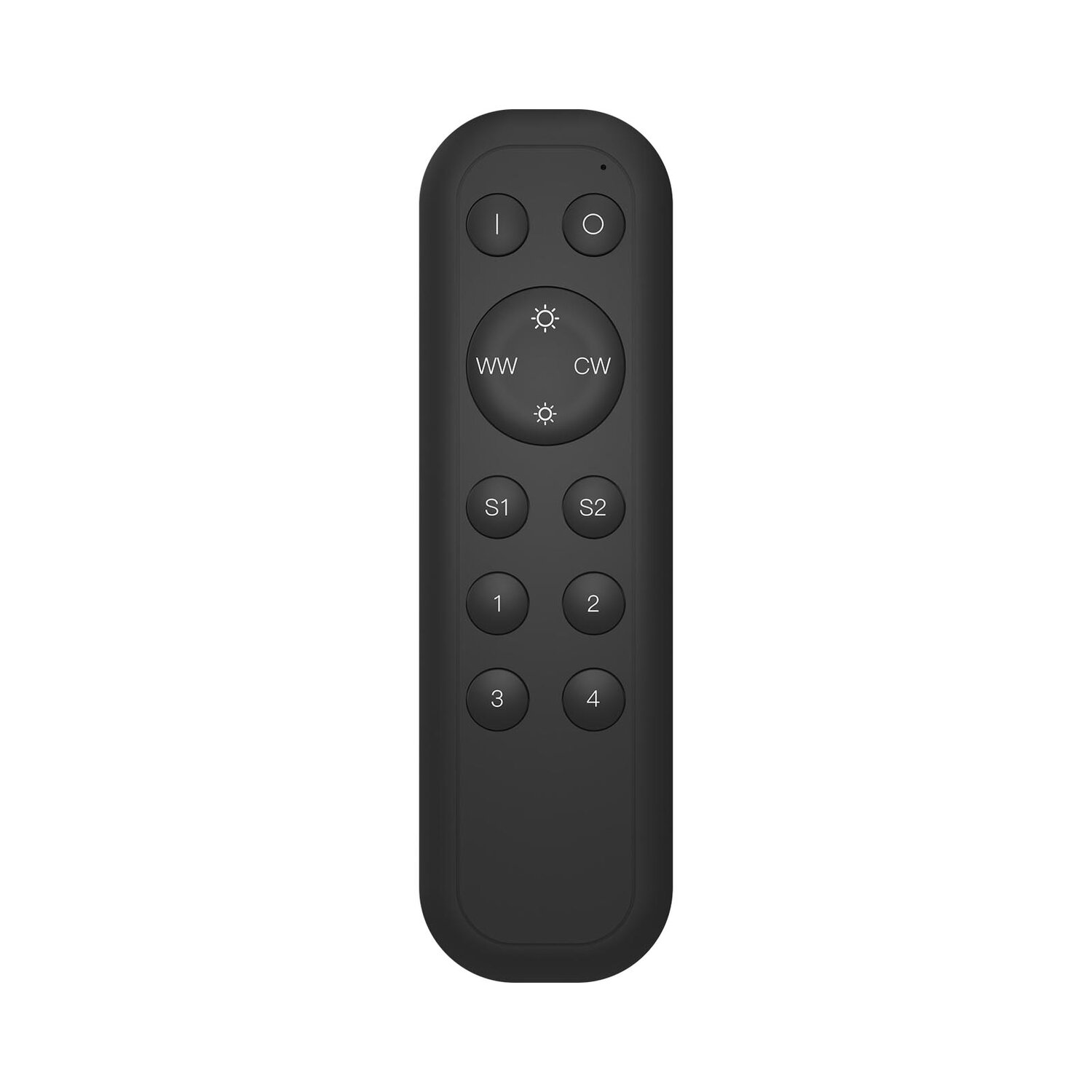

The CCT RF + 2.4G Remote is a 2.4G mesh CCT remote control that enables control of up to four zones of receivers. Pairing with 2.4G mesh receivers is simple and quick by pressing the buttons. The mesh network allows for extended control distances, as receivers can transmit signals to each other. The remote can control multiple receivers, and each receiver can be paired with up to eight remotes. The status of the controlled receiver is quickly synchronized with the smart app, and the transmission range between neighboring devices can reach up to 30 meters. With 2.4G low power consumption technology, the remote provides long battery life and can bind and control universal CCT lighting devices.
| Protocol | 2.4G RF |
|---|---|
| Operation Voltage | 3VDC (CR2025 battery) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Dimming Range | 0.1%-100% |
| Dimension | 137x40x11.5mm |
| Waterproof Grade | IP20 |
