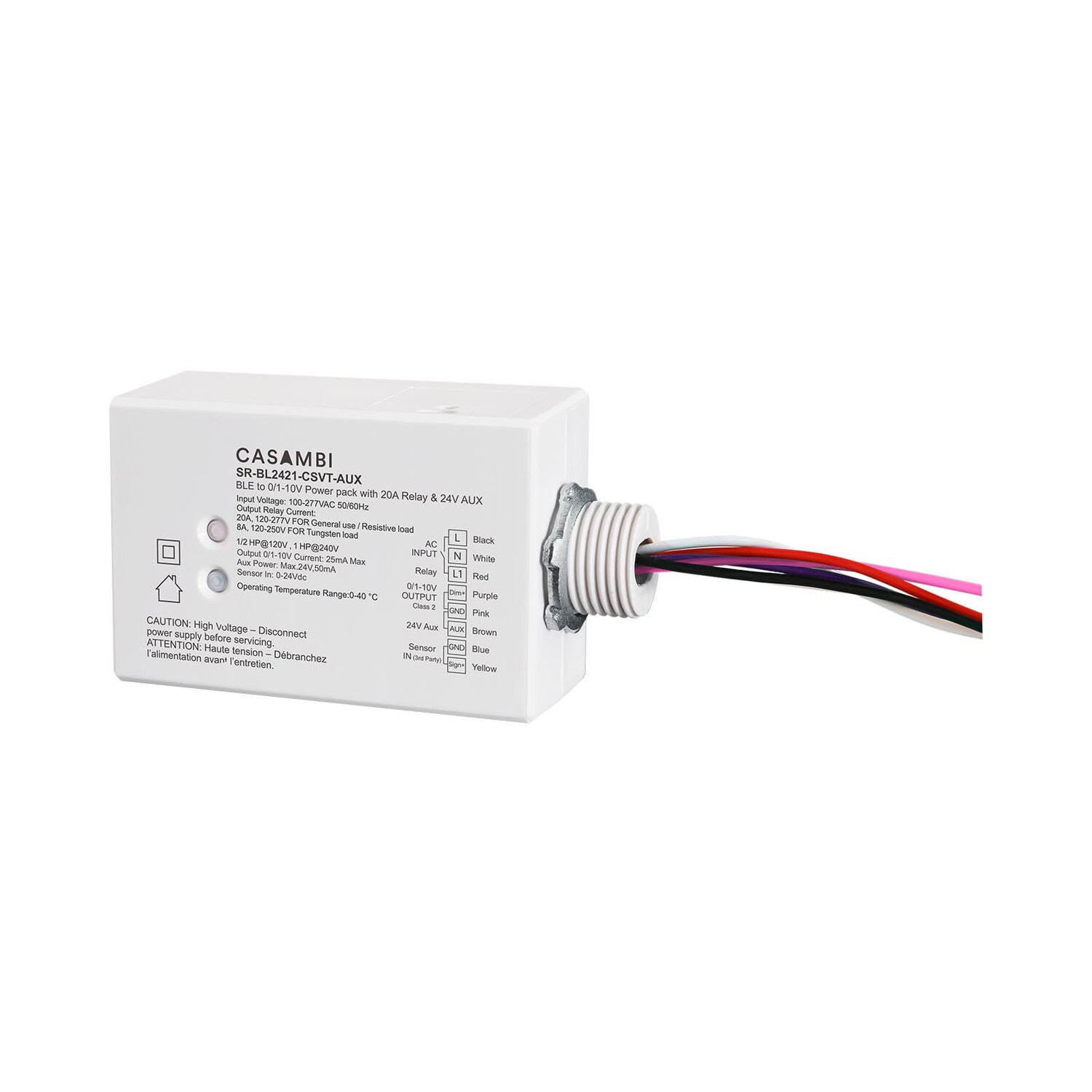

The Casambi to 0/1-10V Power Pack with 20A Relay & 24V Aux is designed to seamlessly convert Casambi signals to 0-10V, integrating into the Casambi mesh network.
It features a built-in 25mA 0-10V signal output and a 20A relay, along with a built-in sensor input that allows third-party sensors to control the power through logic signals.
The mesh network offers extended control distance, broadcasting signals to all devices on the 0-10V line, which can be wirelessly controlled through the Casambi app, Casambi switches, or kinetic switches.
In typical indoor environments, the wireless communication range is approximately 50 meters. This product is UL listed (PAZX category) and UL 2043 Plenum rated, equipped with an IPEX antenna, and comes with a 5-year warranty.
| Input | Power | 100-277VAC |
|---|---|---|
| Input | Signal | Casambi |
| Output, 0/1-10V | Current | Max. 25mA |
| Output, Relay | Switching Voltage | 100-277VAC |
| Output, Relay | Current | Max. 20A |
| Environment | Operating Temperature | 0°C-+40℃ |
| Environment | Relative Humidity | 8% to 80% |
| Others | Size | 82.5*55*31mm |
| Load Type | 100-277VAC Signal Converter with 20A Relay, SR-BL2421-CSVT | |
| AC General Use | 20A@120-277VAC | |
| Resistive | 20A@120VAC, 20A@277VAC | |
| Capacitive | 8A@120-277VAC | |
| Motor | 0.5 HP@120VAC, 1 HP@240VAC |
