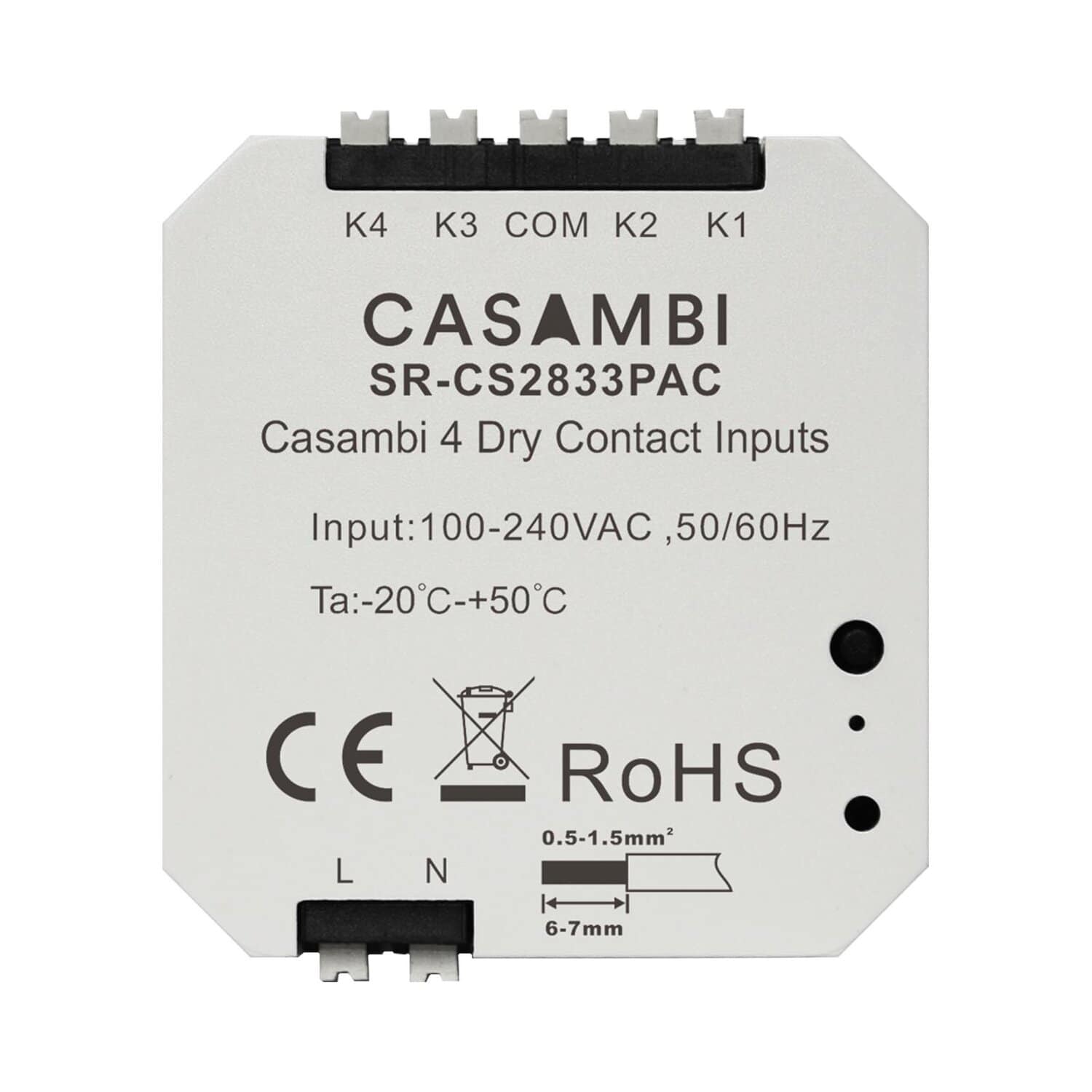

Casambi Push button Coupler

SR-CS2833PAC

Product description

Casambi push button coupler
4 dry contacts, can connect to 4 push buttons
Mesh network, which has a much Longer control distance, transmits received signals to neighboring devices
The range for wireless communication is about 50 meters in typical indoor environment, actual range is dependent on field installation
Button function can be freely configured by Casambi app to control a luminaire, a group, an element, a scene, whole network, etc
Waterproof grade: IP20
5 years warranty

The Casambi push button coupler features 4 dry contact inputs for connecting up to 4 standard push buttons, enabling flexible wireless control via a Bluetooth mesh network with a typical indoor range of up to 50 meters. Button functions can be freely configured in the Casambi app to control individual luminaires, groups, scenes, or the entire network. Housed in an IP20-rated enclosure, the device is reliable and backed by a 5-year warranty.

Protocol	Casambi
Power Supply	100-240VAC
Contact	4 dry contacts
Dimensions	49.81x43x15.15mm
Operating Temperature	0℃~ +40℃
Working Humidity	8% ~ 80%
Waterproof Grade	IP20
Warranty	5 years
