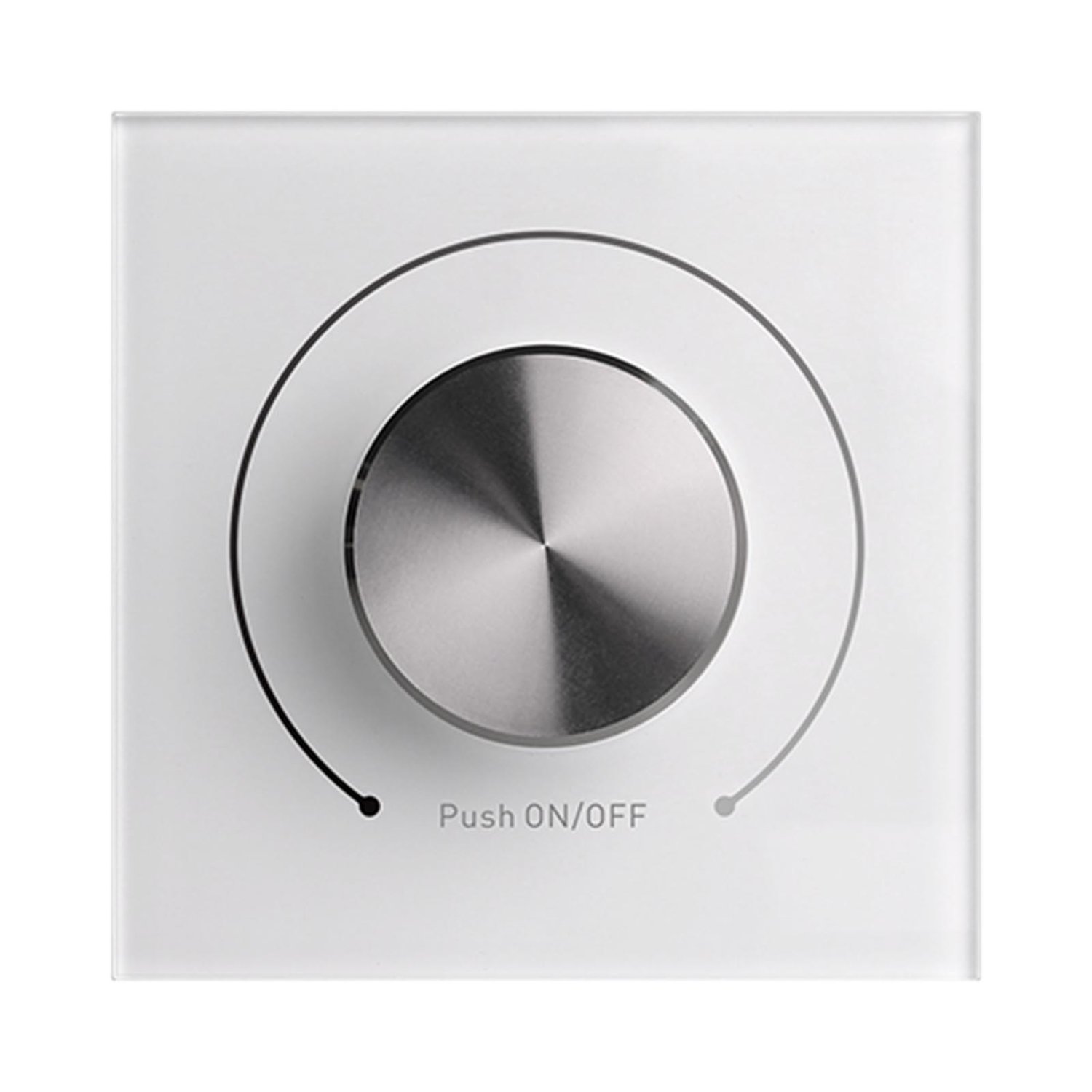

SR-2205N-B is a passive 1-10V dimmer which requires no power input. It is designed with 1 channel 1-10V signal output wuth max. 50mA current to control up to 20 1-10V drivers.
The dim off signal voltage can be adjustable from 0.5V to 0.9V by potentiometer, which enables it to be compatible with universal 1-10V drivers that have different dim off signal voltage, factory default is 0.9V. The 1-10V dimmer has a built-in power switch to switch on/off 100-240VAC power supply while the controlled 1-10v drivers are at standby mode to save energy, and it can switch up to 10A.
The controller can be compatible with existing standard size frame from Jung, Berker, Gira, Merten etc. It is easy to install the wall switch into existing standard size wall boxes.
| Output Signal | 1x(1-10V) |
|---|---|
| Output Current | Max. 50 mA |
| Switching Voltage | 100-240V AC |
| Switching Current | Max. 10A |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 80x80x52.3mm |
