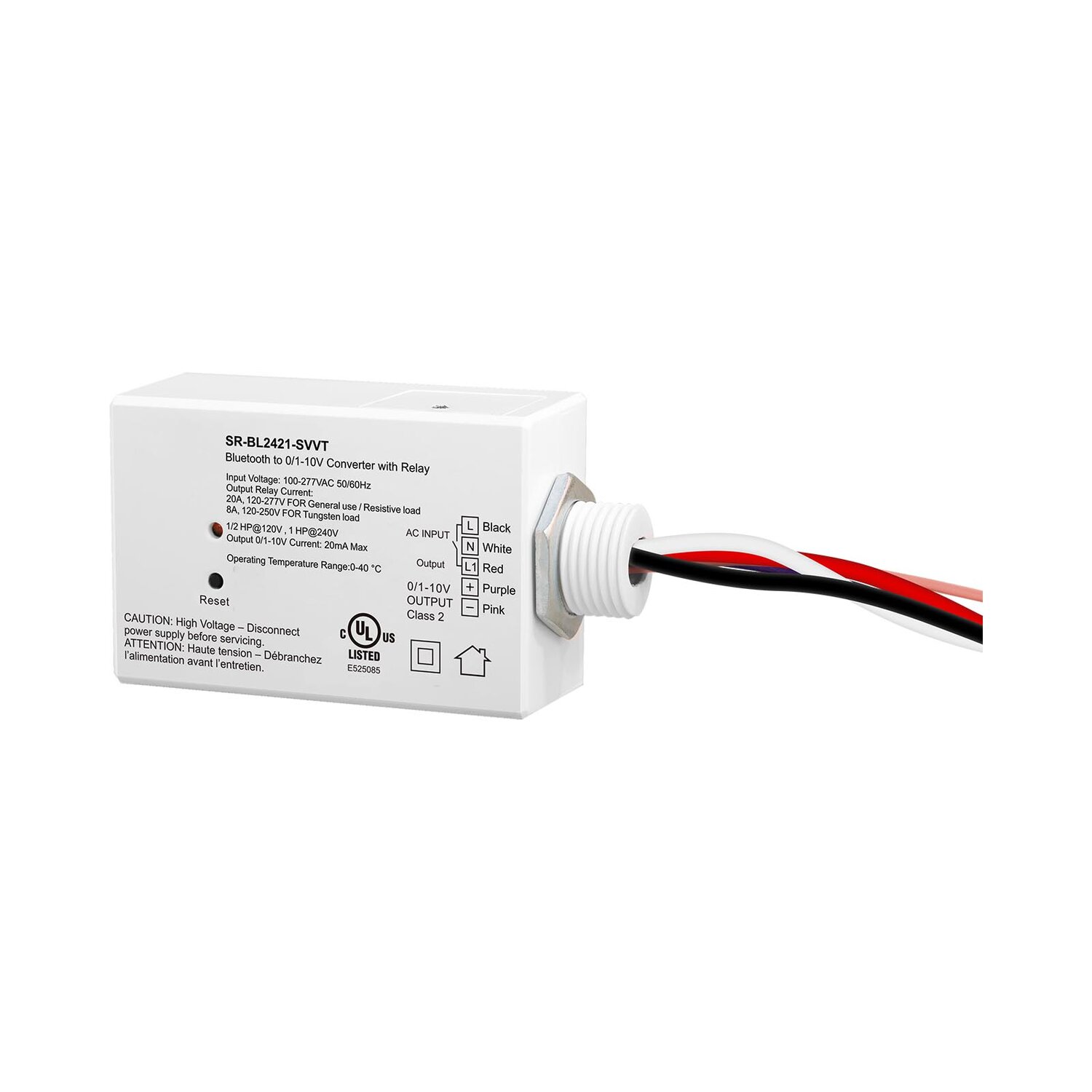

The Bluetooth to 0-10V Converter with 20A Relay is a Bluetooth® mesh signal converter with built-in 20mA 0-10V signal output and an integrated 20A relay, enabling all devices on the 0-10V line to be broadcast controlled via Silvair Commissioning tools.
It supports Sunricher kinetic energy switches and EnOcean switches EWSSB and EWSDB, with a mesh network that extends communication up to 65 meters in typical outdoor environments, depending on field installation.
Featuring an IPEX antenna, it is UL listed under Category PAZX (Management Equipment, Energy) and UL 2043 Plenum Rated, with a 5-year warranty.
| Input | Power | 100-277VAC |
|---|---|---|
| Input | Signal | Bluetooth |
| Output, 0/1-10V | Current | Max. 20mA |
| Output, Relay | Switching Voltage | 100-277VAC |
| Output, Relay | Current | Max. 20A |
| Environment | Operating Temperature | 0℃-+40℃ |
| Environment | Relative Humidity | 8% to 80% |
| Others | Size | 82.5*55*31mm |
| Relay Ratings | ||
| Load Type | 100-277VAC Signal Converter with 20A Relay, SR-BL2421-SVVT | |
| AC General Use | 20A@250/277VAC | |
| Resistive | 18A@120VAC, 20A@277VAC | |
| Inductive | 10A@240VAC | |
| Capacitive | 8.5A@240VAC | |
| Tungsten | 2000W, 8A@250VAC | |
| Motor | 0.5 HP@120VAC, 1 HP@240VAC |
