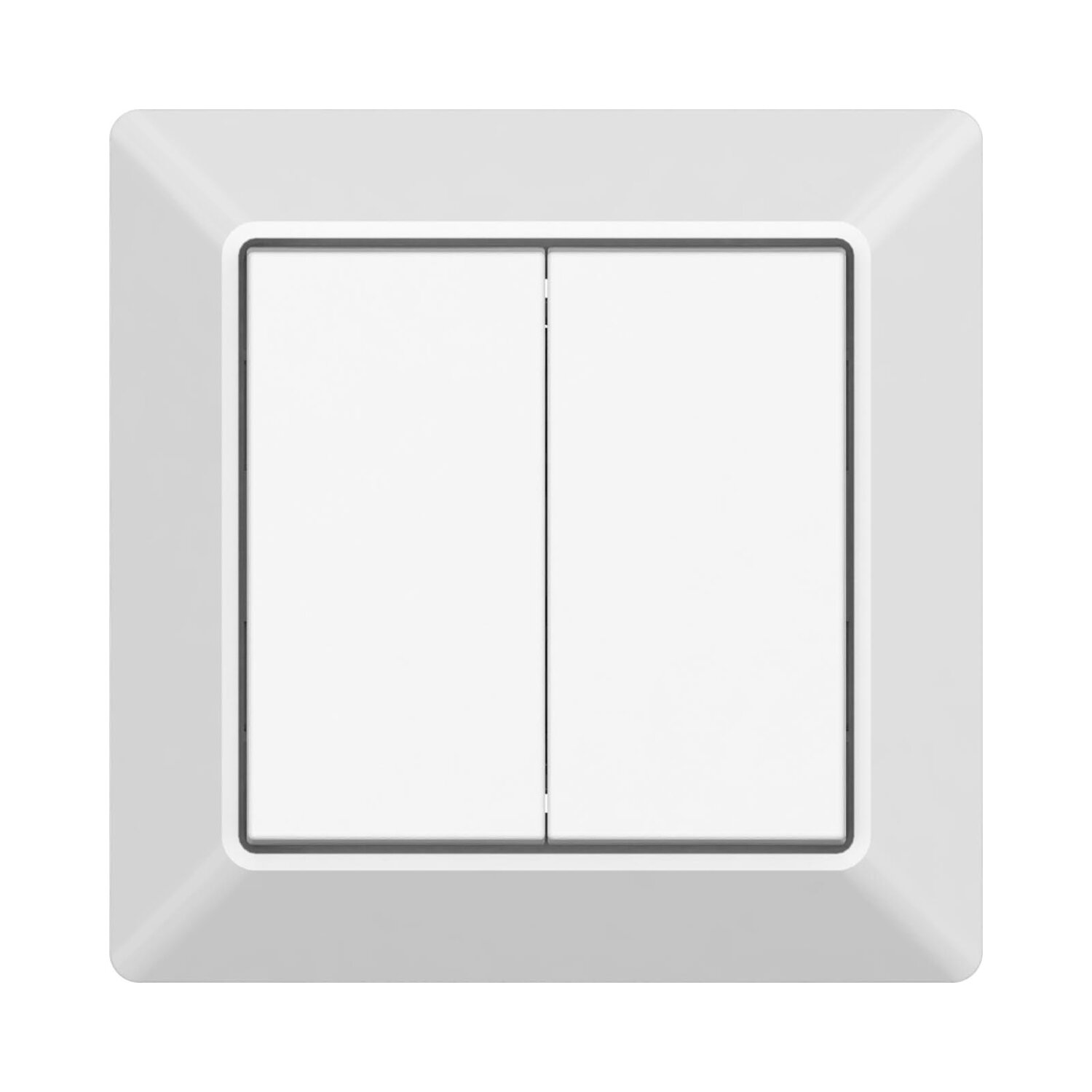

The BLE Battery Powered Push Button Switch is a versatile and energy-efficient solution designed for seamless integration into Bluetooth® Mesh networks. Powered by ultra-low consumption batteries, it boasts an impressive lifespan of over 1 million presses, ensuring long-lasting reliability. Pairing is quick and simple through a user-friendly app, and its mesh network functionality extends the control range by allowing receivers to relay signals to each other. Operating on the 2.4 GHz frequency band, the switch offers a transmission range of up to 30 meters between neighboring devices, making it ideal for a wide variety of applications. With a standard size compatible with existing EU frames, it works seamlessly with our BLE driver, controller, signal converter, and sensor products. The switch is equipped with an on-board antenna and is rated IP20 for protection against dust and water ingress. Backed by a 5-year warranty, it provides both durability and peace of mind.
| Protocol | Bluetooth®mesh |
|---|---|
| Power Supply | 3VDC(1xCR2430 Battery) |
| Transmission Frequency | 2.4GHz |
| Transmission Range(free field) | Min.30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 80.5×80.5×14.7mm |
