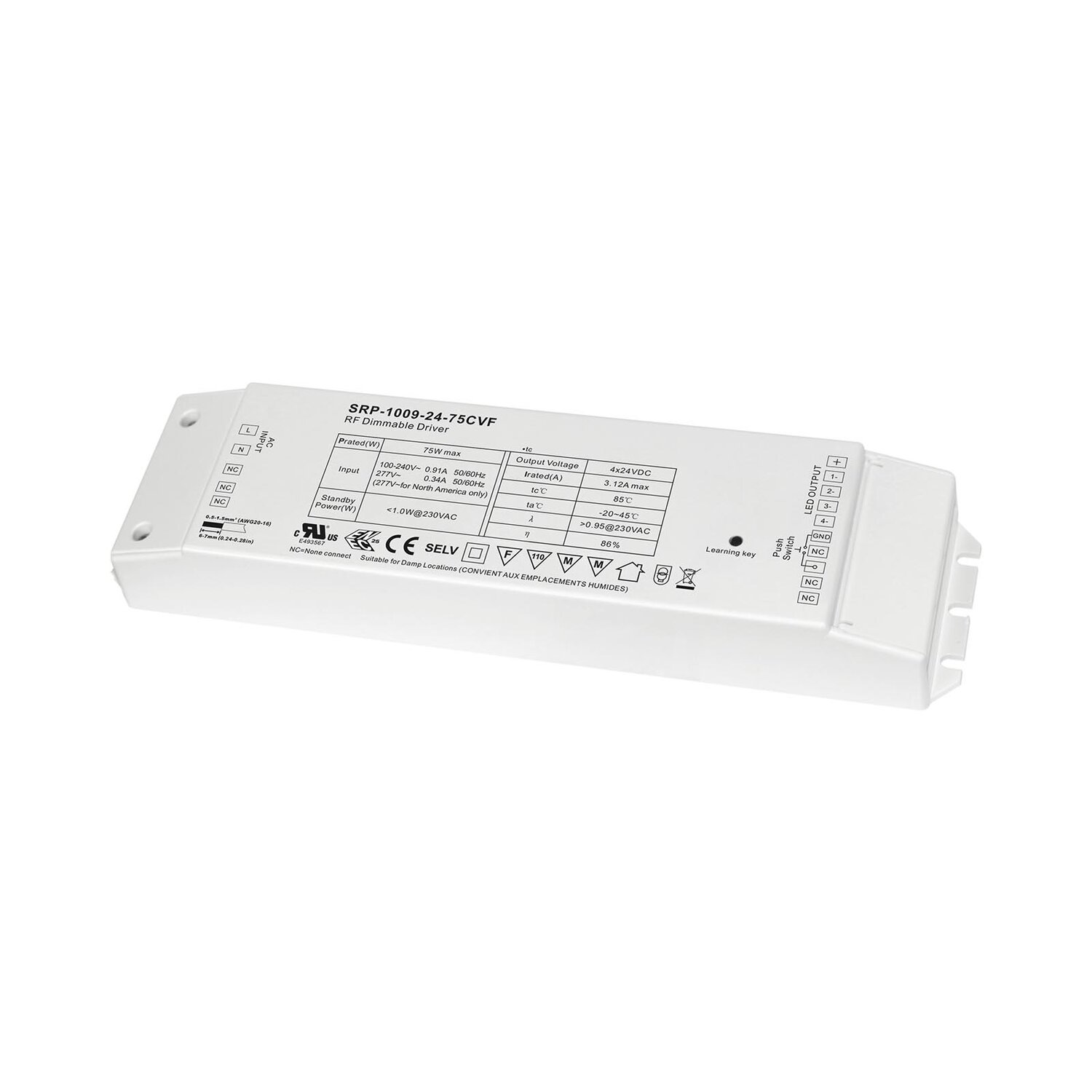

The SRP-1009-24-75CVF is a UL & ENEC approved 75W constant voltage RF LED dimmable driver with 100-277VAC wide input and 4 channels PWM output. The output voltage is available in 12VDC and 24VDC.
Compatible with a variety of perfect RF series remote controllers, the RF LED driver is able to control single color, tunable white, RGB/RGBW LED lighting. Push dim function is available while the RF dimmable driver connected with a push switch.
With over current, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
| Output | LED Channel | 4 |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 3.12A/ch, ch1+ch2+ch3+ch4=3.12A |
| Output | Voltage Tolerance | ±3% |
| Output | Rated Power | max. 75W |
| Input | Voltage Range | 100-277V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.99 @ 100VAC, > 0.96 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 86% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.9A @ 100VAC, 0.39A @ 230VAC, 0.33A@277VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 30A at 230VAC |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | < 0.5W |
| Control | Dimming Interface | RF Wireless/PUSH LV |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 80℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 187800H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 244*64*32mm (L*W*H) |
