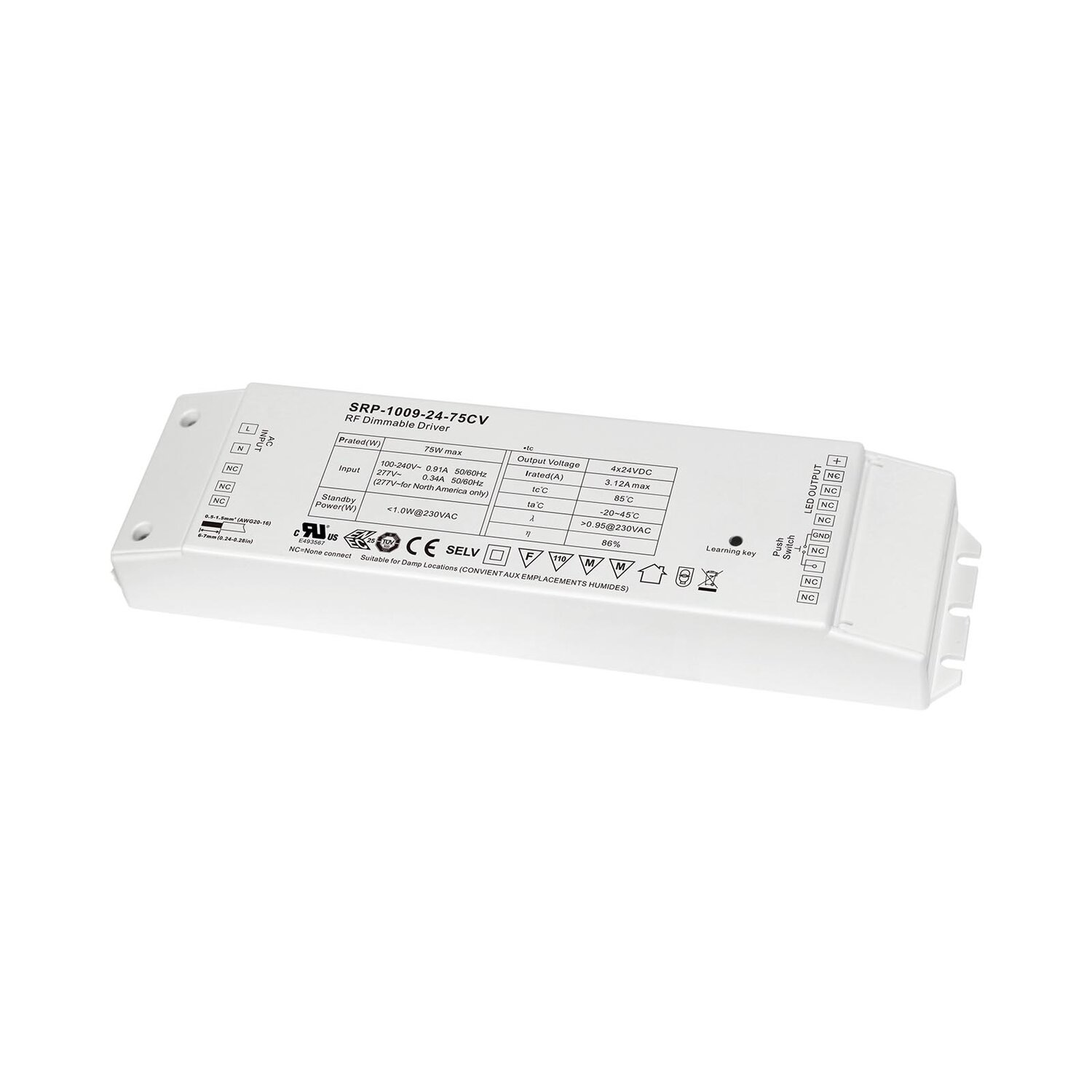

The 75W RF LED Driver (Constant Voltage) is a dimmable LED driver with RF control, offering a maximum output power of 75W. It provides a 1 channel DC 24V constant voltage output and features a class II power supply with a fully isolated plastic case, ensuring high power factor and efficiency.
This driver is designed for controlling single color LED lighting and is compatible with a variety of RF remotes. With a radio frequency range of 868/869.5/916.5/434 MHz, it is suitable for indoor LED lighting applications.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 3.12A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | max. 75W |
| Input | Voltage Range | 100-277V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.99 @ 100VAC, > 0.95 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 86% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.91A @ 100VAC, 0.39A @ 230VAC, 0.34A@277VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 2A at 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Input | Standby Power Consumption | < 1W |
| Control | Dimming Interface | RF Wireless/PUSH LV |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 187800H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 244*64*32mm (L*W*H) |
