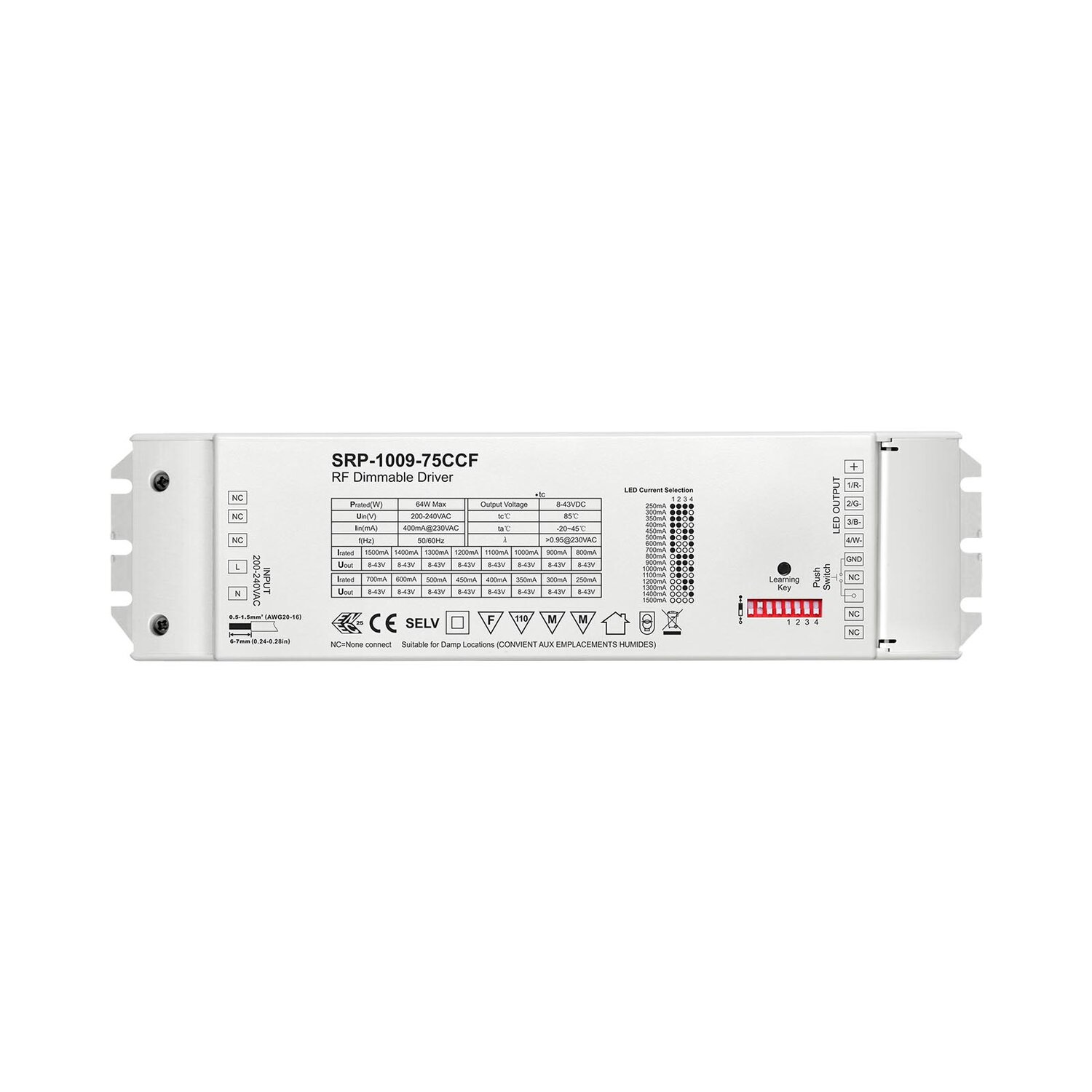

The SRP-1009-75CCF is an ENEC approved 75W constant current RF LED dimmable driver with 200-240VAC input and 4 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver.
Compatible with a variety of perfect RF series remote controllers, the RF LED driver is able to control single color, tunable white, RGB/RGBW LED lighting. Push dim function is available while the RF dimmable driver connected with a push switch.
With over voltage, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. ENEC certification ensures high safety performance of the driver to be used in Europe.
| Output | LED Channel | 4 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Output | Selectable Current | 300mA | 350mA | 400mA | 450mA | 500mA | 600mA | 700mA | 800mA |
| Output | DC Voltage Range | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V |
| Output | Selectable Current | 900mA | 1000mA | 1100mA | 1200mA | 1300mA | 1400mA | 1500mA | |
| Output | DC Voltage Range | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | |
| Output | Current Tolerance | ±3% | |||||||
| Output | Rated Power | ≤ Max. 64W/CH, CH1+CH2+CH3+CH4 75W | |||||||
| Input | Voltage Range | 200-240V AC | |||||||
| Input | Frequency Range | 50/60Hz | |||||||
| Input | Power Factor (Typ.) | > 0.9 @ 230VAC | |||||||
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |||||||
| Input | Efficiency (Typ.) | 87% @ 230VAC full load | |||||||
| Input | AC Current (Typ.) | 400mA @ 230VAC | |||||||
| Input | Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC | |||||||
| Control | Dimming Interface | RF Wireless/PUSH LV | |||||||
| Control | Dimming Range | 0.1%-100% | |||||||
| Control | Dimming Method | Pulse Width Modulation | |||||||
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Voltage | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |||||||
| Environment | Working Temp | -25℃ ~ +45℃ | |||||||
| Environment | Max. Case Temp | 80℃ | |||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |||||||
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |||||||
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |||||||
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |||||||
| Others | MTBF | 187900H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Others | Dimension | 244*64*32mm (L*W*H) |
