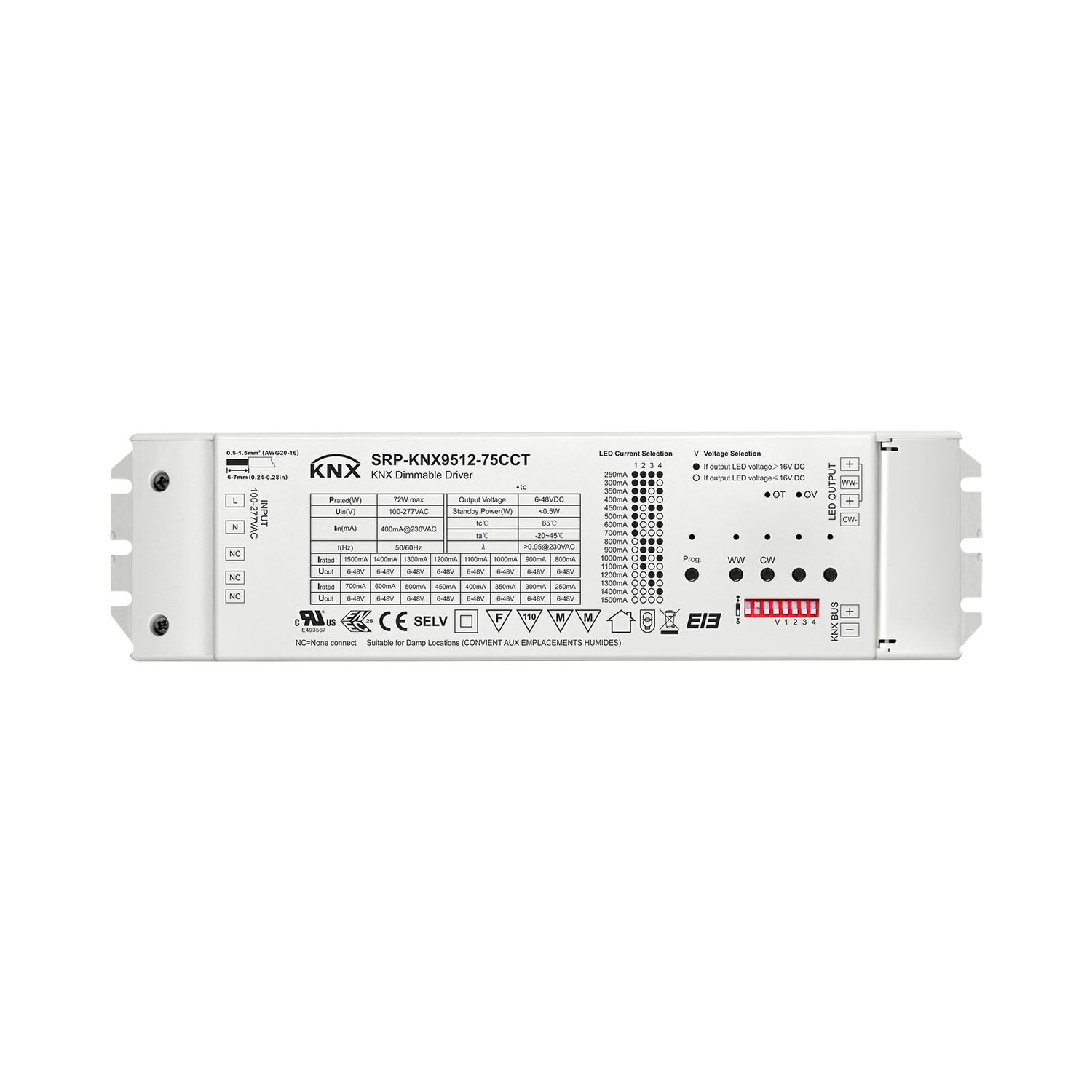

The 75W KNX LED Driver is a dimmable constant current driver with a 100-277VAC input voltage and a maximum output power of 75W, featuring two channels with output current adjustable from 250mA to 1500mA via DIP switches, a Class II fully isolated plastic case, high power factor and efficiency, built-in KNX interface with KNX/EIB bus connection terminal supporting physical and group addressing, designed to control dual color LED lighting with a dimming range of 0.1% to 100%, offering relative and absolute dimming control, scene control, and on/off switching, and compatible with commissioning and project design using ETS4.
| Output | Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 600mA | 700mA |
|---|---|---|---|---|---|---|---|---|---|
| Output | DC Voltage Range | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V |
| Output | Selectable Current | 800mA | 900mA | 1000mA | 1100mA | 1200mA | 1300mA | 1400mA | 1500mA |
| Output | DC Voltage Range | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V |
| Output | Rated Power | Max. 72W/CH, CH1+CH2 < 75W | |||||||
| Input | Voltage Range | 100-277V AC | |||||||
| Input | Bus Operating voltage | 21-30V DC, via the KNX/EIB bus | |||||||
| Input | Frequency | 50/60Hz | |||||||
| Input | Power Factor (Typ.) | >0.9 | |||||||
| Input | Efficiency (Typ.) | 90% @ 230VAC | |||||||
| Input | Input Current | 0.5A @ 230VAC | |||||||
| Input | Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC | |||||||
| Connections | Inputs | Using screw connection terminal | |||||||
| Connections | Outputs | Using screwless connection terminal | |||||||
| Connections | EIB/KNX | EIB bus connection terminal | |||||||
| Operation and display | Button and red LED | For assigning the physical address | |||||||
| Operation and display | Green LED flashing | Indicate the application layer running normally | |||||||
| Operation and display | LEDs for Output | Indicate output status per channel, LED on mean the channel has output, LED off mean the channel has not output | |||||||
| Operation and display | Manual buttons | Switch via a short operation, relative dimming via a long operation | |||||||
| Operation and display | OT. LED | Indicate over-temperature, >70℃ | |||||||
| Operation and display | OV. LED | Indicate over voltage, >40V DC | |||||||
| Protection | Short Circuit | Yes | |||||||
| Protection | Over Voltage | Yes | |||||||
| Protection | Over Temperature | Yes | |||||||
| Environment | Working Temp | -20℃ ~ +45℃ | |||||||
| Environment | Max. Case Temp | 85℃ | |||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |||||||
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |||||||
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |||||||
| Others | MTBF | 191700H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Others | Dimension | 244*64*32mm (L*W*H) |
