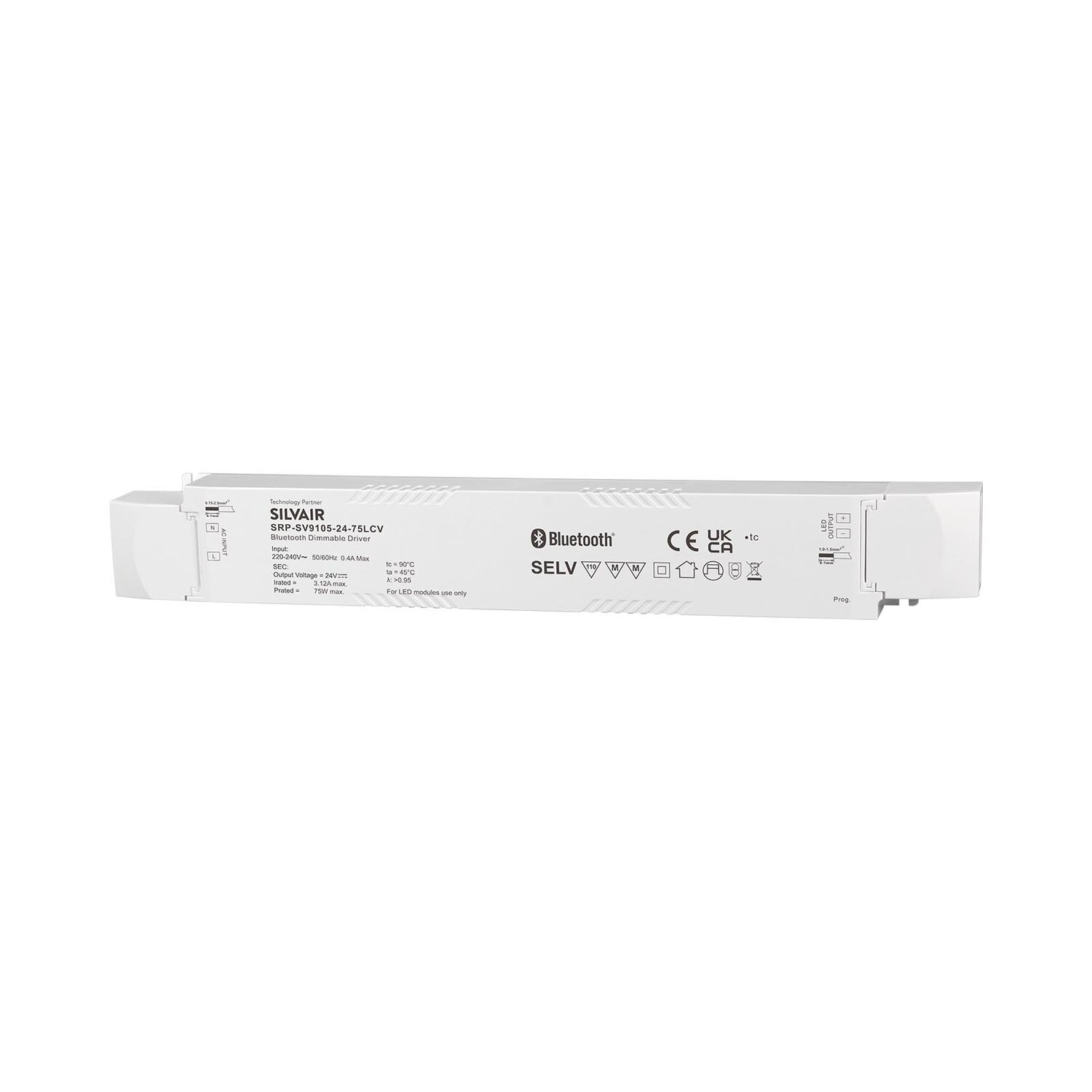

This compact LED driver supports Bluetooth® mesh networking for long-range, stable wireless control. It features a Class II fully isolated plastic case, built-in active PFC, high efficiency (>89%), and low standby power (<0.5W). Easily paired via the Silvair mobile app, it works seamlessly with kinetic energy switches and EnOcean switches (EWSSB, EWSDB). Typical indoor range is 20–25 meters with an onboard antenna. Built-in protection against over-temperature, overload, and over-voltage ensures safe and reliable operation.
| Output | LED Channel | 1 Channel |
|---|---|---|
| Output | DC Voltage | 24VDC |
| Output | Current | Max.3.125A |
| Output | Current Accuracy | ±3% |
| Output | Rated Power | Max.75W |
| Input | Voltage Range | 220-240VAC |
| Input | Absolute Voltage Range | 50/60Hz |
| Input | Frequency Range | >0.95@230VAC |
| Input | Power Factor(Typ.) | THD ≤ 14%(@ full load / 230VAC) |
| Input | Total Harmonic Distortion | 89%@230VAC full load |
| Input | Efficiency (Typ.) | 0.37A @ 230VAC |
| Input | AC Current(Typ.) | COLD START Max.35A@ 230VAC |
| Input | Inrush Current (Typ.) | <0.5mA/230VAC |
| Input | Leakage Current | <0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Bluetooth |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Control | Dimming Curve | Linear/Logarithmic optional |
| Protection | Short Circuit | Yes, remove the fault conditions and re-power the device |
| Protection | Over Current | Yes, remove the fault conditions and re-power the device |
| Protection | Over Temperature | Yes, remove the fault conditions and re-power the device |
| Environment | Working Temp. | -25℃~+45℃ |
| Environment | Max. Case Temp. | TC=85°C (Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃~+80℃, 10%~95%RH |
| Safety & EMC | Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2 Class C, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN614547 |
| Others | MTBF | 191500H, MIL-HDBK-217F @ 230VAC full load and 25°C ambient temperature |
| Others | Dimension | 306.6*43*30mm (L*W*H) |
| Others | Warranty | 5 Years |
