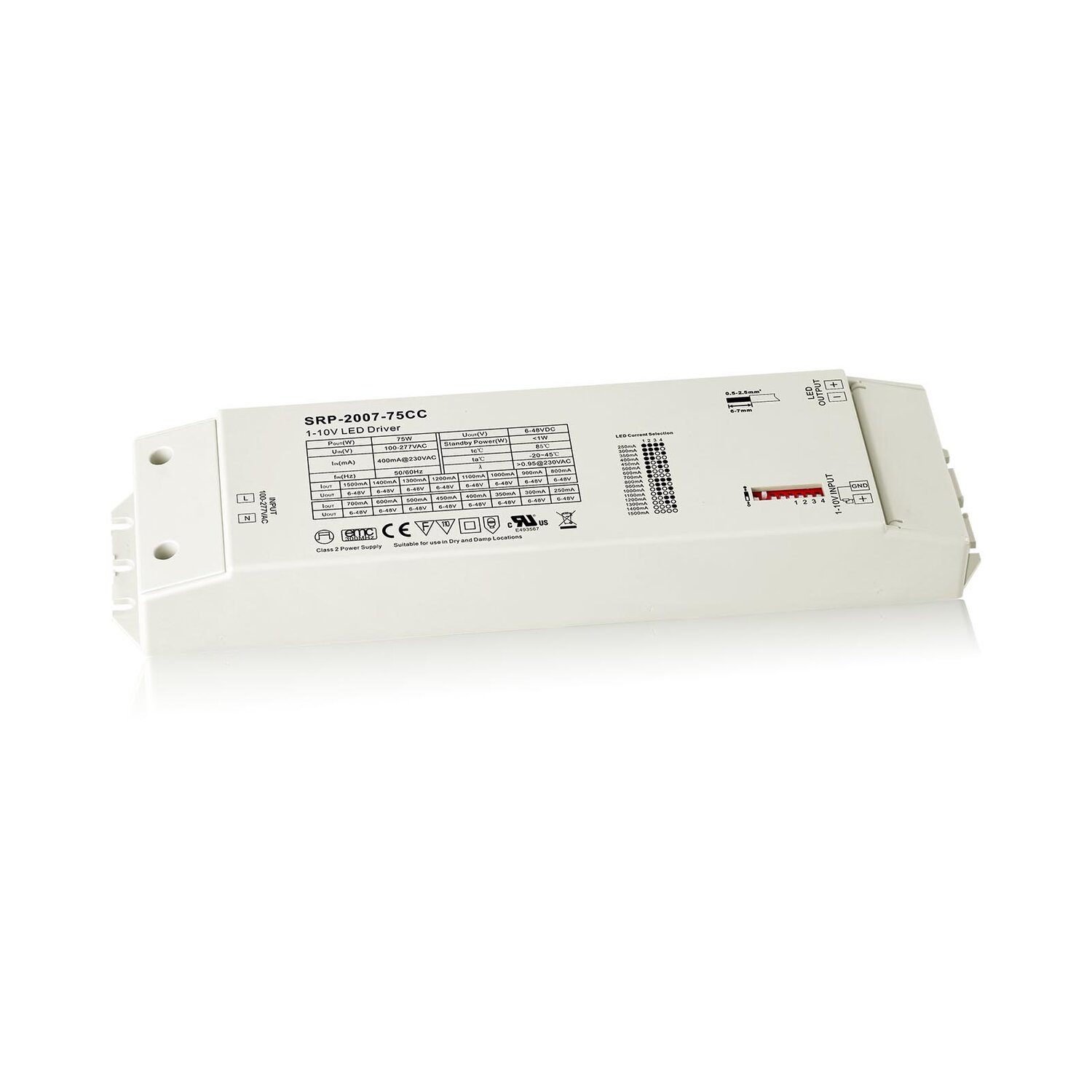

The 75W 0/1-10V LED Driver (Constant Current) features a 1-channel constant current output with selectable current levels ranging from 250mA to 1500mA using DIP switches. It is equipped with a Class II power supply and a fully isolated plastic case, along with a built-in active PFC function that ensures a power factor greater than 0.96 and an efficiency exceeding 87%. The driver consumes less than 0.5W in standby mode and includes a built-in 0/1-10V dimming interface, compliant with Safety Extra Low Voltage standards. It offers protection against short circuits, overload, and over-temperature, making it suitable for indoor LED lighting applications.
| Output | LED Channel | 1 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 600mA | 700mA | |
| DC Voltage Range | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | |
| Selectable Current | 800mA | 900mA | 1000mA | 1100mA | 1200mA | 1300mA | 1400mMA | 1500mA | |
| DC Voltage Range | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | 6-48V | |
| Current Tolerance | ±3% | ||||||||
| Rated Power | Max.72W | ||||||||
| Input | Voltage Range | 100-277V AC | |||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor (Typ.) | > 0.99 @ 100VAC, > 0.96 @ 230VAC | ||||||||
| Total Harmonic Distortion | THD < 15% (@ full load /230VAC) | ||||||||
| Efficiency (Typ.) | 87% @ 230VAC full load | ||||||||
| AC Current (Typ.) | 0.9A @ 100VAC, 0.39A @ 230VAC, 0.33A@277VAC | ||||||||
| Leakage Current | < 0.5mA/230VAC | ||||||||
| Standby Power Consumption | < 0.5W | ||||||||
| Control | Dimming Interface | 0/1-10V | |||||||
| Dimming Range | 0.1%-100% | ||||||||
| Dimming Method | Pulse Width Modulation | ||||||||
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed | |||||||
| Over Voltage | Yes, recovers automatically after fault condition is removed | ||||||||
| Over Temperature | Yes, recovers automatically after fault condition is removed | ||||||||
| Environment | Working Temp | -25℃ ~ +45℃ | |||||||
| Max. Case Temp | 85℃(Ta=”45℃”) | ||||||||
| Working Humidity | 10% ~ 5% RH non-condensing | ||||||||
| Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | ||||||||
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Withstand Voltage | I/P-O/P: 3.75KVAC | ||||||||
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC/ 25℃ / 70% RH | ||||||||
| EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | ||||||||
| EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | ||||||||
| Others | MTBF | 191700H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Dimension | 244*64*32mm (L*W*H) | ||||||||
