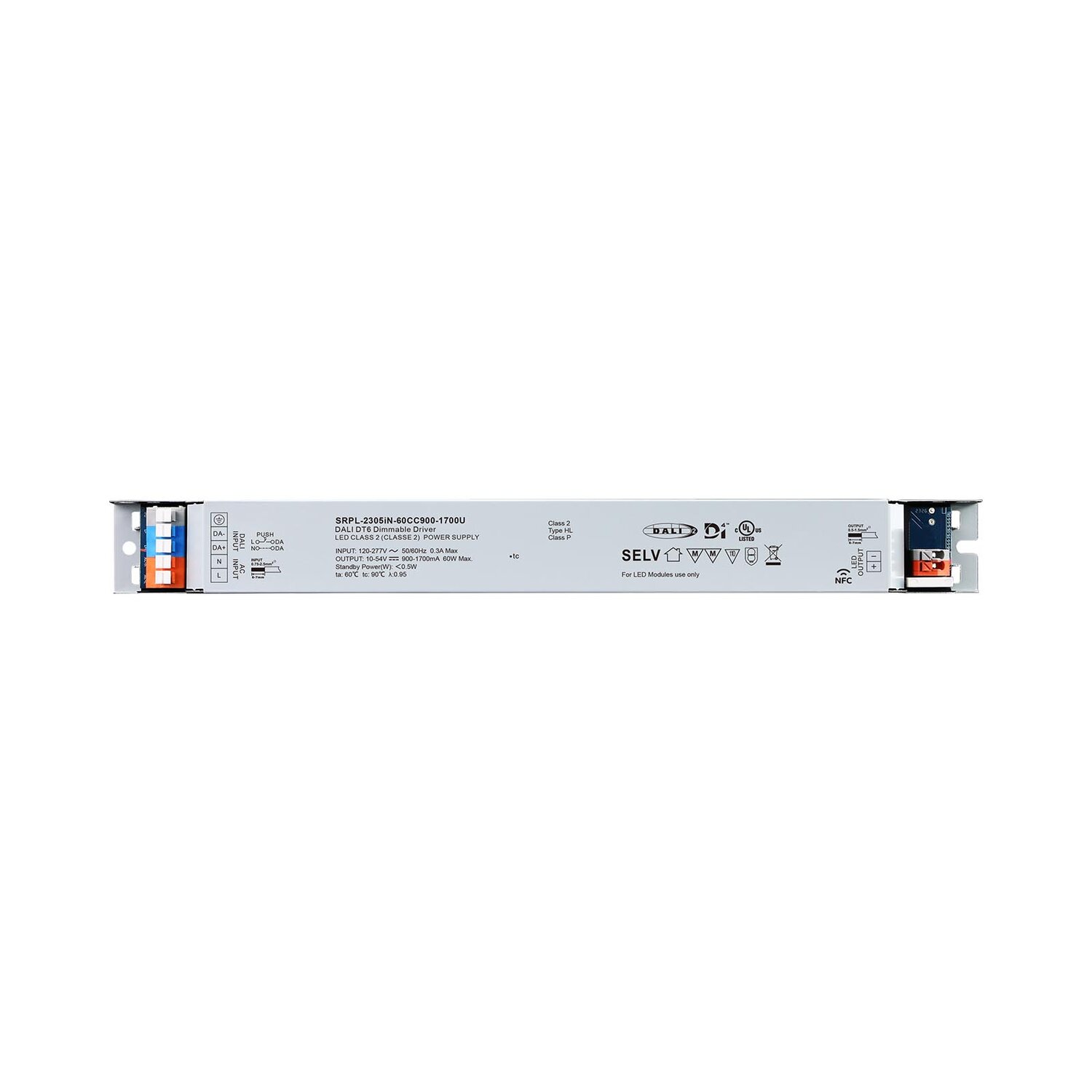

The 60W DALI DT6 NFC Enabled LED Driver is a constant current dimmable LED driver with a linear metal housing, featuring a built-in DALI-2 interface as a DT6 device, offering output current selectable from 900 to 1700mA via NFC programming with a minimum current gear of 0.1mA, supporting DALI address, group, and scene settings through NFC, designed with Class II isolated power supply for high power factor and efficiency, enabling switching and dimming of LED lighting luminaires with amplitude and CCR dimming for smooth and deep dimming, compatible with universal DALI masters supporting DT6 commands, and compliant with DALI-251/252/253 standards.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 10-54V, Max.60V |
| Output | Current | 900-1700mA via NFC setting; Min.current gear lower to 0.1mA |
| Output | Current Accuracy | ±3%@ full load |
| Output | Rated Power | Max. 60W |
| Input | Voltage Range | 120-277VAC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.95 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 10% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞88% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.3A Max |
| Input | Inrush Current (Typ.) | Max. 12.46A at 230VAC; 128μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:2.5KV |
| Control | Dimming Interface | DALI Device Type 6 (DALI consumption < 2mA)/ AC Push |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +60℃ |
| Environment | Max. Case Temp | TC=90℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 285x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
