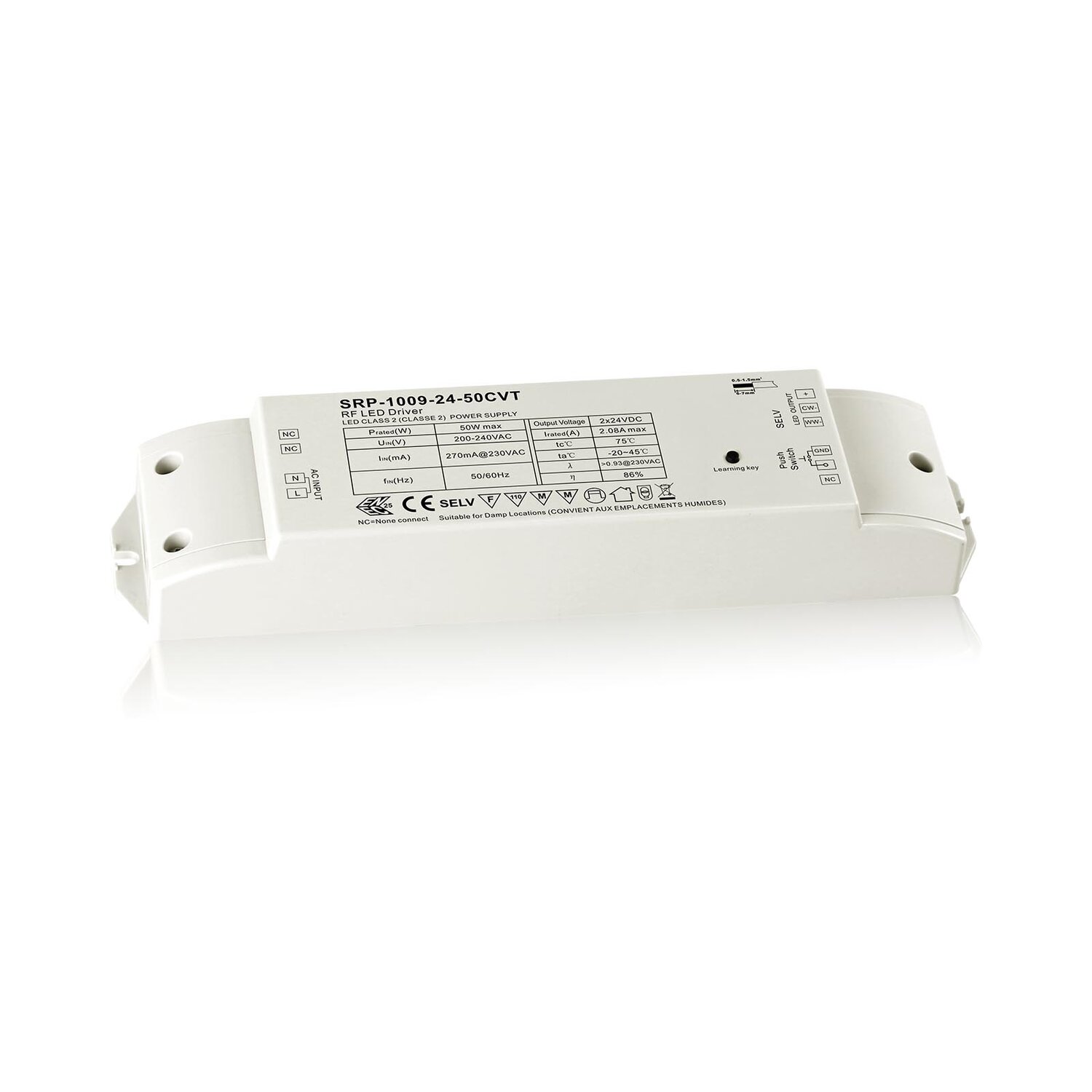

SRP-1009-24-50CVT is a 50W Dimmable Constant Voltage LED Driver with 2 channels 24VDC output, 12VDC version is also available, which enables it to be suitable for CCT LED lights with different voltage. It is designed with 200-240VAC input.
Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.
The constant voltage driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices.
Plus it has push dim function while being connected with a push switch.
| Output | DC Voltage | 12V DC | 24V DC |
|---|---|---|---|
| Output | Max. Current | 4.16A/ch max., ch1+ch2=4.16A | 2.08A/ch max., ch1+ch2=2.08A |
| Output | Rated Power | max. 50W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency | 50/60Hz | |
| Input | Power Factor (Typ.) | >0.9 | |
| Input | Efficiency (Typ.) | 85% @ 230VAC | 88% @ 230VAC |
| Input | Input Current (Typ.) | 0.27A @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START Max. 2A at 230VAC | |
| Protection | Over Current | Yes, auto recovery after fault removed | |
| Protection | Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃ | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 190500H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |
| Others | Dimension | 210*50*32mm (L*W*H) |
