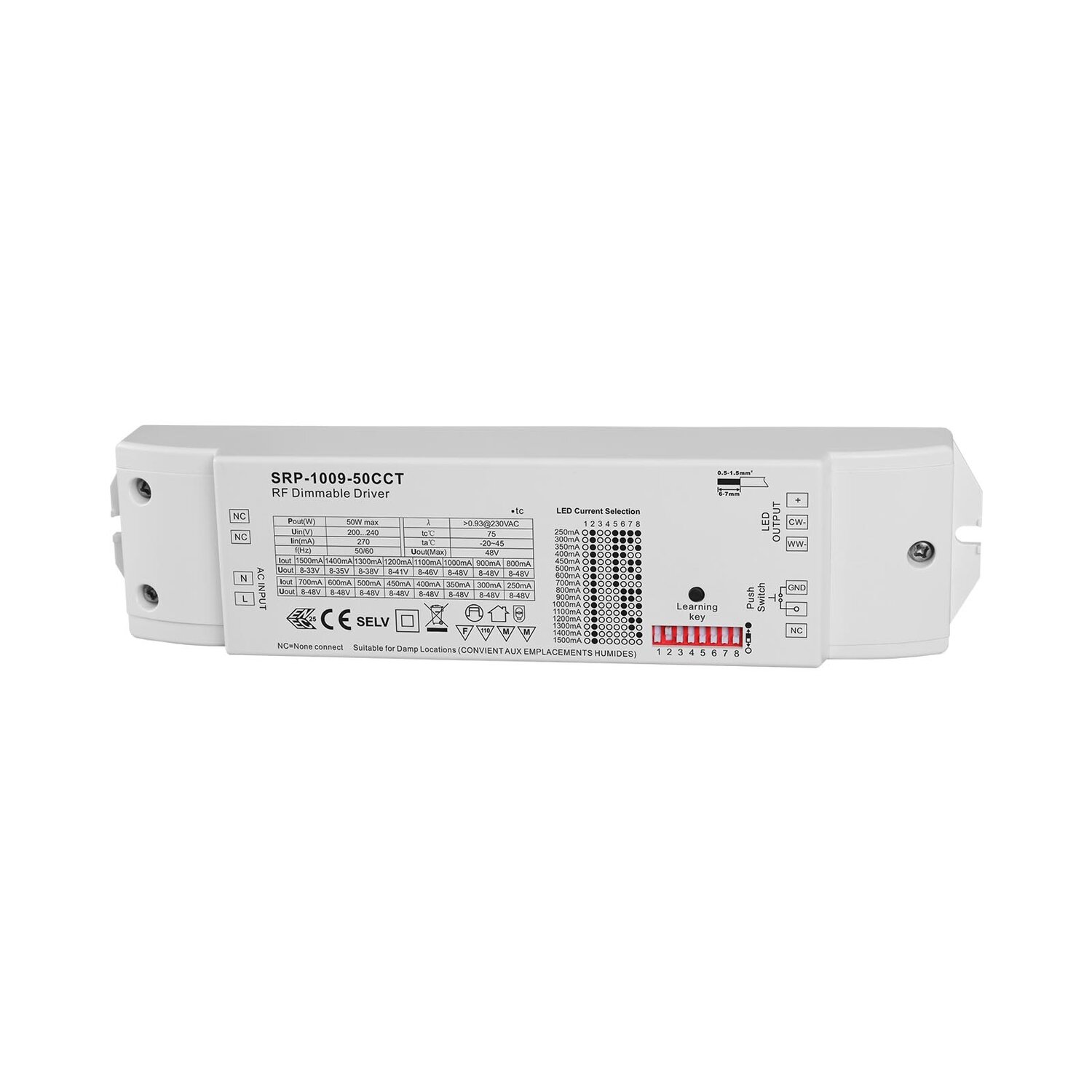

SRP-1009-50CCT is a Dimmable 50w LED Driver with 2 channels constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for CCT LED lights with different current. It is designed with 200-240VAC input.
Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.
The LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices.
Plus it has push dim function while being connected with a push switch.
| Output | Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 600mA | 700mA |
|---|---|---|---|---|---|---|---|---|---|
| Output | DC Voltage Range | 8-48V | 8-48V | 8-48V | 8-48V | 8-48V | 8-48V | 8-48V | 8-48V |
| Output | Selectable Current | 800mA | 900mA | 1000mA | 1100mA | 1200mA | 1300mA | 1400mA | 1500mA |
| Output | DC Voltage Range | 8-48V | 8-48V | 8-48V | 8-46V | 8-41V | 8-38V | 8-35V | 8-33V |
| Output | Rated Power | 50W | |||||||
| Input | Voltage Range | 200-240V AC | |||||||
| Input | Frequency | 50/60Hz | |||||||
| Input | Power Factor (Typ.) | >0.9 | |||||||
| Input | Efficiency (Typ.) | 87% @ 230VAC | |||||||
| Input | Inrush Current (Typ.) | COLD START Max. 2A at 230VAC | |||||||
| Input | Input Current (Typ.) | 0.27A @ 230VAC | |||||||
| Protection | Short Circuit | Yes, auto recovery after fault removed | |||||||
| Protection | Over Voltage | Yes, auto recovery after fault removed | |||||||
| Protection | Over Temperature | Yes, auto recovery after fault removed | |||||||
| Environment | Working Temp | -20℃ ~ +45℃ | |||||||
| Environment | Max. Case Temp | 85℃ | |||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |||||||
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |||||||
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |||||||
| Others | MTBF | 190500H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Others | Dimension | 210*50*32mm (L*W*H) |
