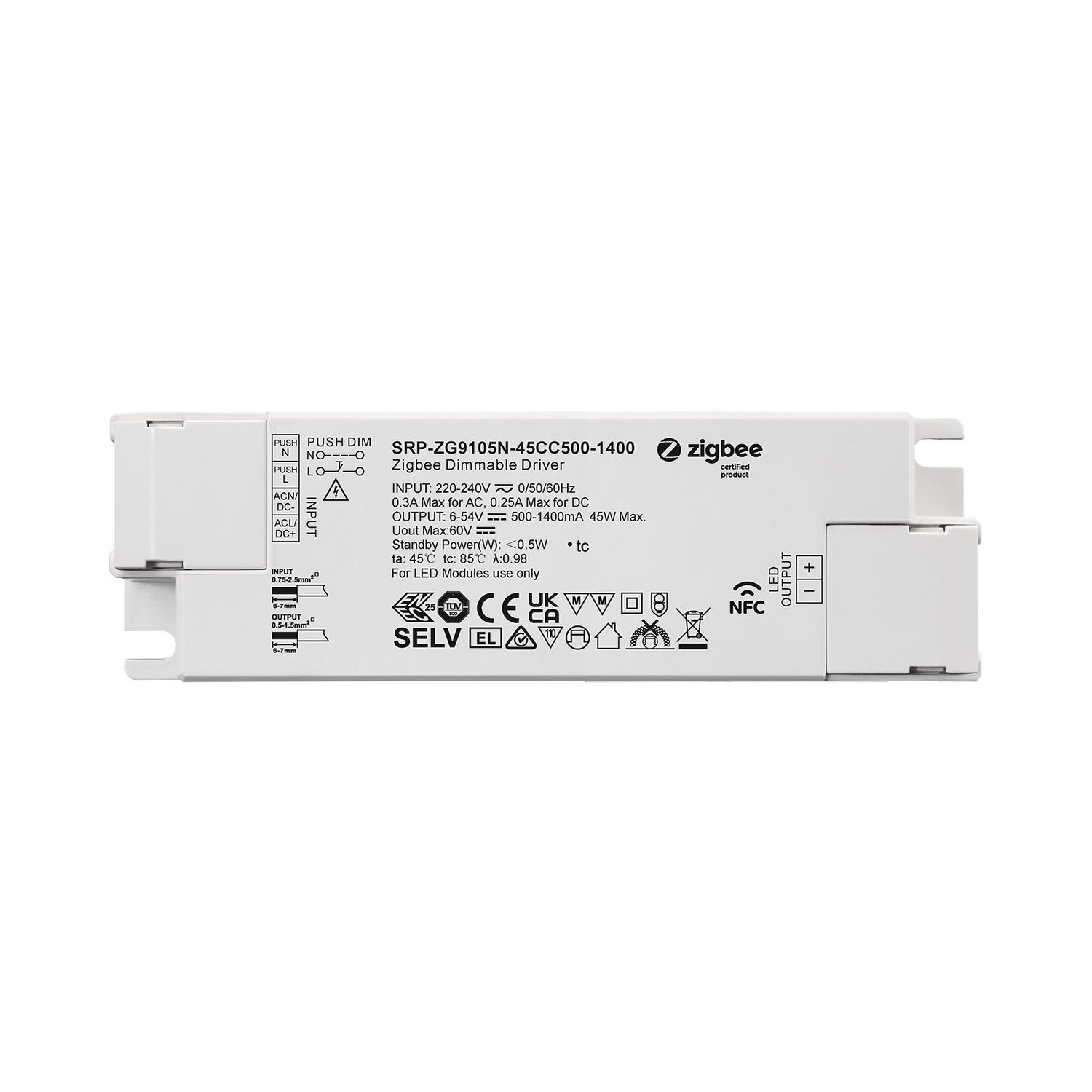

The 45W 1CH Zigbee NFC Enabled LED Driver is a dimmable LED driver based on the Zigbee 3.0 protocol, offering a maximum output power of 45W. It features selectable current settings ranging from 500mA to 1400mA via an NFC program tool, with the minimum current gear adjustable to 0.1mA. The driver supports various dimming functions, including dimming curve, power-on state, soft start, and soft off, all adjustable via the NFC program tool. With a Class II power supply and a fully isolated plastic case, it ensures high power factor and efficiency. The driver also supports PUSH DIM function, enabling the control of on/off and brightness of LED lighting luminaires, as well as amplitude/CCR dimming for smooth, deep dimming. It is a Zigbee end device that supports Touchlink commissioning, allowing direct pairing with a compatible Zigbee remote via Touchlink. It also supports find and bind mode for binding ZigBee remotes and can bind up to 20 Zigbee green power switches. The driver is compatible with universal Zigbee gateway products and is suitable for indoor LED lighting applications.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 6-54V, Max.60V |
| Output | Current | 500-1400mA via NFC setting; Min.current gear lower to 0.1mA,Default 900mA |
| Output | Current Accuracy | ±3%( ±1%@Certain full load) @ full load |
| Output | Rated Power | Max. 45W |
| Input | Voltage Range | 220-240VAC/220-240VDC |
| Input | Absolute Voltage Range | 196-264VAC/196-264VDC |
| Input | Frequency Range | 0/50/60Hz |
| Input | Power Factor (Typ.) | > 0.98 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 10% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞89% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.3A Max |
| Input | Inrush Current (Typ.) | Max. 8.56A at 230VAC; 88μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Zigbee |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, remove the fault conditions and re-power the device |
| Protection | Over Current | Yes, remove the fault conditions and re-power the device |
| Protection | Over Temperature | Yes, remove the fault conditions and re-power the device |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 145x45x28mm (L*W*H) |
| Others | Warranty | 5 Years |
